AIM-65
8寸英特尔工业平板电脑

联络我们
回上层
更多图片
  • Windows 10 IoT(Intel Atom处理器)& Andriod 6.0
  • 8寸WUXGA，电容式多点触控， 康宁GG3玻璃适用于工业环境
  • 无缝通信，包括WLAN、BT、NFC、3G/4G LTE并对于移动应用更灵活
  • 可选扩展模块：包括1D/2D条码扫描仪，MSR，RFID读取器等，客制化所需模块
  • 可选底座：包含车载底座、桌面底座和VESA底座

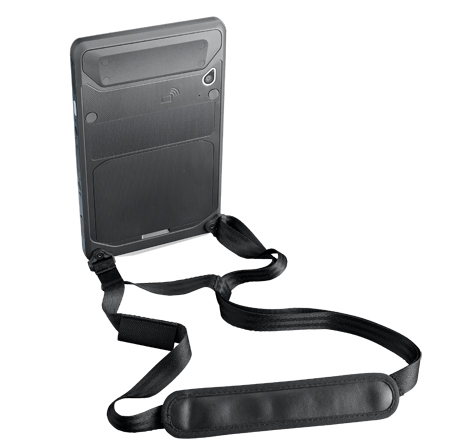

  • 可选配件：包含触控笔，手带，肩带等
产品型录 (PDF)
技术资料下载
8寸英特尔工业平板电脑

规格 (5) 下载规格表

  • Part Number
  • 相关讯息
core
  • OS
  • memory
  • Storage
Core
  • Processor
  • Memory
  • Operating System
Camera
  • Front
  • Rear
Wireless Communication
  • GNSS
  • WWAN
  • NFC
  • WLAN/Bluetooth
Camera
  • Front
  • Rear
Display
  • Brightness (cd/m2)
  • Resolution
  • Type
Environment
  • Certifications
  • IP Rating
  • Operating Temperature
  • Safety
  • Storage Temperature
GNSS
  • Satellite System
I/O Interface
  • Button
  • Extended I/O Port
  • LED
  • Standard I/O Port
Mechanical
  • Dimensions (W x H x D)
  • Weight
Multimedia
  • Microphone
  • Speaker
Power System
  • Battery
  • Voltage Input
Sensors
  • _
Storage
  • eMMC
  • SD card
Touchscreen
  • Construction
  • Type

core

  • OS

    AIM-65AT-22304000 Win 10
    AIM-65AT-22307000 Win 10
    AIM-65AT-24307000 -
    AIM-65AT-23307000 Android 6.0
    AIM-65AT-23304000 Android 6.0

  • memory

    AIM-65AT-22304000 4GB
    AIM-65AT-22307000 4GB
    AIM-65AT-24307000 -
    AIM-65AT-23307000 4GB
    AIM-65AT-23304000 4GB

  • Storage

    AIM-65AT-22304000 64GB
    AIM-65AT-22307000 64GB
    AIM-65AT-24307000 -
    AIM-65AT-23307000 64GB
    AIM-65AT-23304000 64GB

Core

  • Processor

    AIM-65AT-22304000 Intel Atom x5-Z8350 (4 core 1.44 GHz)
    AIM-65AT-22307000 Intel Atom x5-Z8350 (4 core 1.44 GHz)
    AIM-65AT-24307000 Intel Atom x5-Z8350 (4 core 1.44 GHz)
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Memory

    AIM-65AT-22304000 4 GB
    AIM-65AT-22307000 4 GB
    AIM-65AT-24307000 4 GB
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Operating System

    AIM-65AT-22304000 Windows 10 IoT Enterprise
    AIM-65AT-22307000 Windows 10 IoT Enterprise
    AIM-65AT-24307000 Windows 10 IoT LTSC (2019)
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Camera

  • Front

    AIM-65AT-22304000 2MP Fixed Focus
    AIM-65AT-22307000 2MP Fixed Focus
    AIM-65AT-24307000 2MP Fixed Focus
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Rear

    AIM-65AT-22304000 5MP Auto Focus with LED Flash
    AIM-65AT-22307000 5MP Auto Focus with LED Flash
    AIM-65AT-24307000 5MP Auto Focus with LED Flash
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Wireless Communication

  • GNSS

    AIM-65AT-22304000 Yes
    AIM-65AT-22307000 No
    AIM-65AT-24307000 -
    AIM-65AT-23307000 No
    AIM-65AT-23304000 Yes

  • WWAN

    AIM-65AT-22304000 Huawei ME936 for US and EU LTE: B1, B2, B3, B4, B5, B7, B8, B13, B17, B20
    AIM-65AT-22307000 Huawei ME936 for US and EU LTE: B1, B2, B3, B4, B5, B7, B8, B13, B17, B20
    AIM-65AT-24307000 Huawei ME936 for US and EU LTE: B1, B2, B3, B4, B5, B7, B8, B13, B17, B20
    AIM-65AT-23307000 No
    AIM-65AT-23304000 Yes

  • NFC

    AIM-65AT-22304000 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
    AIM-65AT-22307000 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
    AIM-65AT-24307000 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
    AIM-65AT-23307000 Yes
    AIM-65AT-23304000 Yes

  • WLAN/Bluetooth

    AIM-65AT-22304000 IEEE 802.11 b/g/n Bluetooth V4.0 Class 2
    AIM-65AT-22307000 IEEE 802.11 b/g/n Bluetooth V4.0 Class 2
    AIM-65AT-24307000 IEEE 802.11 b/g/n Bluetooth V4.0 Class 2
    AIM-65AT-23307000 Yes
    AIM-65AT-23304000 Yes

Camera

  • Front

    AIM-65AT-22304000 Yes
    AIM-65AT-22307000 Yes
    AIM-65AT-24307000 -
    AIM-65AT-23307000 Yes
    AIM-65AT-23304000 Yes

  • Rear

    AIM-65AT-22304000 Yes
    AIM-65AT-22307000 Yes
    AIM-65AT-24307000 -
    AIM-65AT-23307000 Yes
    AIM-65AT-23304000 Yes

Display

  • Brightness (cd/m2)

    AIM-65AT-22304000 400cd/m2
    AIM-65AT-22307000 400cd/m2
    AIM-65AT-24307000 400cd/m2
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Resolution

    AIM-65AT-22304000 WUXGA 1200x1920
    AIM-65AT-22307000 WUXGA 1200x1920
    AIM-65AT-24307000 WUXGA 1200x1920
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Type

    AIM-65AT-22304000 8" IPS LCD
    AIM-65AT-22307000 8" IPS LCD
    AIM-65AT-24307000 8" IPS LCD
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Environment

  • Certifications

    AIM-65AT-22304000 CE/FCC/CCC
    AIM-65AT-22307000 CE/FCC/CCC
    AIM-65AT-24307000 CE/FCC/CCC
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • IP Rating

    AIM-65AT-22304000 IP65
    AIM-65AT-22307000 IP65
    AIM-65AT-24307000 IP65
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Operating Temperature

    AIM-65AT-22304000 -10 ~ 50° C (Charging 0 ~ 40° C for battery protection)
    AIM-65AT-22307000 -10 ~ 50° C (Charging 0 ~ 40° C for battery protection)
    AIM-65AT-24307000 -10 ~ 50° C (Charging 0 ~ 40° C for battery protection)
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Safety

    AIM-65AT-22304000 UL/CB/LVD/CCC/BSMI
    AIM-65AT-22307000 UL/CB/LVD/CCC/BSMI
    AIM-65AT-24307000 UL/CB/LVD/CCC/BSMI
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Storage Temperature

    AIM-65AT-22304000 -20° C ~ 60° C
    AIM-65AT-22307000 -20° C ~ 60° C
    AIM-65AT-24307000 -20° C ~ 60° C
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

GNSS

  • Satellite System

    AIM-65AT-22304000 GPS/GLONASS
    AIM-65AT-22307000 GPS/GLONASS
    AIM-65AT-24307000 GPS/GLONASS
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

I/O Interface

  • Button

    AIM-65AT-22304000 x1 Power Button, x2 Volume Control Button (One is programmable), x1 Hotkey (Default is barcode scanner trigger)
    AIM-65AT-22307000 x1 Power Button, x2 Volume Control Button (One is programmable), x1 Hotkey (Default is barcode scanner trigger)
    AIM-65AT-24307000 x1 Power Button, x2 Volume Control Button (One is programmable), x1 Hotkey (Default is barcode scanner trigger)
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Extended I/O Port

    AIM-65AT-22304000 x1 AIM Extension 14 Pin Pogo Connector: x1 USB 2.0, x1 UART 2-wire, Power 5V/1A, x1 AIM Dock 16 Pin Pogo Connector: x1 USB 3.0, Power 9V
    AIM-65AT-22307000 x1 AIM Extension 14 Pin Pogo Connector: x1 USB 2.0, x1 UART 2-wire, Power 5V/1A, x1 AIM Dock 16 Pin Pogo Connector: x1 USB 3.0, Power 9V
    AIM-65AT-24307000 x1 AIM Extension 14 Pin Pogo Connector: x1 USB 2.0, x1 UART 2-wire, Power 5V/1A, x1 AIM Dock 16 Pin Pogo Connector: x1 USB 3.0, Power 9V
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • LED

    AIM-65AT-22304000 x1 for Power and Battery Status
    AIM-65AT-22307000 x1 for Power and Battery Status
    AIM-65AT-24307000 x1 for Power and Battery Status
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Standard I/O Port

    AIM-65AT-22304000 x1 Micro HDMI x1 Micro USB 2.0 (Charging) x1 Micro SIM
    AIM-65AT-22307000 x1 Micro HDMI x1 Micro USB 2.0 (Charging) x1 Micro SIM
    AIM-65AT-24307000 x1 Micro HDMI x1 Micro USB 2.0 (Charging) x1 Micro SIM
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Mechanical

  • Dimensions (W x H x D)

    AIM-65AT-22304000 142 x 240 x 14.5 mm
    AIM-65AT-22307000 142 x 240 x 14.5 mm
    AIM-65AT-24307000 142 x 240 x 14.5 mm
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Weight

    AIM-65AT-22304000 600g
    AIM-65AT-22307000 600g
    AIM-65AT-24307000 600g
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Multimedia

  • Microphone

    AIM-65AT-22304000 2 x Internal Microphone for Noise Suppression
    AIM-65AT-22307000 2 x Internal Microphone for Noise Suppression
    AIM-65AT-24307000 2 x Internal Microphone for Noise Suppression
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Speaker

    AIM-65AT-22304000 1 x Internal 1W Speaker
    AIM-65AT-22307000 1 x Internal 1W Speaker
    AIM-65AT-24307000 1 x Internal 1W Speaker
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Power System

  • Battery

    AIM-65AT-22304000 Swappable Battery (Hard Pack): 1S2P 3.8V 18.6W
    AIM-65AT-22307000 Swappable Battery (Hard Pack): 1S2P 3.8V 18.6W
    AIM-65AT-24307000 Swappable Battery (Hard Pack): 1S2P 3.8V 18.6W
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Voltage Input

    AIM-65AT-22304000 Micro USB: 5V/3A, Dock Pogo: 9V/2A
    AIM-65AT-22307000 Micro USB: 5V/3A, Dock Pogo: 9V/2A
    AIM-65AT-24307000 Micro USB: 5V/3A, Dock Pogo: 9V/2A
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Sensors

  • _

    AIM-65AT-22304000 Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
    AIM-65AT-22307000 Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
    AIM-65AT-24307000 Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Storage

  • eMMC

    AIM-65AT-22304000 64GB
    AIM-65AT-22307000 64GB
    AIM-65AT-24307000 64GB
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • SD card

    AIM-65AT-22304000 MicroSD card
    AIM-65AT-22307000 MicroSD card
    AIM-65AT-24307000 MicroSD card
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

Touchscreen

  • Construction

    AIM-65AT-22304000 G/G Direct Bonding, Corning GG3 Glass
    AIM-65AT-22307000 G/G Direct Bonding, Corning GG3 Glass
    AIM-65AT-24307000 G/G Direct Bonding, Corning GG3 Glass
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -

  • Type

    AIM-65AT-22304000 Capacitive 10 points multi-touch
    AIM-65AT-22307000 Capacitive 10 points multi-touch
    AIM-65AT-24307000 Capacitive 10 points multi-touch
    AIM-65AT-23307000 -
    AIM-65AT-23304000 -
