RS-485 I/O 模块: ADAM-4000

ADAM-4000 模块是建置符合成本效益之远程 I/O 系统的优选方案。 简易接线的优势,可让客户从中获益,只要两条连接线即可与所属控制器或其他 RS-485 模块装置通讯。 ADAM-4000 模块采用 EIAG RS-485 通讯协议;此一业界广泛使用的双向、平衡型传输线路,适合工业环境使用。

研华AIM-Linux嵌入式软件服务

AIM-Linux 开发者中心

为基于 Arm 和 Linux 的开发人员提供的一站式资源和文档中心,可长期简化开发和部署。

AIM-Linux Community

为基于Arm 和 Linux 的开发人员提供相互交流,与研华一同共享知识、解决问题的线上社区。

快速筛选

  • Analog Input

    • Channels

    • Input Range

    • Resolution(Bits)

    • Sampling Rates(S/s)

  • Analog Output

    • Channels

    • Output Ranges

    • Resolution

  • Counter/Encoder Input

    • Channels

  • Digital Input

    • Channels

    • Input Voltage

  • Digital Output

    • Channels

  • Environment

    • Operating Temperature

  • Isolated Digital Input

    • Channels

  • Isolated Digital Output

    • Channels

  • Relay Output

    • Channels

  • RTD Input

    • Channels

  • Thermocouple Input

    • Channels

Part Number Description Analog Input Analog Output Counter/Encoder Input Digital Input Digital Output Environment Isolated Digital Input Isolated Digital Output Relay Output RTD Input Thermocouple Input
    Channels Input Range Resolution(Bits) Sampling Rates(S/s) Channels Output Ranges Resolution Channels Channels Input Voltage Channels Operating Temperature Channels Channels Channels Channels Channels
Part Number Description Analog Input Analog Output Counter/Encoder Input Digital Input Digital Output Environment Isolated Digital Input Isolated Digital Output Relay Output RTD Input Thermocouple Input
    Channels Input Range Resolution(Bits) Sampling Rates(S/s) Channels Output Ranges Resolution Channels Channels Input Voltage Channels Operating Temperature Channels Channels Channels Channels Channels
ADAM-4015-F 6-Ch RTD Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A 6 N/A
ADAM-4017+-F 8-Ch AI Module w/ Modbus 8 ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, ±20 mA 16-bit 10 S/s (sum) N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4017-F 8-Ch AI Module 8 ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~20mA, ±20 mA, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V 16-bit 10 S/s (sum) N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4018+-F 8-Ch Thermocouple Input Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A 8
ADAM-4019+-F 8-Channel Universal Analog Input Module N/A ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0~20mA, 4 ~ 20 mA, ±20 mA, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V, 0~5 V, 0~10 V N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A 8
ADAM-4021-F 1AO RS-485 Modbus Remote I/O N/A N/A N/A N/A 1 0~10 V, 0~20 mA, 4~20 mA 12-bit N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4024-B1E 4AO/4DI Modbus RS-485 Remote I/O N/A N/A N/A N/A 4 ±10 V, 0~20 mA, 4~20 mA 12-bit N/A 4 (Isolated) Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~1 VDC N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4050-F 16-Ch DI/O Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A 8 Wet Contact Logic level 1: 3.5~30 VDC Logic level 0: 0~1 VDC 8 -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4051-C 16-Ch Isolated DI Module w/ LED & Modbus N/A N/A N/A N/A N/A N/A N/A N/A 16 (Isolated) N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4052-BE 8DI RS-485 Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) 8 N/A N/A N/A N/A
ADAM-4053-F 16-Ch Isolated DI Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A 16 Dry contact Logic level 0: close to GND Logic level 1: open Wet contact Logic level 0: 2 VDC max. Logic level 1: 4~30 VDC N/A -10~70 °C (14~158 °F) N/A N/A N/A N/A N/A
ADAM-4055-C 16-Ch Isolated DI/DO Module w/ LED & Mo N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) 8 8 N/A N/A N/A
ADAM-4056SO-B 12-Ch Source Type Isolated DO Module w/ N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A 12 N/A N/A N/A
ADAM-4060-F 4-Ch Relay Output Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A 4 N/A N/A
ADAM-4068-C 8-Ch Relay Output Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A 8 N/A N/A
ADAM-4069-B 8-Ch Power Relay Output Module w/ Modbus N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A 8 N/A N/A
ADAM-4080-E 2Counter Modbus RS-485 Remote I/O N/A N/A N/A N/A N/A N/A N/A 2 N/A N/A N/A -10~70 °C (14~158 °F) N/A 2 N/A N/A N/A

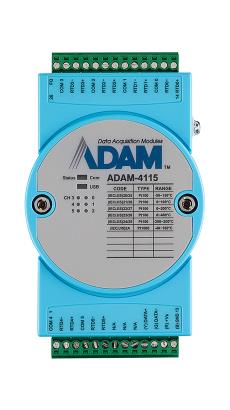

ADAM-4115-C Robust 6-Ch RTD Input Module N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -40~85 °C (-40~185 °F) N/A N/A N/A 6 N/A
ADAM-4117-C 8-Ch AI Module 8 ±15 V, ±10 V, ±5 V, ±1V, ±0.5 V, ±0.15 V, 0~15 V, 0~10 V, , 0~5 V, 0~1 V, 0~0.5 V, 0~0.15 V, ±20 mA, 4~20 mA, 0~20 mA 16-bit 100 S/s (sum) N/A N/A N/A N/A N/A N/A N/A -40~85 °C (-40~185 °F) N/A N/A N/A N/A N/A
ADAM-4118-C 8-Ch Thermocouple Input Module N/A ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, 0~15 mV, 0~50 mV, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V N/A N/A N/A N/A N/A N/A N/A N/A N/A -40~85 °C (-40~185 °F) N/A N/A N/A N/A 8
ADAM-4150-C 15-Ch DI/O Module N/A N/A N/A N/A N/A N/A N/A 7 N/A N/A N/A -40~85 °C (-40~185 °F) 7 8 N/A N/A N/A
ADAM-4168-C 8-Ch Relay Output Module N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A -40~85 °C (-40~185 °F) N/A N/A 8 N/A N/A

产品型录

  • Analog I/O Modules

    模拟输入模块提供多种来源,例如热电偶、RTD、热敏电阻或一般模拟讯号。 这些模块采用 EIAG RS-485 通讯协议;此一业界极广泛使用的双向、平衡型传输线路标准。 此外,还支持使用 Modbus/RTU 通讯协议作为远程数据传输机制。 模拟输出模块能提供 1 至 4 个通道,以满足多种应用的需求。

  • Digital I/O Modules

    研华的数字输入/输出模块具备隔离与故障保护功能,提供稳定的运作。
