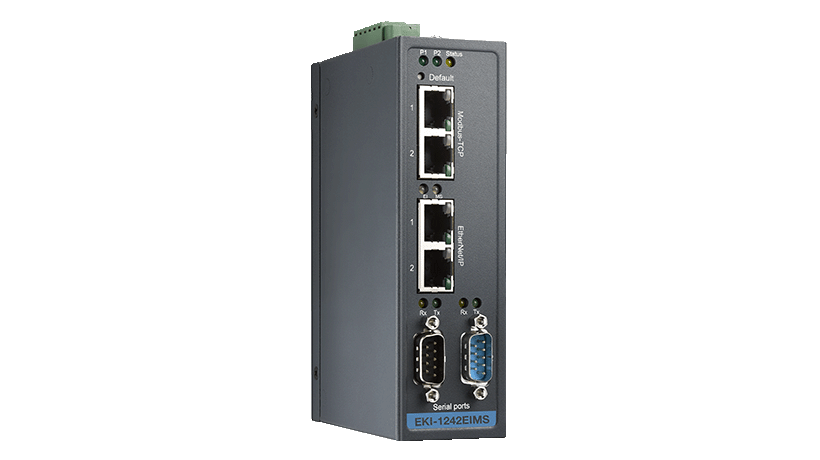

Advantech Fieldbus gateways provide seamless communication between Fieldbus and industrial Ethernet devices as well as support for different protocols
Advantech offers numerous wired and wireless products to convert different legacy protocols and interfaces to modern networking systems to avoid a complete overhaul of existing equipment & devices, saving cost and avoiding software programming errors.
Advantech serial device servers and Modbus/Fieldbus gateways are serial-to-Ethernet solutions that allow users to connect their isolated serial devices to the Internet for centralized machine communication management. Advantech high compatibility device servers and Modbus/Fieldbus gateways can seamlessly convert protocols for boundless machine-to-machine/ machine-to-cloud data transmission and network connectivity. The obstacles of versatile protocol communication no longer exist!
Feature Highlights

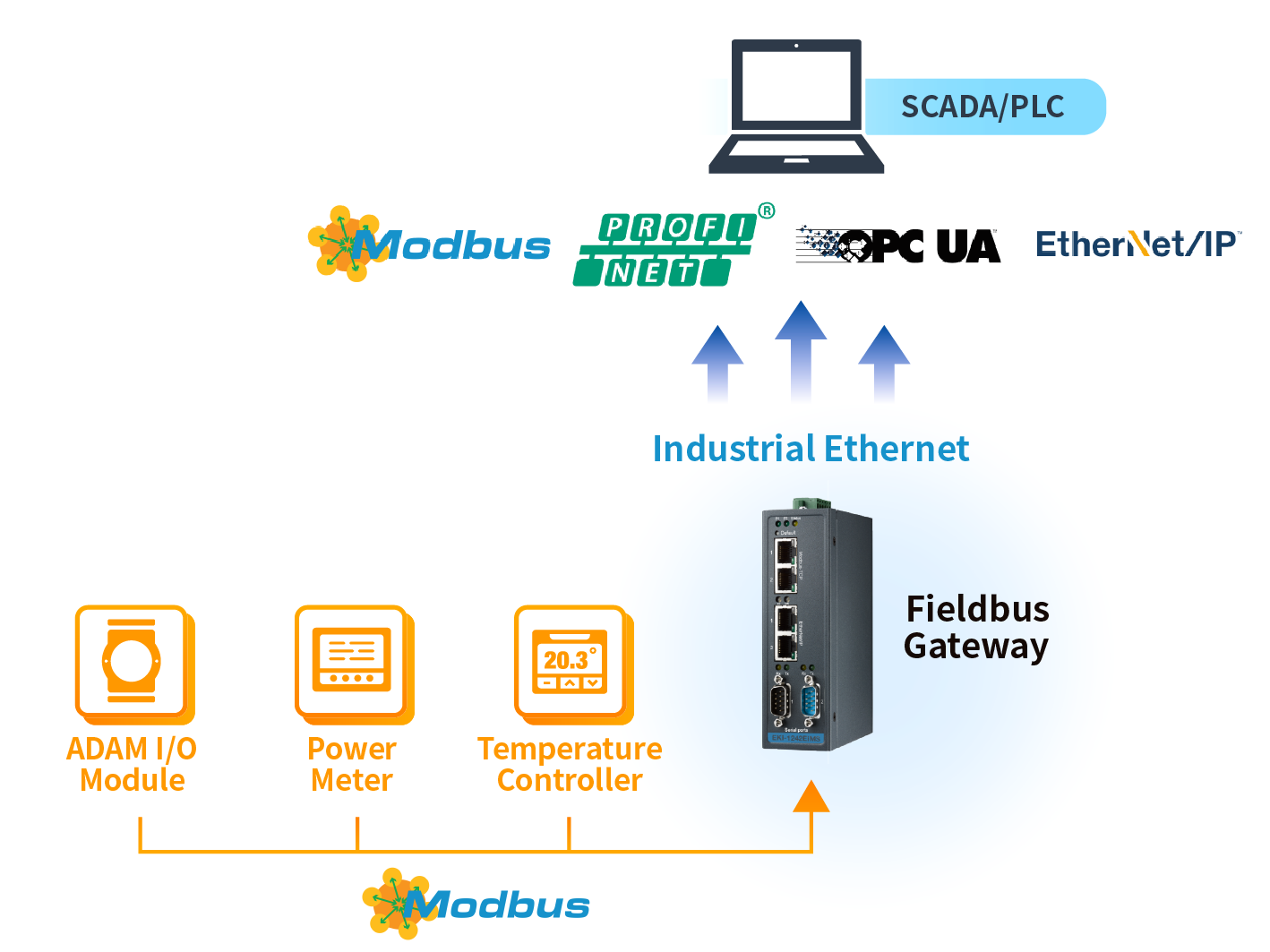

Converting Between Modbus, Fieldbus and Ethernet Connectivity
Our industrial Fieldbus gateways provide seamless communication between Fieldbus and industrial Ethernet devices as well as support for different protocols such as Ethernet/IP, EtherCAT, PROFINET, BACnet, and OPC UA.
High Compatibility with Various Serial Transmission Speed
Connect to nearly any 3rd-party serial devices without baud rate limitation, fulfilling a true machine-to-machine communication and machine-to-cloud connectivity.
Embedded Analysis Tool for Device Deployment Efficiency Enhancement
- The device servers can auto-detect and categorize the connected devices based on their baud rate settings, making sure a seamless communication at ease.
Mounting
Advantech's serial device servers, Modbus gateways and Fieldbus gateways provide several mounting methods to fit the varying needs of different projects in the field.
Advantech IoT Academy
EKI-1200 Modbus Gateway Implementation and Practical Hand-On Training
In this course, you will learn how to properly set up and configure EKI-1200 series Modbus gateway and understand how do deploy devices and conduct troubleshooting in an efficient manner.
EKI-1242PNMS Profinet Fieldbus gateway implementation and practical hand-on training
In this course, you will be learning how to properly set up and configure EKI-1242PNMS PROFINET gateway and understand how do deploy devices and conduct troubleshooting in an efficient manner.
EKI-1242EIMS Ethernet/IP Fieldbus Gateway Implementation and Practical Hand-On Training
In this course, you will be learning how to properly set up and configure EKI-1242EIMS Ethernet/IP gateway and understand how do deploy devices and conduct troubleshooting in an efficient manner.
EKI-1242ECMS EtherCAT Fieldbus Gateway Implementation and Practical Hand-On Training
In this course, you will be learning how to properly set up and configure EKI-1242ECMS EtherCAT gateway and understand how do deploy devices and conduct troubleshooting in an efficient manner.
快速筛选
| Part Number | Description | Certification | Environment | Ethernet Communication | General | Mechanism | PoE Information | Power | Protocol Support | Serial Communication | Software | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | Temperature (Operating Range) | Ethernet Standard | Fiber Port Number | Fiber Port Optical Mode | Fiber Transmission Distance | Fiber Transmission Speed | RJ-45 Port Number | RJ-45 Transmission Speed | Mounting | Power | Serial Port Count | Temperature | Enclosure (Metal) | IP Rating | Mounting | Weight | PoE Port Number | Power Connector Type | Power Consumption | Power Input (AC) | Power Input (DC) | Modbus ASCII | BACnet | EtherCAT | Ethernet | EtherNet/IP | Modbus RTU | Modbus TCP | OPC UA | PROFINET | RS-232 | RS-422 | RS-485 | Serial Port Connector Type | Serial Port Number | Serial Standard | Baud Rate | ||
| Part Number | Description | Certification | Environment | Ethernet Communication | General | Mechanism | PoE Information | Power | Protocol Support | Serial Communication | Software | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | Temperature (Operating Range) | Ethernet Standard | Fiber Port Number | Fiber Port Optical Mode | Fiber Transmission Distance | Fiber Transmission Speed | RJ-45 Port Number | RJ-45 Transmission Speed | Mounting | Power | Serial Port Count | Temperature | Enclosure (Metal) | IP Rating | Mounting | Weight | PoE Port Number | Power Connector Type | Power Consumption | Power Input (AC) | Power Input (DC) | Modbus ASCII | BACnet | EtherCAT | Ethernet | EtherNet/IP | Modbus RTU | Modbus TCP | OPC UA | PROFINET | RS-232 | RS-422 | RS-485 | Serial Port Connector Type | Serial Port Number | Serial Standard | Baud Rate | ||
| ADAM-4572-CE | 1-port Modbus Gateway | N/A | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | - | - | - | - | 1 | 10/100 Mbps | DIN, Panel | 10-30VDC | 1 | 0 to 60C | N/A | IP30 | N/A | 125 g | - | N/A | 2.5W | - | 10 ~ 30 VDC | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | Terminal block | 1 | N/A | 50 ~ 921.6 Kbps |
| BB-MESP211T | Modbus Gateway, RS-232/422/485 TB, Panel Mont, AC Adapter | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 10-30VDC | 1 | 0 to 40C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-MESR901 | Modbus Gateway, RS-232/422/485 TB, Ind. DIN | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN | 10-48VDC | 1 | -40 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1 | RS-232 / RS-422 / RS-485 | 50 ~ 230.4 Kbps |
| BB-MESR902T | Modbus Gateway, 2 x RS-232/422/485 TB, Ind. DIN | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN | 10-48VDC | 2 | -40 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |

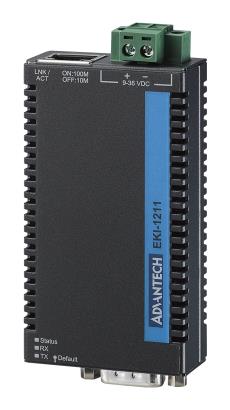

| EKI-1211-A | Industrial 1-port Modbus Gateway | N/A | -10 ~ 60°C (14 ~ 140°F) | N/A | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | N/A | N/A | N/A | 1W | N/A | 9 ~ 36 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 1 | N/A | N/A |
| EKI-1221-CE | Industrial 1-port Modbus Gateway | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | N/A | N/A | 0.472 kg | - | N/A | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 1 | N/A | 50 ~ 921.6 Kbps |
| EKI-1221CI-DE | Industrial 1-port Modbus Gateway - Isolation, Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.472 kg | - | N/A | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | N/A | Yes | Yes | DB9 male | 1 | N/A | 50 ~ 921.6 Kbps |
| EKI-1221I-CE | Industrial 1-port Modbus Gateway - Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.48 kg | - | N/A | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 1 | N/A | 50 ~ 921.6 Kbps |
| EKI-1222-CE | Industrial 2-port Modbus Gateway | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.48 kg | - | N/A | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 2 | N/A | 50 ~ 921.6 Kbps |
| EKI-1222CI-DE | Industrial 2-port Modbus Gateway - Isolation, Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.48 kg | - | N/A | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | N/A | Yes | Yes | DB9 male | 2 | N/A | 50 ~ 921.6 Kbps |
| EKI-1222I-CE | Industrial 2-port Modbus Gateway - Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.48 kg | - | N/A | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 2 | N/A | 50 ~ 921.6 Kbps |
| EKI-1224-CE | Industrial 4-port Modbus Gateway | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.555 kg | - | N/A | 4.1W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 4 | N/A | 50 ~ 921.6 Kbps |
| EKI-1224CI-CE | Industrial 4-port RS-422/485 Modbus Gateway - Isolation, Wide Temp. | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.555 kg | - | N/A | 4.1W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | N/A | Yes | Yes | DB9 male | 4 | N/A | 50 ~ 921.6 Kbps |
| EKI-1224I-CE | Industrial 4-port Modbus Gateway - Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.555 kg | - | N/A | 4.1W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 4 | N/A | 50 ~ 921.6 Kbps |
| EKI-1228-DR-AE | Industrial 8-port Modbus Gateway | UL 60950-1 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal | - | DIN-rail, Wall mount | 9 kg | N/A | 6-pin removable screw terminal (power & relay) | 5W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| EKI-1242IBNMS-A | Modbus RTU/TCP to BACnet IP/MSTP Fieldbus Gateway - Wide Temperature | N/A | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 4 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.497 kg | N/A | N/A | 5.2W (system) | N/A | 12 ~ 48 VDC | Yes | Yes | N/A | Yes | N/A | Yes | Yes | N/A | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1242IECMS-A | Modbus RTU/TCP to EtherCAT Fieldbus Gateway - Wide Temperature | N/A | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 4 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.497 kg | N/A | N/A | 5.2W (system) | N/A | 12 ~ 48 VDC | Yes | N/A | Yes | Yes | N/A | Yes | Yes | N/A | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1242IEIMS-A | Modbus RTU/TCP to EtherNet/IP Protocol Gateway - Wide Temperature | N/A | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 4 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.497 kg | N/A | N/A | 5.2W (system) | N/A | 12 ~ 48 VDC | Yes | N/A | N/A | Yes | Yes | Yes | Yes | N/A | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1242INR-A | Node-RED Fieldbus Gateway - Wide Temperature | N/A | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 4 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.497 kg | N/A | N/A | 5.2W (system) | N/A | 12 ~ 48 VDC | Yes | N/A | N/A | Yes | N/A | Yes | Yes | N/A | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1242IOUMS-A | Modbus TCP/RTU to OPC UA Fieldbus Gateway - Wide Temperature | N/A | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 4 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.497 kg | N/A | N/A | 5.2W (system) | N/A | 12 ~ 48 VDC | Yes | N/A | N/A | Yes | N/A | Yes | Yes | Yes | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1242IPNMS-A | Modbus RTU/TCP to PROFINET Protocol Gateway - Wide Temperature | N/A | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 4 | 10/100 Mbps | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | N/A | 0.497 kg | N/A | N/A | 5.2W (system) | N/A | 12 ~ 48 VDC | Yes | N/A | N/A | Yes | N/A | Yes | Yes | N/A | Yes | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
产品型录
-
Modbus Gateways
![]()
Advantech Modbus Gateway offers a convenient solution for controllers running the Modbus serial protocol (Modbus RTU/ASCII ) to Modbus TCP networks.
-
BACnet Gateways
![]()
The BACnet Fieldbus gateway is designed for seamless integration with existing network devices in building automation applications.
-
Node-RED Gateways
![]()
Node-RED Fieldbus gateways serve as multi-protocol converters. They allow control centers to connect to legacy devices for DAQ.
-
OPC UA Gateways
![]()
OPC UA protocol gateway features upgradeability and compatibility and is widely used in control systems - MES and ERP.
-
PROFINET Gateways
![]()
The PROFINET Fieldbus gateways provide seamless communication between Modbus RTU/TCP and PROFINET communication protocols.
-
Modbus Router
![]()
EKI-1200R series Modbus router is for integrating existing Modbus/RTU and Modbus/ASCII serial devices to newer Modbus TCP/IP networked-based devices.
-
EtherNet/IP Gateways
![]()
The EtherNet/IP Fieldbus gateways provide seamless communication between Modbus RTU/TCP and EtherNet/IP communication protocols.
-
EtherCAT Gateways
![]()
EtherCAT Fieldbus gateways provide seamless communication between Modbus RTU/TCP and EtherCAT communication protocols.
产品相关信息
-
Advantech Industrial Intelligent Connectivity Solutions
Advantech integrates technologies, such as time-sensitive networking (TSN), 5G, and Wi-Fi 6, with existing Modbus, Fieldbus, and Ethernet capabilities to provide seamless connectivity via industrial switches, routers, gateways, media and serial converters.
