嵌入式无风扇工业电脑, UNO-2000 系列

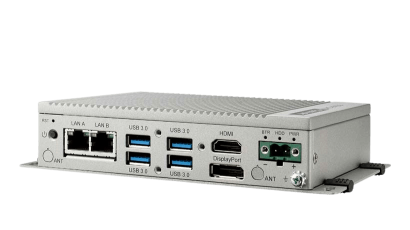

UNO-2372G

小型模组化嵌入式工业电脑，搭配Intel®️Atom寸处理器，2×千兆网口，4×串口，4×USB接口，2×mPCIe, HDMI, DP

  • Intel®️Atom Baytrial E3845四核处理器，最高可达1.91GHz，4G DDR3L内存
  • 无线缆强固型设计
  • 2 x GbE, 4 x USB, 4 x RS-232/422/485, 1 x HDMI, 1 x DP
  • 模组化设计，可通过第二扩展层进行功能扩充
  • 紧凑型无风扇设计
  • 橡胶防滑垫设计，多种安装方式可选：立式安装、导轨安装、VESA安装
  • 可选3G/GPS/GPRS/Wi-Fi 通讯模块

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 小型模组化嵌入式工业电脑，搭配Intel®️Atom寸处理器，2×千兆网口，4×串口，4×USB接口，2×mPCIe, HDMI, DP

规格

Environment
Ingress Protection
  • IP40
  • IP40
  • IP40
  • IP40
Operating Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Relative Humidity
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
Shock Protection
  • 50 G, half sine
  • 50 G, half sine
  • 50 G, half sine
  • 50 G, half sine
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Vibration Protection
  • 2 Grms, random
  • 2 Grms, random
  • 2 Grms, random
  • 2 Grms, random
Hardware
Certification
  • CE, FCC, UL, CCC, BSMI
  • CE, FCC, UL, CCC, BSMI
  • CE, FCC, UL, CCC, BSMI
  • CE, FCC, UL, CCC, BSMI
CPU
  • Intel® Atom® E3845 1.91GHz Quad-Core
  • Intel® Celeron J1900 2.0 Ghz Quad-Core
  • Intel® Celeron® J3455 1.5 Ghz Quad-Core
  • Intel® Celeron® J3455 1.5 Ghz Quad-Core
Graphics Engine
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Intel® HD Graphics
Memory
  • 1 x SO-DIMM Memory with 4 GB DDR3L 1333 MHz
  • 1 x SO-DIMM Memory with 4 GB DDR3L 1333 MHz
  • 1 x SO-DIMM Memory with 4 GB DDR3L 1866MHz
  • 1 x SO-DIMM Memory with 4 GB DDR3L 1866MHz
OS Support
  • Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, Linux
  • Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, Linux
  • Microsoft® Windows 10 LTSC, Linux
  • Microsoft® Windows 10 LTSC, Linux
Power Input
  • 10~36 VDC
  • 10~36 VDC
  • 10~36 VDC
  • 10~36 VDC
Storage
  • 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
  • 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
  • 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
  • 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
Hardware Security
  • TPM 2.0
  • TPM 2.0
I/O Interface
Audio
  • Line-Out
  • Line-Out
  • Line-Out
  • Line-Out
Displays
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
Expansion
  • 2 x Full-size mPCIe Slot
  • 2 x Full-size mPCIe Slot
  • 2 x Full-size mPCIe Slot
  • 2 x Full-size mPCIe Slot
LAN Ports
  • 2 x 10/100/1000 Mbps
  • 2 x 10/100/1000 Mbps
  • 2 x 10/100/1000 Mbps
  • 2 x 10/100/1000 Mbps
Power Connector
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
Serial Ports
  • 4 x RS-232/422/485
  • 4 x RS-232/422/485
  • 4 x RS-232/422/485
  • 4 x RS-232/422/485
USB Ports
  • 1 x USB 3.0, 3 x USB 2.0
  • 1 x USB 3.0, 3 x USB 2.0
  • 4 x USB 3.0
  • 4 x USB 3.0
Mechanical
Dimension (W x H x D)
  • 150 x 105 x 35 mm
  • 150 x 105 x 35 mm
  • 150 x 105 x 35 mm
  • 150 x 105 x 35 mm
Enclosure
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
Weight (Net)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
