ARK-V/S车载/监控系列

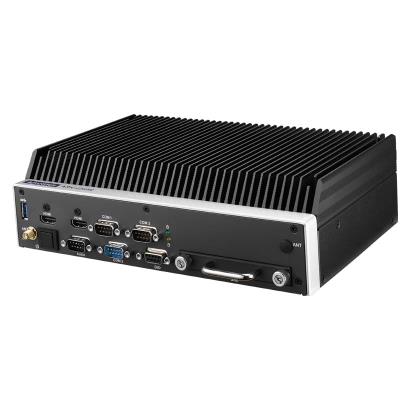

ARK-2250R

第六代Intel Core i7-6822EQ QC/i5-6442EQ QC 车载无风扇系统

  • Intel i7-6822EQ QC/ Intel i5-6442EQ QC SoC
  • 堆栈式扩展设计，可根据应用需求订购扩展套件
  • 符合 DC 24V EN50155 S2/C1标准，DC 48/72/110V 选项
  • 支持智能启动&定时关机管理
  • -40 ~ 70°C 宽温支持，符合 EN50155 TX 标准
  • 铁路 EMC 符合 EN50121-3-2, EN50121-4 标准
  • 可靠 LAN/USB/Audio/COM 连接和电源输入
  • 抗振/抗冲击、符合 IEC61373 Category1、B 级标准
  • 内置研华远程管理软件 WISE-PaaS/RMM

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 第六代Intel Core i7-6822EQ QC/i5-6442EQ QC 车载无风扇系统

规格

Ethernet
LAN1
  • 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
LAN2
  • 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
I/O
GPIO
  • 8-bit Programmable DIO
CANBus
  • Optional
USB
  • 2x USB2.0 A-Coded, 1x USB3.0 Type A
Memory
Technology
  • DDR4 2133MHz
Max. Capacity
  • 32 GB
Socket
  • 2 x 260-pin SO-DIMM
Graphics
Graphic Engine
  • DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265
HDMI
  • HDMI 1.4a for HD video playback, 1080P at 60Hz
VGA
  • Up to 1920 x 1200 at 60 Hz
Chipset
  • QM170
Dual Display
  • VGA + HDMI (Std.) or Dual HDMI (by project)
Audio
Main System
  • Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface
Serial Port
  • 3 x RS-232/422/485 port with auto flow control
Environment
Vibration During Operation
  • IEC61373 Category1, Class B
Shock During Operation
  • IEC61373 Category1, Class B
Relative Humidity
  • 95% @ 40° C (non-condensing)
Operational Temperature
  • With extended temperature peripherals: -40 ~ 70 °C EN50155 TX
Storage Temperature
  • -40 ~ 85° C (-40 ~ 185° F)
Power Requirement
Vehicle Power Ignition
  • Selectable boot-up & shut-down voltage, on/off delay time
Certification
EMC
  • CE/FCC Class B, CCC, BSMI, EN50121-3-2, EN50121-4
Safety Certifications
  • UL, CCC, BSMI, CB, EN50155
Expansion
Mini PCIe
  • #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key
Processor
Frequency
  • 2.0 GHz
Core Number
  • 4
CPU
  • Intel i7-6822EQ QC SoC
L2 Cache
  • 8 MB
BIOS
  • AMI EFI
Mechanical
Construction
  • Aluminum housing
Mounting
  • Wall mounting kit
Dimensions
  • 260 x 73 x 160.2mm
Weight
  • 3.2 Kg
Storage
mSATA
  • 1 x full size mSATA socket (Mini PCIe #1)
2.5" HDD/SSD
  • 1 x 2.5" SATA drive bay
Software Support
Microsoft Windows
  • Windows 10, Windows 8.1, WES7, Windows 7
Linux
  • Support by project
Other
TPM
  • TPM2.0 (Infineon SLB9665)
Power
Power Type
  • ATX
Power Consumption
  • Typical 22 W, Max. 55 W
Input Voltage
  • DC 72/110V
Power Requirement
  • Regulation: EN50155 S2/C1 Compliant
