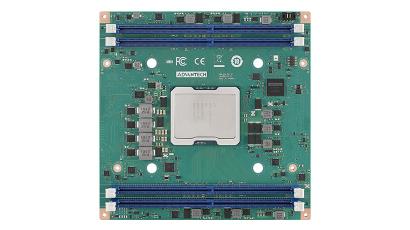

SOM-D580

Intel® Xeon® D-2700 处理器 (Ice Lake-D HCC) COM-HPC® Server Size D 模块

  • COM-HPC Server D尺寸模块
  • Intel Xeon D-2700处理器
  • 多达20核，30MB LLC缓存，118W TDP
  • 四通道DDR4-3200 RDIMM/LRDIMM，高达512GB (ECC可选)
  • 32 * PCIe Gen 4，17 * PCIe Gen 3，4 * 25GBASE-KR，IPMB
  • 支持iManager、嵌入式软件API和DeviceOn

技术资源链接：

产品型录 技术文件下载
  • Intel® Xeon® D-2700 处理器 (Ice Lake-D HCC) COM-HPC® Server Size D 模块

规格

Form Factor
Form Factor
  • COM-HPC® Size D
  • COM-HPC® Size D
  • COM-HPC® Size D
  • COM-HPC® Size D
  • COM-HPC® Size D
  • COM-HPC® Size D
  • COM-HPC® Size D
  • COM-HPC® Size D
Pin-out Type
  • COM-HPC Server
  • COM-HPC Server
  • COM-HPC Server
  • COM-HPC Server
  • COM-HPC Server
  • COM-HPC Server
  • COM-HPC Server
  • COM-HPC Server
Processor
CPU
  • Intel D-2796TE
  • Intel D-2775TE
  • Intel D-2752TER
  • Intel D-2733NT
  • Intel D-2712T
  • Intel D-2796TE
  • Intel D-2775TE
  • Intel D-2752TER
Frequency
  • 2.0 GHz
  • 2.0 GHz
  • 1.80 GHz
  • 2.1 GHz
  • 1.9 GHz
  • 2.0 GHz
  • 2.0 GHz
  • 1.8 GHz
Max Turbo Frequency
  • 3.1 GHz
  • 3.1 GHz
  • 2.8 GHz
  • 3.2 GHz
  • 3.0GHz
  • 3.1 GHz
  • 3.1 GHz
  • 2.8 GHz
Core Number
  • 20
  • 16
  • 12
  • 8
  • 4
  • 20
  • 16
  • 12
LLC
  • 30MB
  • 25MB
  • 20MB
  • 15MB
  • 15MB
  • 30MB
  • 25MB
  • 20MB
TDP
  • 118W
  • 100W
  • 77W
  • 80W
  • 65W
  • 118W
  • 100W
  • 77W
BIOS
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
Memory
Technology
  • DDR4
  • DDR4
  • DDR4
  • DDR4
  • DDR4
  • DDR4
  • DDR4
  • DDR4
ECC Support
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
Max. Capacity
  • 512GB
  • 512GB
  • 512GB
  • 512GB
  • 512GB
  • 512GB
  • 512GB
  • 512GB
Socket
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
  • 4 x RDIMM, 1 DPC, 3200 MT/s, max DIMM capacity 64GB, up to 256GB
Expansion
PCI Express
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
  • 32 x PCIe Gen 4 and 17 x PCIe Gen 3 (1port PCIe x1 Gen3 for BMC), total 49 lanes
SMBus
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
Serial Bus
SMBus
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
I2 C Bus
  • X2
  • X2
  • X2
  • X2
  • X2
  • X2
  • X2
  • X2
Ethernet
Ethernet KR
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
  • Intel Integrated 4x 10G or 4x 25G (depands on SoC SKU)
Gigabit
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
  • Intel I225IT Controller; 10M/100M/1000M/2.5Gbps
I/O
SATA 3.0
  • 2 Ports
  • 2 Ports
  • 2 Ports
  • 2 Ports
  • 2 Ports
  • 2 Ports
  • 2 Ports
  • 2 Ports
USB 3.2
  • 4
  • 4
  • 4
  • 4
  • 4
  • 4
  • 4
  • 4
USB2.0
  • 4
  • 4
  • 4
  • 4
  • 4
  • 4
  • 4
  • 4
SPI Bus
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
GPIO
  • 12 GPIO Ports
  • 12 GPIO Ports
  • 12 GPIO Ports
  • 12 GPIO Ports
  • 12 GPIO Ports
  • 12 GPIO Ports
  • 12 GPIO Ports
  • 12 GPIO Ports
eSPI
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
Watchdog timer
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
COM Port
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
  • 2 Ports (4-Wire)
TPM
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
Smart Fan
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
  • 2 Ports: 1 port on COM module (4 pins); 1 port on carrier board (3 pins)
Power
Type
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
Power Consumption (Max)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 178.11W@12V (D-2796TE with 512GB LRDDR4 3200)
Power Consumption (Idle)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
  • 71.06W@12V (D-2796TE with 512GB LRDDR4 3200)
Environment
Operational Temperature
  • 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)
  • 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)
  • 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)
  • 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)
  • 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)
  • -40° C ~ 85° C
  • -40° C ~ 85° C
  • -40° C ~ 85° C
Humidity
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Storage Temperature
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
Vibration Resistance
  • 3.5 Grm
  • 3.5 Grm
  • 3.5 Grm
  • 3.5 Grm
  • 3.5 Grm
  • 3.5 Grm
  • 3.5 Grm
  • 3.5 Grm
Mechanical
Dimensions
  • 160 x 160 mm
  • 160 x 160 mm
  • 160 x 160 mm
  • 160 x 160 mm
  • 160 x 160 mm
  • 160 x 160 mm
  • 160 x 160 mm
  • 160 x 160 mm
