Digital I/O

AMAX-5081

1路 TTL/RS-422 增量型编码器/计数器模块（插片式）

  • 溢出/下溢检测
  • 闩锁计数器值
  • 重置计数器值
  • 设置计数器值
  • 输入滤波器
  • 位置比较输出
  • A/B 相位输入反转
  • 频率测量（脉冲输入）

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 1路 TTL/RS-422 增量型编码器/计数器模块（插片式）

规格

Counter/Encoder Input
Encoder Type
  • Incremental Encoder
Channels
  • 1
Counting Range
  • 32-bit
Max. Input Frequency
  • 10 MHz
Mode
  • Counter (up/down, bi-direction, up, A/B Phase),
    Frequency
General
Connectors
  • 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
  • EtherCAT
EtherCAT
Cycle Time
  • 100 μs
Hardware
Certification
  • CE, FCC class A
LED Indicators
  • PWR, RUN / ERROR, A+, A-, B+, B-, Z+, Z-, L+, L-
Power Consumption
  • 3 W @ 24 VDC
Environment
Isolation Voltage
  • 2,000 VDC
Operating Temperature
  • -25~60 °C (-13~140 °F)
Relative Humidity
  • 95% RH (non-condensing)
Storage Temperature
  • -40~85 °C (-40~185 °F)
Storage Humidity
  • 95% RH (non-condensing)
Mechanical
Enclosure
  • PC
Mounting
  • DIN-rail
Weight (Net)
  • 92 g
Dimension (W x H x D)
  • 14.6 x 105.9 x 94.7 mm

特点和优势

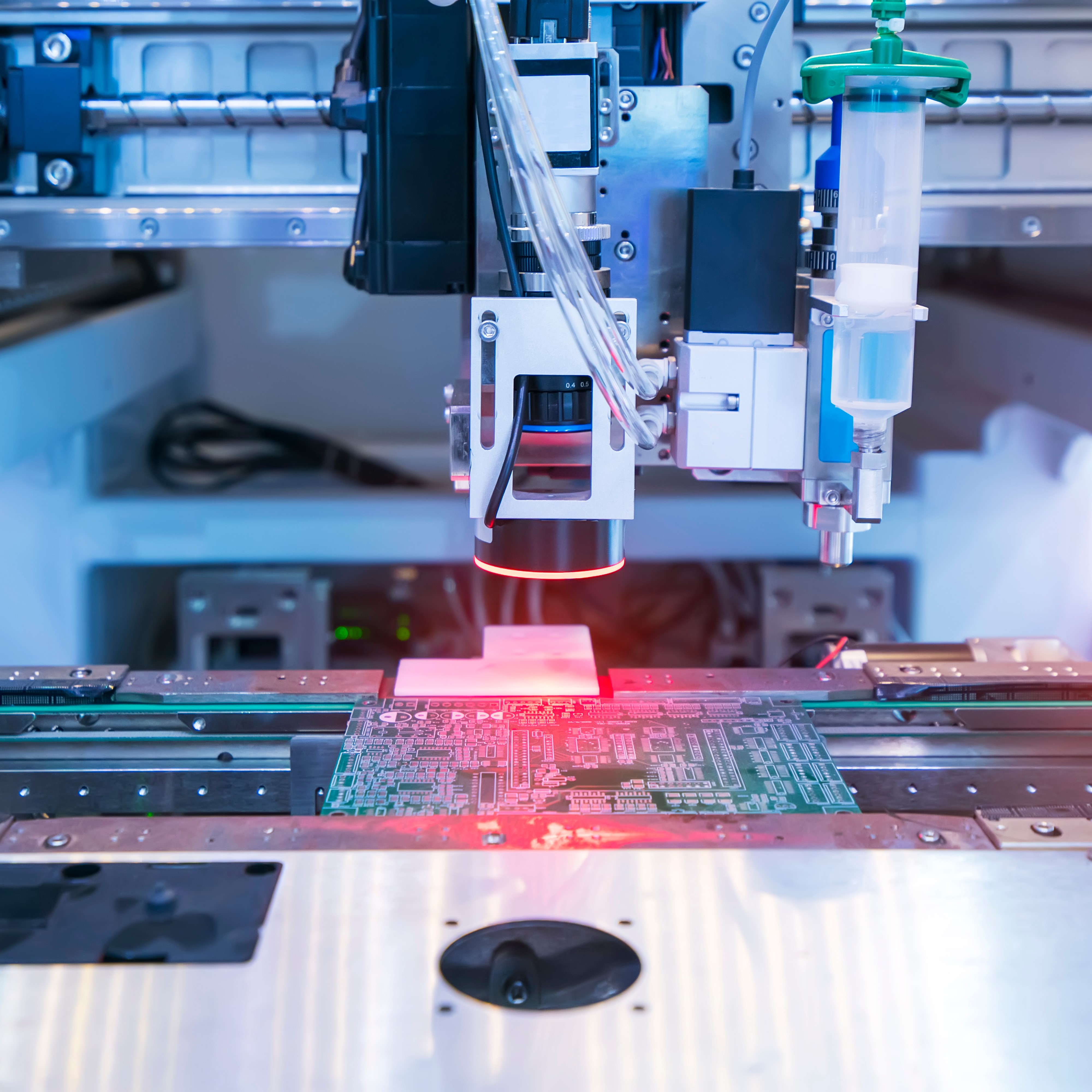

Revolutionize Your Production Line with On-the-Fly AI Inspection Solutions

Revolutionize Your Production Line with On-the-Fly AI Inspection Solutions

Automated Optical Inspection (AOI) has become vital in modern manufacturing to meet the demands of increased customization and the precision required in producing high-tech electronics like semiconductors and PCBs. Traditional AOI systems often suffer from inefficiencies and elevated costs due to their reliance on rigid algorithms that lead to frequent false positives.

 Advantech enhances the field with advanced AOI solutions that optimize inspection accuracy and efficiency. Our systems significantly reduce false positives and improve error detection and product categorization, thus streamlining the manufacturing process. This method ensures our solutions uphold the agility and precision critical for today's smart manufacturing environments.
