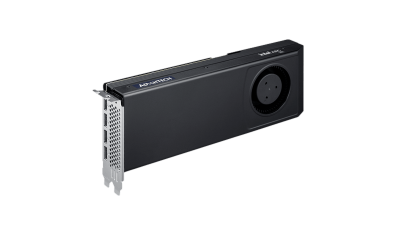

EAI-3931

Intel ARC PRO B60 PCIe GPU加速卡

  • 搭载 Intel ARC PRO B60 显卡,INT8 算力 197TOPS
  • 板载 24GB GDDR6 大容量高速图形显存
  • 最高支持 8K 超高清画面输出
  • 配备 4 路 DisplayPort 2.1 显示接口
  • 兼容 VULKAN 1.3、DirectX 12、OpenGL 4.6、OpenCL 3.0
  • PCIe x16 标准规格,适配各类 AI 应用场景

认证:

技术资源链接:

产品型录 技术文件下载

规格

Processor
GPU
  • Intel® Arc™ PRO B60
Frequency
  • 2.4 GHz
AI Performance Reference
  • 197 TOPS (INT8)
Memory
Technology
  • GDDR6 24 GB
Graphics
DP
  • 4x DisplayPort 2.1
Resolution
  • 7680 x 4320
Graphic Engine
  • API: VULKAN™ 1.3, DirectX® 12, OpenGL™ 4.6, OpenCL™ 3.0,
    Codec: AV1, VP9, H.265 (HEVC), H.264 (AVC)
Interface
Signal Interface
  • PCIe Gen5 x8
Power Consumption
Maximum
  • 200W
Environment
Temperature (Operating)
  • 0 ~ 45° C (32 ~ 113° F)
Cooling
Cooling
  • Active, 1x blower fan
Physical
Dimension (mm)
  • 112 x 289 x 42 (dual slots)
Power
Connector
  • PCIe 8-pin

特点和优势

Edge AI Acceleration Modules

AI Acceleration Modules: Upgrading from Edge Computing to Edge AI

NPU- and GPU-powered AI acceleration modules offer the fastest and simplest way to integrate AI into current edge computing platforms. These technologies provide advantages in throughput, latency, and efficiency, making them ideal for various AI applications. Advantech partners with leading AI chip providers to deliver cost- and power-efficient acceleration modules in M.2, MXM, and PCIe form factors, ensuring seamless upgrades from edge computing to edge AI.

Why Advantech’s EAI Series?

Flexibility

Module designs in standard form factors enable quick integration, including M.2, MXM, and PCIe.

Diversity

AI computing power ranges from entry-level to high-end, catering to diverse AI applications.

Scalability

Easily expand AI computing power by adding more AI acceleration modules.

Advantech Edge AI SDK

Comprehensive toolset supports rapid edge AI setup and streamlined development workflows.

Featured Products

EAI-1000 Series

EAI-1000 Series

  • Compact M.2 2242 / 2280 Modules
  • Power-Efficient AI
  • Bag Screening, Parking Lot Management
EAI-2000 Series

EAI-2000 Series

  • MXM Type A / B Modules
  • Slim-Type AI
  • Medical Analysis, Robotic Arms
EAI-3000 Series

EAI-3000 Series

  • Standard PCIe x16 / x8 Cards
  • High-Performance AI
  • Traffic Surveillance, AOI Inspection

Successful Use Cases

Defect Inspection

Safety Monitoring

Traffic Monitoring

Security Screening
