2.5" PICO-ITX MIO 单板电脑

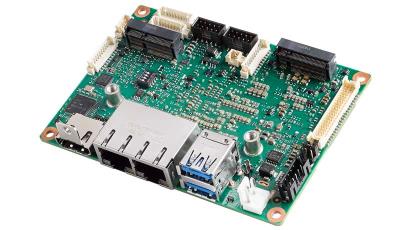

MIO-2363

Intel 第8代Atom系列 PICO-ITX 2.5‘’单板电脑

  • Intel Atom 第八代系列处理器
  • 板载LPDDR4x最大8GB, EMMC 高达128GB
  • 支持12-24V宽压，-40~85°C宽温
  • 2 GbE LAN, 2 USB3.2, 2 RS-232/422/485, I2C
  • M.2 E-Key, M.2 B-Key扩展
  • 支持iManager & 软件 API、DeviceOn和EdgeAI套件

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • Intel 第8代Atom系列 PICO-ITX 2.5‘’单板电脑

规格

Processor
Core Number
  • 2
  • 4
  • 4
  • 2
  • 4
Max Turbo Frequency
  • 3.0GHz
  • 3.0GHz
  • 3.0GHz
  • 3.0GHz
  • 3.0GHz
Frequency
  • 1.3 GHz
  • 1.5 GHz
  • 2.0 GHz
  • 1.3 GHz
  • 2.0 GHz
CPU TDP
  • 6W
  • 9W
  • 12W
  • 6W
  • 12W
Chipset
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
BIOS
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
Memory
Technology
  • LPDDR4 3200 MHz
  • LPDDR4 3200 MHz
  • LPDDR4 3733Mbit
  • LPDDR4 3200 MHz
  • LPDDR4 3733Mbit
Max. Capacity
  • 4GB
  • 4GB
  • 8GB
  • 4GB
  • 8GB
Channel/ Socket
  • Dual Channel / On Board Memory
  • Dual Channel / On Board Memory
  • Dual Channel / On Board Memory
  • Dual Channel / On Board Memory
  • Dual Channel / On Board Memory
ECC Support
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
Graphics
Max. Frequency
  • 750MHz
  • 750MHz
  • 750MHz
  • 750MHz
  • 750MHz
Base Frequency
  • 350 MHz
  • 500MHz
  • 500MHz
  • 350 MHz
  • 500MHz
Display
LCD
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
HDMI
  • Up to 3840 x 2160 at 30Hz
  • Up to 3840 x 2160 at 30Hz
  • Up to 3840 x 2160 at 30Hz
  • Up to 3840 x 2160 at 30Hz
  • Up to 3840 x 2160 at 30Hz
Multiple Display
  • Dual: HDMI+ LVDS
  • Dual: HDMI+ LVDS
  • Dual: HDMI+ LVDS
  • Dual: HDMI+ LVDS
  • Dual: HDMI+ LVDS
Ethernet
Controller
  • 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210
  • 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210
  • 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210
  • 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210
  • 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210
Speed
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
Rear I/O
Ethernet
  • 2
  • 2
  • 2
  • 2
  • 2
HDMI / DisplayPort*
  • 1
  • 1
  • 1
  • 1
  • 1
USB 3.2
  • 2
  • 2
  • 2
  • 2
  • 2
Internal I/O
USB
  • 2 x USB 2.0
  • 2 x USB 2.0
  • 2 x USB 2.0
  • 2 x USB 2.0
  • 2 x USB 2.0
GPIO
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
Serial Bus
I2 C Bus
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
Expansion
M.2
  • 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
  • 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
  • 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
  • 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
  • 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
Power
Power Supply Voltage
  • Vin: 12VDC~24VDC
  • Vin: 12VDC~24VDC
  • Vin: 12VDC~24VDC
  • Vin: 12VDC~24VDC
  • Vin: 12VDC~24VDC
Power Type
  • AT/ ATX
  • AT/ ATX
  • AT/ ATX
  • AT/ ATX
  • AT/ ATX
Environment
Operational Temperature
  • -40~85C (-40~185° F)
  • -40~85C (-40~185° F)
  • -40~85C (-40~185° F)
  • -40~85C (-40~185° F)
  • -40~85C (-40~185° F)
Non-Operational Temperature
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
Humidity
  • 40° C @ 95% RH Non-Condensing
  • 40C at 95% RH Non-Condensing
  • 40C at 95% RH Non-Condensing
  • 40° C @ 95% RH Non-Condensing
  • 40C at 95% RH Non-Condensing
Vibration Resistance
  • 3.5 Grms
  • 3.5 Grms
  • 3.5 Grms
  • 3.5 Grms
  • 3.5 Grms
Certification
Electromagnetic
  • CE, FCC
  • CE, FCC
  • CE, FCC
  • CE, FCC
  • CE, FCC
Mechanical
Dimensions
  • 100 x 72 mm
  • 100 x 72 mm
  • 100 x 72 mm
  • 100 x 72 mm
  • 100 x 72 mm
Operating System
Ubuntu
  • V
  • V
  • V
  • V
  • V
