mSATA, H/S mSATA

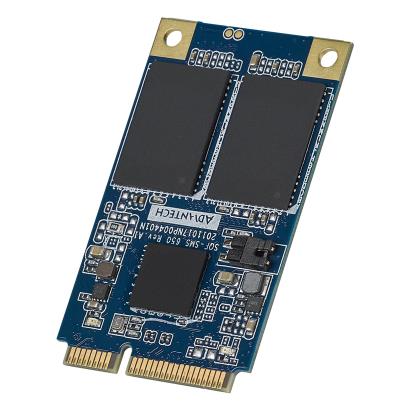

SQF-SMS 650

SQFlash mSATA 650, SATA Gen. 3 (6.0Gbps)

  • 符合SATA 3.2标准
  • MO-300 mSATA 模块
  • AES-256支持和TCG-OPAL兼容
  • 支持硬件和固件写保护
  • 支持 LDCP & RAID ECC
  • GUI管理工具和软件API包
  • 多温度范围产品选择
  • 高耐久性sTLC产品选择

认证：

技术资源链接：

产品型录 技术文件下载
  • SQFlash mSATA 650, SATA Gen. 3 (6.0Gbps)

规格

SQFlash
Capacity
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 1TB
  • 2 TB
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 1 TB
  • 2 TB
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 1 TB
  • 2 TB
  • 32 GB
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 32 GB
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
Connector
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
  • Mini PCIe with SATA pin-out
Flash Type
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
Interface
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
Operational Temperature
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
Shock
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
Transfer Protocol
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
Vibration
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
SQFlash Utility
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
