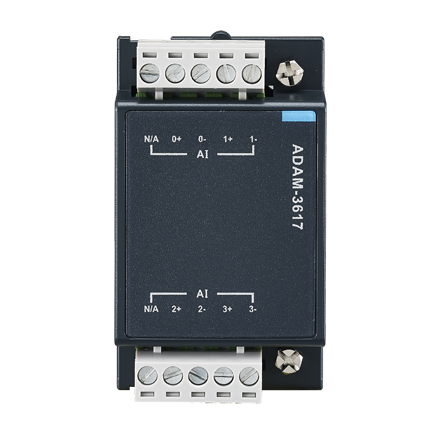

ADAM-3617
4-ch Analog Input Module

  • Accuracy: ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
  • Resolution: 16-bit
  • Voltage/Current: ±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA
  • Isolation Voltage: 2000 V DC
  • Sampling rate: 10 sample/second (total)
  • Burn-out detection: Yes (Current-only)
  • Input Impedance: 0.1 MΩ
  • Input Type: Voltage, Current
  • Channels: 4, differential
4-ch Analog Input Module

规格 下载规格表

  • Part Number
  • 相关讯息
Analog Input
  • Burn-out Detection
  • Channels
  • Input Range
  • Isolation Protection
  • lnput Type
  • Resolution(Bits)
  • Sampling Rates(S/s)
Environment
  • Operating Temperature
  • Storage Temperature

Analog Input

  • Burn-out Detection

    ADAM-3617-AE Yes (Current-only)*
  • Channels

    ADAM-3617-AE 4 differential
  • Input Range

    ADAM-3617-AE ±10 V, ±2.5 V, 0~20 mA, 4~20 mA
  • Isolation Protection

    ADAM-3617-AE 2,000 VDC
  • lnput Type

    ADAM-3617-AE Voltage, Current
  • Resolution(Bits)

    ADAM-3617-AE 16-bit
  • Sampling Rates(S/s)

    ADAM-3617-AE 10 S/s (sum)

Environment

  • Operating Temperature

    ADAM-3617-AE -40~70 °C (-40~158 °F)
  • Storage Temperature

    ADAM-3617-AE -40~85 °C (-40~185 °F)
