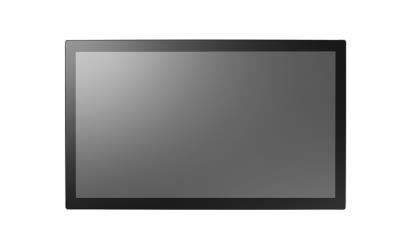

UTC-520 Series

UTC-520J

21.5" 多功能触控一体机，Intel® Celeron® J6412

  • 低功耗，无风扇系统设计
  • 内置Intel®赛扬®J6412（UTC-520J）
  • 21.5英寸的显示器，16：9宽屏
  • 前面板IP65防护等级，防水防尘
  • 一体化铝挤压设计
  • 同时支持横向和纵向屏幕模式
  • VESA 100 mm标准安装孔，适应多种安装需求
  • 用于集成外围设备的侧槽设计
  • 支持DeviceOn/iService 远程设备管理软件

技术资源链接：

产品型录 技术文件下载
  • 21.5" 多功能触控一体机，Intel® Celeron® J6412

规格

Display
Size
  • 21.5" TFT LCD
  • 21.5" TFT LCD
  • 21.5" TFT LCD
Max. Resolution
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
Brightness
  • 250 cd/m² (optional 400 nits)
  • 250 cd/m² (optional 400 nits)
  • 250 cd/m² (optional 400 nits)
Touch Screen
Type
  • Projected Capacitive
  • Projected Capacitive
  • 5-wire resistive
Processor System
CPU
  • Intel® Celeron® J6412
  • Intel® Celeron® J6412
  • Intel® Celeron® J6412
RAM
  • 4G DDR4
  • 4G DDR4
  • 4G DDR4
Storage
  • 1 x 2.5 internal SATA HDD bay
  • 1 x 2.5 internal SATA HDD bay
  • 1 x 2.5 internal SATA HDD bay
OS
  • Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04
  • Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04
  • Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04
TPM
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
I/O Interface
Ethernet
  • 2 x Gigabit Ethernet ports
  • 2 x Gigabit Ethernet ports
  • 2 x Gigabit Ethernet ports
Serial Port
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
Output
  • 1 x HDMI / 1 x DP
  • 1 x HDMI / 1 x DP
  • 1 x HDMI / 1 x DP
Audio
  • 1 x Line-out, 1 x Mic-in
  • 1 x Line-out, 1 x Mic-in
  • 1 x Line-out, 1 x Mic-in
Speaker
  • 2 x 3W Speaker
  • 2 x 3W Speaker
  • 2 x 3W Speaker
Extendable Slot
  • 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module
    1x M-Key support SATA M.2 2242 module
  • 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module
    1x M-Key support SATA M.2 2242 module
  • 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module
    1x M-Key support SATA M.2 2242 module
Power
Input Rating
  • 12 V/7 A (84 W ITE Adapter)
  • 12 V/7 A (84 W ITE Adapter)
  • 12 V/7 A (84 W ITE Adapter)
Environment
System Protection
  • IP65 front panel
  • IP65 front panel
  • IP65 front panel
Operating Temperature
  • 0~40° C
  • 0~40° C
  • 0~40° C
Operating Humidity
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
Shock
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
Peripheral
WLAN
  • N/A
  • N/A
  • N/A
Bluetooth
  • N/A
  • N/A
  • N/A
