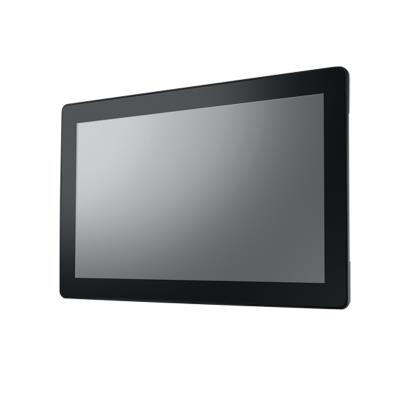

UTC-115 Series

UTC-115G

15.6" 多功能触控一体机 UTC-115G ，配备Intel® Celeron® N3450 /Pentium® N4200

  • 超薄、超轻设计
  • 低功耗无风扇
  • 内置 Intel Celeron® N3450 / Pentium® N4200
  • 15.6" 显示器 16:9 宽屏显示
  • IP65等级前面板防水防尘
  • 整洁的背盖设计，3路 IO 线缆排线
  • 支持横屏竖屏显示
  • VESA 100 mm 标准安装，支持多样化应用情景
  • 支持 PoE 供电 ( Celeron® N3450 / Pentium® N4200平台适用 )

技术资源链接：

产品型录 技术文件下载
  • 15.6" 多功能触控一体机 UTC-115G ，配备Intel® Celeron® N3450 /Pentium® N4200

规格

Color
Color
  • Silver
  • Silver
  • Silver
  • Silver
  • Silver
Display
Size
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
Max. Resolution
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
Brightness
  • 300 cd/m²
  • 300 cd/m²
  • 300 cd/m²
  • 300 cd/m²
  • 300 cd/m²
Touch Screen
Type
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
Processor System
CPU
  • Intel® Pentium® N4200
  • Intel® Pentium® N4200
  • Intel® Pentium® N4200
  • Intel® Pentium® N4200
  • Intel® Pentium® N4200
RAM
  • 4GB DDR3L
  • 4GB DDR3L
  • 4GB DDR3L
  • 4GB DDR3L
  • 4GB DDR3L
Storage
  • 128G SSD
  • 128G SSD
  • 128G SSD
  • 128G SSD
  • 128G SSD
OS
  • Windows 10 IoT Enterprise 64bit
  • Android 8.1
  • Windows 10 IoT Enterprise 64bit
  • N/A
  • Windows 10 IoT Enterprise 64bit
Process System
Base/Burst Frequency
  • 1.10Ghz/2.50Ghz (Quad-Core)
  • 1.10Ghz/2.50Ghz (Quad-Core)
  • 1.10Ghz/2.50Ghz (Quad-Core)
  • 1.10Ghz/2.50Ghz (Quad-Core)
  • 1.10Ghz/2.50Ghz (Quad-Core)
Stereo Speaker
  • 2 x 2W
  • 2 x 2W
  • 2 x 2W
  • 2 x 2W
  • 2 x 2W
Dimension (WxHxD)
  • 398.8 x 248.2 x 29.5
  • 398.8 x 248.2 x 29.5
  • 398.8 x 248.2 x 29.5
  • 398.8 x 248.2 x 29.5
  • 398.8 x 248.2 x 29.5
Weight
  • 2.4 Kg
  • 2.4 Kg
  • 2.4 Kg
  • 2.4 Kg
  • 2.4 Kg
I/O Interface
Serial Port
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
USB Port
  • 4 x USB 3.0 / 2 x USB 3.0 (optional)
  • 4 x USB 3.0 / 2 x USB 3.0 (optional)
  • 4 x USB 3.0 / 2 x USB 3.0 (optional)
  • 4 x USB 3.0 / 2 x USB 3.0 (optional)
  • 4 x USB 3.0 / 2 x USB 3.0 (optional)
Output
  • 1 x HDMI
  • 1 x HDMI
  • 1 x HDMI
  • 1 x HDMI
  • 1 x HDMI
Audio
  • 1 x Audio Phone Jack
  • 1 x Audio Phone Jack
  • 1 x Audio Phone Jack
  • 1 x Audio Phone Jack
  • 1 x Audio Phone Jack
Ethernet
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
Speaker
  • 2 x 2W Speaker
  • 2 x 2W Speaker
  • 2 x 2W Speaker
  • 2 x 2W Speaker
  • 2 x 2W Speaker
Extendable Slot
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
Peripheral
WLAN
  • IEEE 802.11a/b/g/n/ac
  • IEEE 802.11a/b/g/n/ac
  • IEEE 802.11a/b/g/n/ac
  • IEEE 802.11a/b/g/n/ac
  • IEEE 802.11a/b/g/n/ac
Bluetooth
  • Bluetooth® v4.1
  • Bluetooth® v4.1
  • Bluetooth® v4.1
  • Bluetooth® v4.1
  • Bluetooth® v4.1
Environment
Operating Temperature
  • 0~40° C
  • 0~40° C
  • 0~40° C
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
Vibration
  • 0.5G
  • 0.5G
  • 0.5G
  • 0.5G
  • 0.5G
Shock
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
System Protection
  • IP65 front panel
  • IP65 front panel
  • IP65 front panel
  • IP65 front panel
  • IP65 front panel
Power
Input Rating
  • 12 V/5 A~24 V/2.5 A (60W ITE Adapter)
  • 12 V/5 A~24 V/2.5 A (60W ITE Adapter)
  • 12 V/5 A~24 V/2.5 A (60W ITE Adapter)
  • 12 V/5 A~24 V/2.5 A (60W ITE Adapter)
  • 12 V/5 A~24 V/2.5 A (60W ITE Adapter)
PoE
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
Power Supply
Power consumption
  • 26W
  • 26W
  • 26W
  • 26W
  • 26W

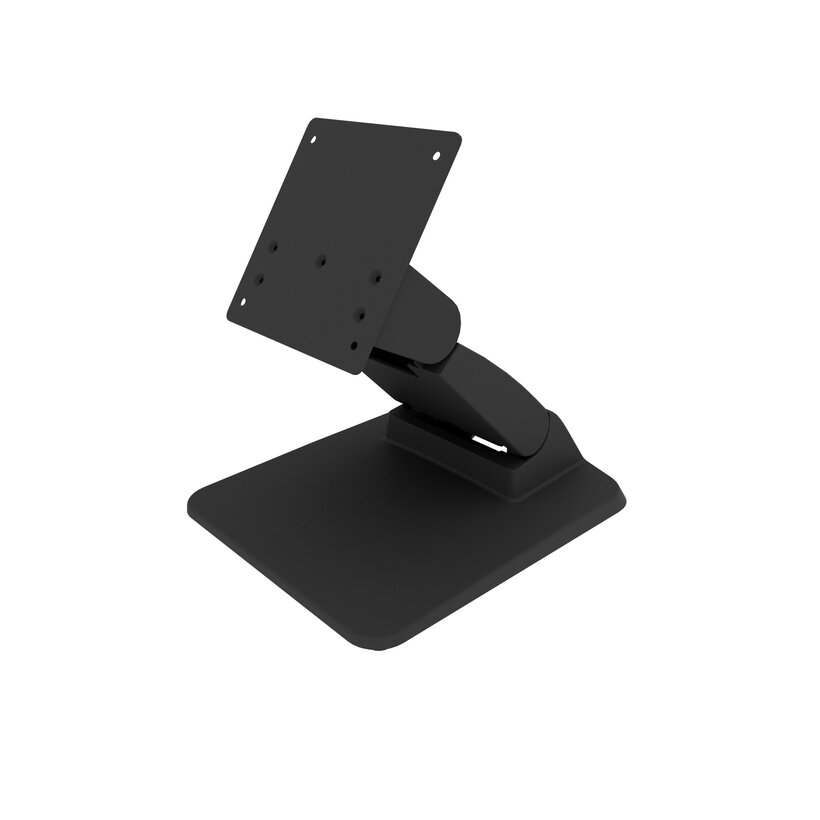

配件
