USC-365 Series

  • USC-365H

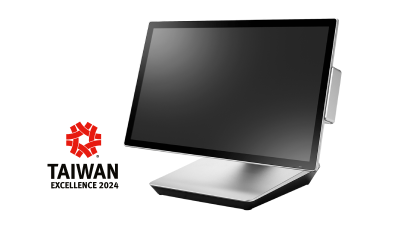

    15.6英寸窄边框POS一体机，美观耐用

USC-365H

15.6英寸窄边框POS一体机，美观耐用

  • 第11代英特尔®赛扬®6305E/核心™i3-1115G4E/i5-1145G7E处理器
  • 15.6英寸全高清液晶显示屏，LED背光和P-CAP触摸屏
  • 直接粘结的面板与防眩光涂层
  • 1 x LAN、3个USB Type-C、2 x USB 3.0和1 x RJ-11
  • 集成接线与USB-C连接器，支持视频、音频和电源信号
  • I/O扩展模块提供2 x COM，3 x 12V电源USB，1 x 24V电源USB，1 x USB 2.0，和1 x USB Type-C
  • 高度可定制的阳极氧化铝盖

认证：

技术资源链接：

产品型录 技术文件下载
  • 15.6英寸窄边框POS一体机，美观耐用

规格

Processor System
CPU
  • 11th Gen Intel® Celeron® 6305E
  • 11th Gen Intel® Celeron® 6305E
  • Intel® Core™ i3-1115G4E
  • Intel® Core™ i3-1115G4E
  • Intel® Core™ i5-1145G7E
  • Intel® Core™ i5-1145G7E
RAM
  • DDR4-3200 up to 32GB
  • DDR4-3200 up to 32GB
  • DDR4-3200 up to 32GB
  • DDR4-3200 up to 32GB
  • DDR4-3200 up to 32GB
  • DDR4-3200 up to 32GB
Storage
  • 1 x M.2 SSD
  • 1 x M.2 SSD
  • 1 x M.2 SSD
  • 1 x M.2 SSD
  • 1 x M.2 SSD
  • 1 x M.2 SSD
OS
  • Windows 10 IoT Enterprise
  • Windows 10 IoT Enterprise
  • Windows 10 IoT Enterprise
  • Windows 10 IoT Enterprise
  • Windows 10 IoT Enterprise
  • Windows 10 IoT Enterprise
I/O Interface
USB Port
  • 3 x USB-C, 1 x USB 3.0, 2 x USB 2.0 (optional)
  • 3 x USB-C, 1 x USB 3.0, 2 x USB 2.0 (optional)
  • 3 x USB-C, 1 x USB 3.0, 2 x USB 2.0 (optional)
  • 3 x USB-C, 1 x USB 3.0, 2 x USB 2.0 (optional)
  • 3 x USB-C, 1 x USB 3.0, 2 x USB 2.0 (optional)
  • 3 x USB-C, 1 x USB 3.0, 2 x USB 2.0 (optional)
Ethernet
  • 1 x RJ-45 Intel Gigabit Ethernet
    (10/100/1000), I219LM
  • 1 x RJ-45 Intel Gigabit Ethernet
    (10/100/1000), I219LM
  • 1 x RJ-45 Intel Gigabit Ethernet
    (10/100/1000), I219LM
  • 1 x RJ-45 Intel Gigabit Ethernet
    (10/100/1000), I219LM
  • 1 x RJ-45 Intel Gigabit Ethernet
    (10/100/1000), I219LM
  • 1 x RJ-45 Intel Gigabit Ethernet
    (10/100/1000), I219LM
Audio
  • 1 x M.2 slot (for Wi-Fi and Bluetooth)
  • 1 x M.2 slot (for Wi-Fi and Bluetooth)
  • 1 x M.2 slot (for Wi-Fi and Bluetooth)
  • 1 x M.2 slot (for Wi-Fi and Bluetooth)
  • 1 x M.2 slot (for Wi-Fi and Bluetooth)
  • 1 x M.2 slot (for Wi-Fi and Bluetooth)
Power Supply
Input Voltage
  • 65W via power adapter/180W with extension hub
  • 65W via power adapter/180W with extension hub
  • 65W via power adapter/180W with extension hub
  • 65W via power adapter/180W with extension hub
  • 65W via power adapter/180W with extension hub
  • 65W via power adapter/180W with extension hub
Display
Size
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
  • 15.6" TFT LCD
Max. Resolution
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
  • FHD (1920 x 1080)
Touch Screen
Type
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
Color
Color
  • Silver
  • Silver
  • Silver
  • Silver
  • Silver
  • Silver
Environment
Certification
  • CE
  • CE
  • CE
  • CE
  • CE
  • CE
Operating Temperature
  • 0~40° C
  • 0~40° C
  • 0~40° C
  • 0~40° C
  • 0~40° C
  • 0~40° C
Dimensions
Dimensions
  • 371 x 220 x 265 mm/14.6 x 8.66 x 1.04 in
  • 371 x 220 x 265 mm/14.6 x 8.66 x 1.04 in
  • 371 x 220 x 265 mm/14.6 x 8.66 x 1.04 in
  • 371 x 220 x 265 mm/14.6 x 8.66 x 1.04 in
  • 371 x 220 x 265 mm/14.6 x 8.66 x 1.04 in
  • 371 x 220 x 265 mm/14.6 x 8.66 x 1.04 in
Weight (kg)
Weight (kg)
  • Weight 4.5 kg/9.92 lb (net); 5 kg/11.02 lb (gross)
  • Weight 4.5 kg/9.92 lb (net); 5 kg/11.02 lb (gross)
  • Weight 4.5 kg/9.92 lb (net); 5 kg/11.02 lb (gross)
  • Weight 4.5 kg/9.92 lb (net); 5 kg/11.02 lb (gross)
  • Weight 4.5 kg/9.92 lb (net); 5 kg/11.02 lb (gross)
  • Weight 4.5 kg/9.92 lb (net); 5 kg/11.02 lb (gross)
Peripheral
MSR
  • Included
  • N/A
  • Included
  • N/A
  • Included
  • N/A
Stand
  • Included
  • Included
  • Included
  • Included
  • Included
  • Included
