移动医疗推车

  • AMiS-50E

    一体化移动医疗工作站

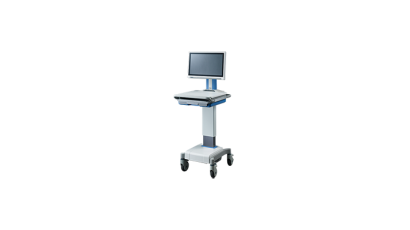

AMiS-50E

一体化移动医疗工作站

  • 高度集成计算机和电源的移动工作站，适合医疗应用环境
  • 可选带触控医疗一体机或嵌入式英特尔Core i 处理器，确保操作顺畅
  • 提供210Wh电源，电池可连续操作5小时
  • 电动升降调整高度，台面可承载30kg
  • 通过医疗安规认证
  • IPX1等级防水防尘，确保感染控制
  • 键盘灯支持低光源环境下操作
  • 4 x USB和1x RJ-45 端口在车体的颈部，方便资料传输

认证：

技术资源链接：

产品型录 技术文件下载
  • 一体化移动医疗工作站

规格

Base Cart
Footprint
  • 19.7" x 18.5" (500 mm x 470 mm)
Casters
  • 125 mm x 125 mm (Medical casters, two locking, two non-locking)
Display Holder
  • Standard VESA Mount (VESA 75/75; VESA 100/100); Weight capacity: max. 18 kg
Height Adjustment Range
  • 32.0” ~ 45.8” (813 ~ 1163 mm)
I/O Ports
  • USB3.0 ports x 4, Gigabit Ethernet Interface (RJ-45) x 1
Work Surface
  • 18.5" x 19.3" (469.9 x 489.9 mm), Extra Loading Capacity: Up to 66 lb/30 kg
Dashboard
  • Battery power button; Computer power button; LED for battery capacity indication, Lift up/ down
Keyboard & Mouse Area
  • Keyboard Size: 380 x 140 x 25 mm; Keyboard LED Light; Mouse Tray
Accessory Integration Interface
  • Neck: Dove Tail; Work Surface: DIN Rail (Right, Left and Rear)
DC Output Voltage
  • System 1: 19 VDC, Max. 6 A; System 2: 12 VDC, Max. 5 A
Power Supply
Battery Type / Capacity
  • LiFePO4 (Lithium-Iron Phosphate; LFP)
Battery Capacity
  • 400 Wh
Input Voltage
  • 100~240VAC,50~60Hz,Max4.5A
Battery Life SPAN
  • Capacity 80%, 2000cycles or 2 years (Depends on which term come first)
Battery Charge Time
  • < 3Hr 400Wh
Battery Runtime
  • 8~10 Hours under 40W power consumption
AMiS_Link
Battery capacity indicator
  • Yes
Alerts (battery capacity, temperature, warning)
  • Yes
Battery Life cycle statistics
  • Yes
Report & log file
  • Yes
Client Installation
  • Yes
Server Installation
  • Optional
Multi-language
  • Chinese Traditional Chinese Simple, English
Certifications
Safety
  • CE, FCC, & IEC60601-1 compliance
