M.2

SQF-S4B 650

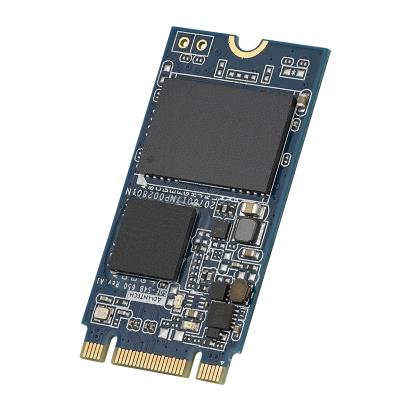

研华SQFlash 650系列 M.2 2242 SATA SSD, SATA Gen. 3 (6.0Gbps)

  • 符合SATA 3.2标准
  • 支持AES-256，符合TCG-OPAL标准
  • 支持FW写保护
  • 支持LDCP和RAID ECC 纠错
  • GUI管理工具和软件API包
  • 多种工作温度：0~70°C/-40~85°C
  • 高耐久性sTLC产品选择

认证：

技术资源链接：

产品型录 技术文件下载
  • 研华SQFlash 650系列 M.2 2242 SATA SSD, SATA Gen. 3 (6.0Gbps)

规格

SQFlash
Connector
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
  • M.2 B+M Key
Capacity
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 1TB
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 1 TB
  • 64 GB
  • 128 GB
  • 256 GB
  • 512 GB
  • 1 TB
  • 32 GB
  • 64 GB
  • 128 GB
  • 32 GB
  • 64 GB
  • 128 GB
Flash Type
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D TLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
  • 3D sTLC BiCS5
Interface
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
  • SATA
Operational Temperature
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • -20 ~ 85℃ (Filter)
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • 0 ~ 70 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
  • -40 ~ 85 °C
Shock
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
  • 1,500G, Peak / 0.5 ms
SQFlash Utility
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
  • Support
Transfer Protocol
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
  • SATA III (6.0Gb)
Vibration
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
  • 20G, Peak / 80 ~ 2,000 Hz
