eMedication Solution

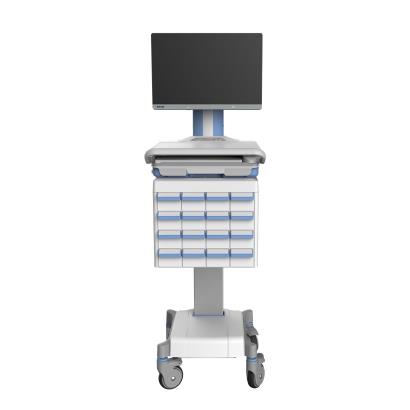

AMiS-850C 紧凑型智慧药车

AMiS-850C 带配药柜，用于移动配送和护理点应用。

  • 将药箱分配给一种药物或患者 ID
  • 电子药箱可以通过系统进行跟踪
  • 提供与任何 eMAR 集成的接口
  • 药箱可以自动打开
  • 易于拆卸和转移对日志文件的访问
  • 提供更多的移动性，适用于各种场景
  • 可靠的电池可以支持8-10小时的运行
  • 符合人体工程学的设计，带电动高度调节

认证：

技术资源链接：

产品型录
  • AMiS-850C 带配药柜，用于移动配送和护理点应用。

规格

Base Cart
Footprint
  • 19.7" x 18.5" (500 mm x 470 mm)
Casters
  • 125 mm x 125 mm (Medical casters, two locking, two non-locking)
Height Adjustment Range
  • 34" ~ 46" (868 ~ 1168 mm)
Dashboard
  • Battery power button; Computer power button; LED for battery capacity indication, Lift up/ down
Display Holder
  • Standard VESA Mount (VESA 75/75; VESA 100/100); Weight capacity: max. 18 kg
Work Surface
  • 18.5" x 19.3" (469.9 x 489.9 mm), Extra Loading Capacity: Up to 66 lb/30 kg
Keyboard & Mouse Area
  • Keyboard Size: 380 x 140 x 25 mm; Keyboard LED Light; Mouse Tray
Accessory extend Used
  • Work Surface: Din Rail (Right, Left and Rear)
eMedication Box
Level
  • 4 level
Weight
  • < 20 kg
Box Dimensions
  • W 470 * L 380 * H 410 (mm) ± 10mm
Single Bin Dimensions
  • W 95 * L 295 * H 60 (mm) ± 10mm
Design of Bins
  • 16 single RFID bins
Lock-Electronic
  • Electronic (individual) lock on each bin, controlled by PC
Lock-Mechanism
  • Manually open all the bins by key
Power Requirement
  • 12V DC, 5 A max
Operating Temperature
  • -10 °C ~ 40 °C
Storage Temperature
  • -30 °C ~ 70 °C
SDK Support
  • C#, VB
Operating System
  • Windows Based
RFID Protocol
  • ISO 15693 (NFC)
Double Bin Dimension
  • W 190 x D 295 x H 60 (mm)
Certifications
Safety
  • CE, FCC, Compliance
Power Supply
Battery Type
  • Lithium-ion/LiFePO4
Battery Type / Capacity
  • 400 Wh (The maximum energy capacity will depends on the type of battery pack)
Battery Life SPAN
  • Capacity 80%, 2000cycles or 2 years (Depends on which term come first)
Battery Charge Time
  • < 3Hr 400Wh
Power Input Voltage
  • 100 ~ 240 VAC, 50 ~ 60 H, Max 4.5A
DC Output Voltage
  • System 1: 24V/19 VDC, Max. 9.2 A
    System 2: 12 VDC, Max. 5 A
