AIR 边缘AI推理系统

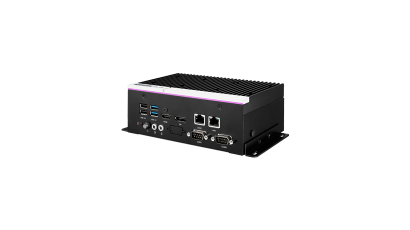

AIR-120

26 TOPS AI推理系统，采用Intel Atom处理器和Hailo-8 AI加速模块

  • Intel Core i3-N305, Processor N97, Atom x7433RE
  • 最高可支持16GB DDR5-4800 SODIMM
  • 硬盘支持M.2 2280 或 SATA 2.5寸 SSD
  • 丰富I/O接口：1x HDMI, 1x DP, 2x LAN, 4x USB, 2x COM
  • 可选I/O扩展：最多4x COM, 2x CANFD, 1x DIO
  • 支持-20~60°C 宽温工作和12-24V 宽电压
  • 可选Hailo-8 AI 加速模块，最高可达 26 TOPS，支持 Hailo AI 开发工具包

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 26 TOPS AI推理系统，采用Intel Atom处理器和Hailo-8 AI加速模块

规格

Processor
CPU
  • Intel N97
  • Intel N97
  • Intel Atom® x7433RE
  • Intel Atom® x7433RE
  • i3-N305
  • i3-N305
  • Intel N97
  • Intel N97
  • Intel Atom® x7433RE
  • Intel Atom® x7433RE
  • i3-N305
  • i3-N305
Frequency
  • 2.0 GHz
  • 2.0 GHz
  • 1.5 GHz
  • 1.5GHz
  • 1.8 GHz
  • 1.8 GHz
  • 2.0 GHz
  • 2.0 GHz
  • 1.5GHz
  • 1.5GHz
  • 1.8 GHz
  • 1.8 GHz
CPU TDP
  • 4 W
  • 4 W
  • 4 W
  • 4 W
  • 8W
  • 8W
  • 4 W
  • 4 W
  • 4 W
  • 4 W
  • 8W
  • 8W
System Chipset
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
  • Integrated in CPU
Memory
Technology
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
Capacity
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
  • Max. capacity 64GB
Expansion
M.2
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
  • 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
Ethernet
LAN1
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
LAN2
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
  • 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
Power Requirement
Input Voltage
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
Power Type
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
  • AT/ATX
Other
TPM
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
  • TPM2.0
Certification
EMC
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
Certifications
Safety
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
  • CB, UL, CCC, BSMI
EMC
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
  • CE, FCC Class B, CCC, BSMI
Environment
Storage Temperature
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
Humidity
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
  • 90% @ 40° C, non-condensing
Vibration During Operation
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
Temperature (Storage)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
Relative Humidity
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
Operating System
Linux
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
  • Ubuntu 24.04.2
Side I/O Interface
COM
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-232/485 (Default RS-232, s/w configured)
Rear I/O
M.2 M Key
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
Front I/O Interface
Audio
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
  • 2 (Line-Out, Mic-In)
Software Support
Linux
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
  • Ubuntu 24.04
