Type 6

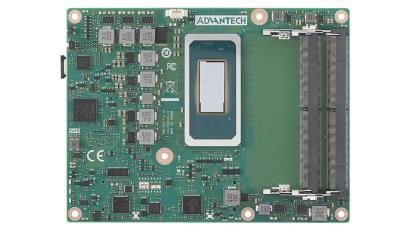

SOM-5885

Intel®第14代Core 处理器(代号：Meteor Lake-U/H) ，COM Express Basic Type6模块

  • COM Express®R3.1 Basic 模块 Type 6 引脚
  • Intel 第14代Core处理器，高达14C/20T
  • Intel Xe LPG图形高达128EU, 4个独立4K显示屏
  • 双通道DDR5 5600MT/s 高达96GB SO-DIMM
  • 丰富I/O扩展：2.5GbE, PCIe Gen4, USB4/TBT4和USB3.2 Gen2, SATA3.0 支持双BIOS 保护
  • 支持双BIOS 保护
  • 支持iManager，嵌入式软件API和 DeviceOn

认证：

技术资源链接：

产品型录 技术文件下载
  • Intel®第14代Core 处理器(代号：Meteor Lake-U/H) ，COM Express Basic Type6模块

规格

Form Factor
Form Factor
  • COM Express Basic
  • COM Express Basic
  • COM Express Basic
Pin-out Type
  • COM Express R3.1 Type 6 compatible
  • COM Express R3.1 Type 6 compatible
  • COM Express R3.1 Type 6 compatible
Processor
CPU
  • Intel® Core™ Ultra 7 165H
  • Intel® Core™ Ultra 7 155H
  • Intel® Core™ Ultra 7 processor 155U
Base Frequency
  • 1.4GHz/0.9GHz
  • 1.4GHz/0.9GHz
  • 1.7GHz/1.2GHz
Max Turbo Frequency
  • 5GHz/3.8GHz
  • 4.8GHz/3.8GHz
  • 4.8GHz/3.8GHz
Core Number
  • 14C (6P+8E)
  • 14C (6P+8E)
  • 10C (2P+8E)
LLC
  • 24MB
  • 24MB
  • 12MB
TDP
  • 45W
  • 45W
  • 28W
CPU TDP
  • 20W-45W
  • 20W-45W
  • 12-28W
BIOS
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
Memory
Technology
  • DDR5
  • DDR5
  • DDR5
Max Speed
  • 5600 MT/s
  • 5600 MT/s
  • 5600 MT/s
Max. Capacity
  • Up to 96GB
  • Up to 96GB
  • Up to 96GB
Channel/ Socket
  • Dual Channels / 2 Sockets
  • Dual Channels / 2 Sockets
  • Dual Channels / 2 Sockets
ECC Support
  • No
  • No
  • No
Graphics
Controller
  • Intel® Xe LPG
  • Intel® Xe LPG
  • Intel® Xe LPG
EU
  • 128
  • 128
  • 64
Max. Frequency
  • 2.3GHz
  • 2.25GHz
  • 1.95GHz
3D/HW Acceleration
  • HW Encode: Supports AVC/H264, JPEG, HEVC/H265, VP9 and AV1.
    HW Decode: Supports MPEG2, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9 and AV1
  • HW Encode: Supports AVC/H264, JPEG, HEVC/H265, VP9 and AV1.
    HW Decode: Supports MPEG2, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9 and AV1
  • HW Encode: Supports AVC/H264, JPEG, HEVC/H265, VP9 and AV1.
    HW Decode: Supports MPEG2, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9 and AV1
I/O
USB 4
  • Up to 2 ports, Co-lay with DDI, Support by SOM-MZ20
  • Up to 2 ports, Co-lay with DDI, Support by SOM-MZ20
  • Up to 2 ports, Co-lay with DDI, Support by SOM-MZ20
USB 3.2
  • 4
  • 4
  • 4
USB2.0
  • 8
  • 8
  • 8
SPI Bus
  • Yes
  • Yes
  • Yes
GPIO
  • 8-bit
  • 8-bit
  • 8-bit
LPC
  • Yes
  • Yes
  • Yes
Audio
  • HD Audio Interface
  • HD Audio Interface
  • HD Audio Interface
Watchdog timer
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
  • 65536 level, 0 ~ 65535 sec
COM Port
  • 2 (2-wire)
  • 2 (2-wire)
  • 2 (2-wire)
TPM
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
CANBus
  • Optional
  • Optional
  • Optional
Power
Power Type
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
  • ATX: Vin, VSB; AT: Vin
Power Supply Voltage
  • Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V
  • Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V
  • Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V
Power Consumption (Max)
  • TBD
  • TBD
  • TBD
Power Consumption (Idle)
  • TBD
  • TBD
  • TBD
Environment
Operational Temperature
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
Storage Temperature
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
Humidity
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Vibration Resistance
  • 3.5 Grms
  • 3.5 Grms
  • 3.5 Grms
Mechanical
Dimensions
  • 125 x 95 mm (4.92" x 3.74")
  • 125 x 95 mm (4.92" x 3.74")
  • 125 x 95 mm (4.92" x 3.74")
