多功能医用电脑

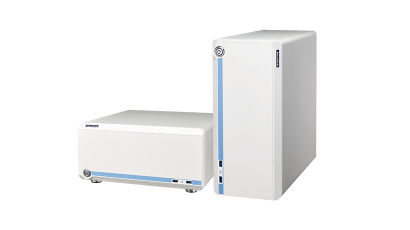

USM-500

多功能医疗电脑

  • 时尚美观、用户友好型设计，适合医院环境
  • 支持英特尔® 第12/13/14代酷睿™ i7/i5/i3处理器，搭配Intel R680E芯片组
  • 丰富的扩展能力，满足多样化医疗应用需求
  • 兼容Windows 10/11/LTSC/Linux系统及NVIDIA AI（Clara SDK）平台
  • 配备M.2 2280扩展插槽
  • 支持HDMI+DP多屏输出接口
  • 支持软件RAID 0/1/5/10磁盘阵列及TPM2.0安全加密

认证：

技术资源链接：

产品型录 技术文件下载
  • 多功能医疗电脑

规格

Processor
CPU
  • Intel 12th/13th Gen Processor (i3/i5/i7 TDP 65W)
Chipset
  • Intel R680E
Processor System
Memory
  • 4 slots U-DIMM sockets support up to 128GB DDR5 4800MHz
Operating System
Embedded OS Support
  • Windows 10 LTSC/11 Linux and windows 2021 server (By project base)
Expansion Slot
PCIe x 4 (Gen4)
  • 4GB/s per direction
PCIe x 8 (Gen3)
  • 8GB/s per direction
PCIe x 16 (Gen3)
  • 16GB/s per direction
M.2 (M key)
  • 1 (Type :2280 NVMe PCIex4 and M.2 support)
M.2(E key)
  • 1 (Type 2230 for WIFI)
Serial
  • 5 (5 x RS-232,); 1 (1 x RS-232/422/485 with auto flow control)
Physical Characteristics
Dimensions (W x D x H)
  • 320 x 329.5 x 145 mm
Weight
  • 10 kg
I/O
HDMI
  • HDMI 2.0a 4096 x 2160 @60 Hz
eDP
  • 1, Internal pin header, supports max. resolution 3840 x 2160 @ 60 Hz (Internal pin header)
Display Port
  • Supports max resolution 4096 x 2304 @ 60 Hz
USB
  • 12 (7 x USB 3.2 Type A (2 front, 5 rear)/1 x USB 3.2 Type C/4 x USB 2.0 Type A)
Storage
HDD
  • 2.5" SATAIII 5KRPM 128M up to 2TB
    (Support 2 slot 2.5 HDD/SDD by BOM option)
CD Drive (Optional)
  • SLIM 8X SATA DVD+/-RW DL BLACK (By project base)
I/O Interface
HDMI
  • 1
RS232
  • 1
Rear I/O Interface
Display Port
  • 2
Front I/O Interface
RJ-45
  • 4 (LAN1: 1GbE Intel I219-LM, LAN2: 2.5GbE Intel I226LM, LAN3: 2.5GbE Intel I226LM, LAN4: 2.5GbE Intel I226LM
Audio
Audio
  • 3 (Line-in/Line-out/Mic-in)
Power Supply
Power Supply
  • Input Voltage: internal PSU 100-240V 8-4) 47~63 Hz, maximum output power 900W
    Output Voltage: +3.3, 20A; +5V 20A; +12V1, 16A; +12V2, 16A; +12V3 16A; +5Vsb, 3A; -12V, 0.5A; -5V, 0.2A
Warranty
-
  • 2 years
Certification
  • CE, FCC, CCC, IEC/EN 60601-1 3.2th, IEC/EN 60601-1-2 4.1th, RED
