ITxPT Certified Ethernet Switches

  • EKI-9508G-ST

    ITxPT M12 8GE非网管型交换机，9~36 VDC

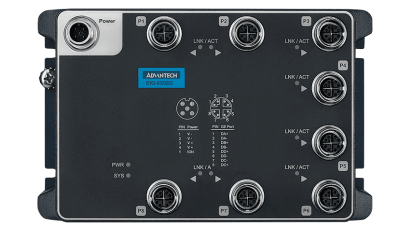

EKI-9508G-ST

ITxPT M12 8GE非网管型交换机，9~36 VDC

  • M12连接器，IP67坚固外壳
  • 符合ITxPT、E-Mark标准
  • 符合ECE R118和ECE R10
  • 支持PoE IEEE802.3af/at（PoE型号）
  • 宽标称功率输入范围：12/24VDC；工作电源输入范围：9-36VDC
  • 尺寸紧凑，适合不同的狭窄空间
  • 工作温度：-40~70°C
  • 支持动力点火
  • 支持电源延迟关闭

技术资源链接：

产品型录 技术文件下载
  • ITxPT M12 8GE非网管型交换机，9~36 VDC

特点和优势

The new EKI-9508 and EKI-9510 M12 Ethernet switches are built for the future of intelligent transportation

The new EKI-9508 and EKI-9510 M12 Ethernet switches are built for the future of intelligent transportation, delivering ultra-reliable connectivity in the toughest environments. Available in 8-port and 10-port models, they are certified by ITxPT, E-Mark, and EN50155, ensuring seamless deployment across public transport, in-vehicle, and railway networks. Designed for maximum durability, their IP67-rated housing and IEC 61373 compliance guarantee resilience against shock, vibration, and extreme conditions. Offering both managed and unmanaged options with Fast or Gigabit Ethernet, PoE models deliver up to 90W to power cameras, wireless APs, and more. With compact and secure M12 connectors, installation is effortless—even in space-constrained setups—making these switches the ultimate choice for mission-critical mobility networks.

Engineered for Intelligent Mobility with Reliable Network Connectivity

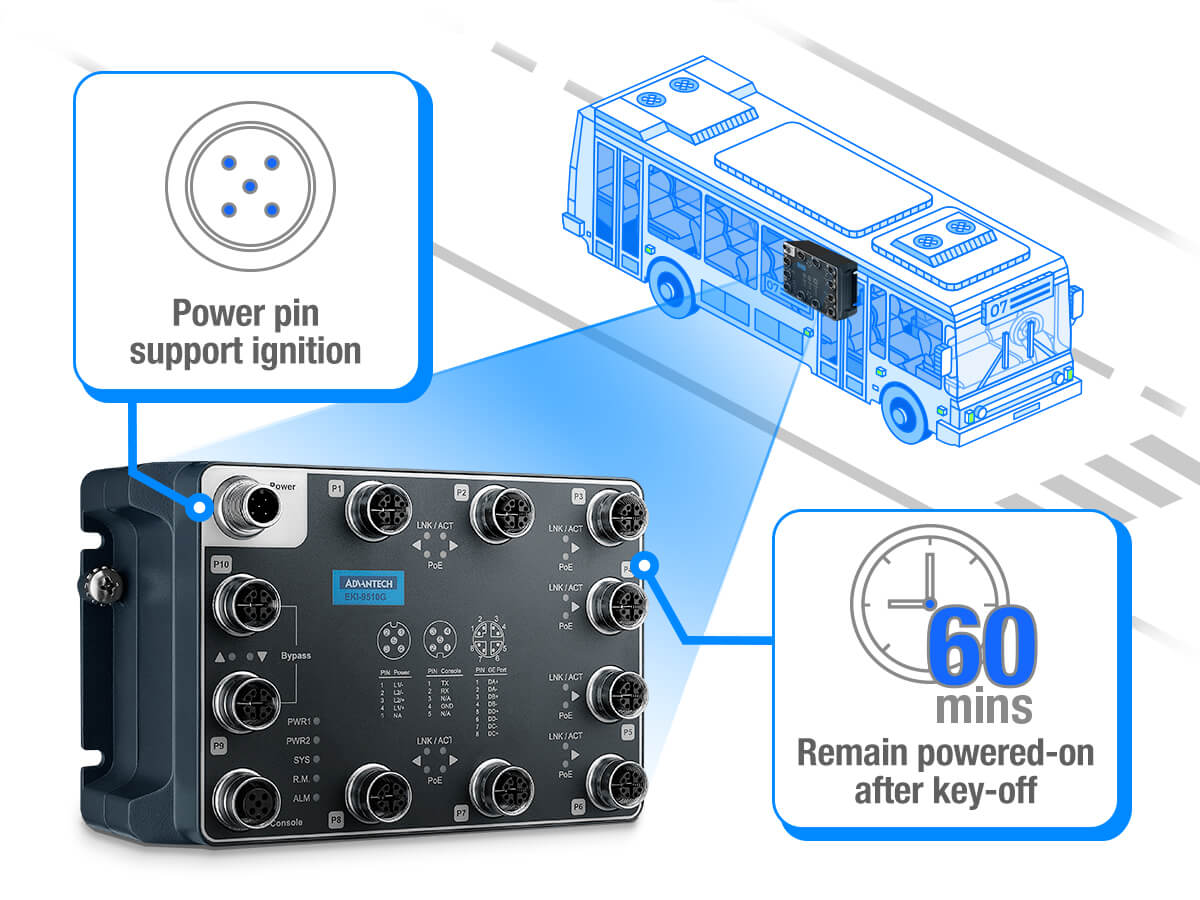

Supports Vehicle Ignition with Delayed Power-Off

Supports Vehicle Ignition with Delayed Power-Off

  • The EKI-9508/9510-ST series supports the ignition function, allowing it to recognize the vehicle’s ignition on/off status.
  • The Ethernet switches remain powered on for 60 minutes after key-off.

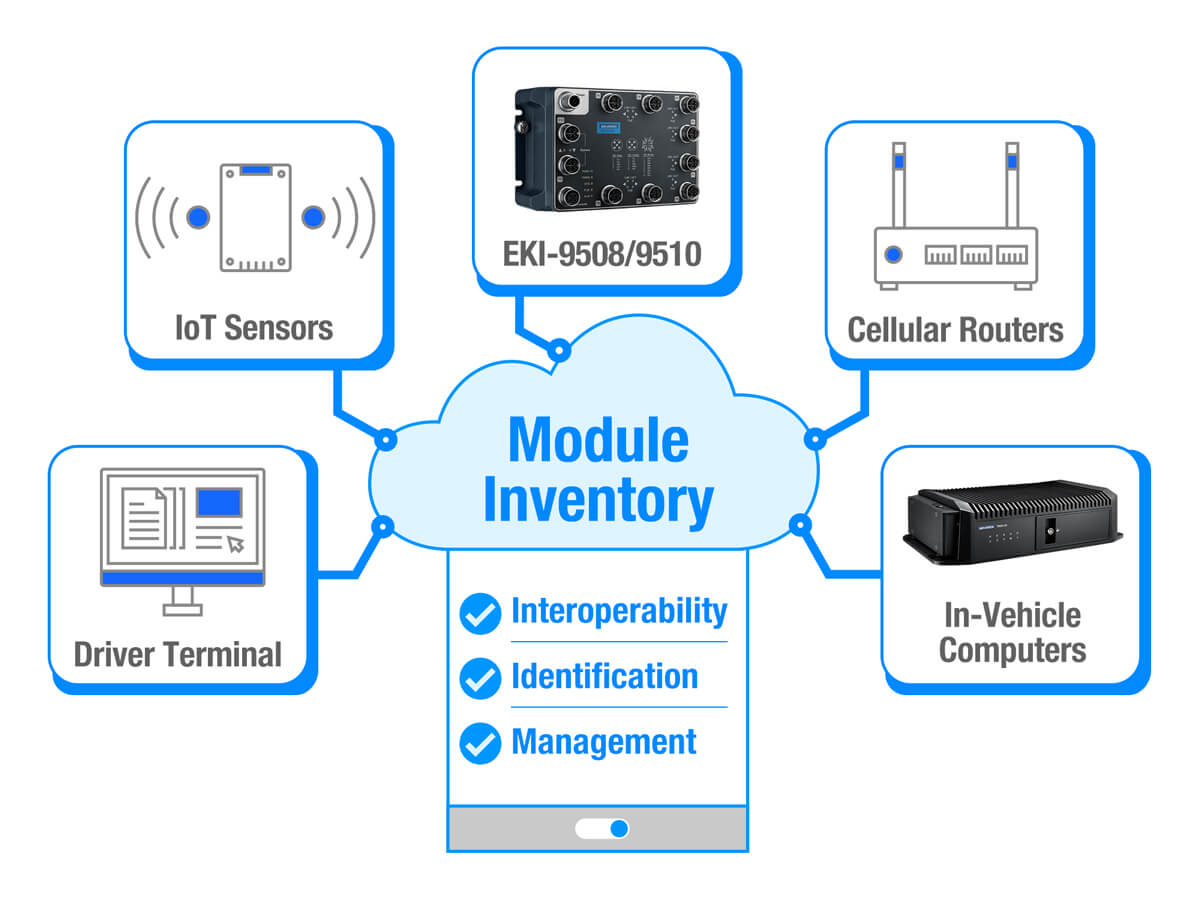

Supports Software ‘Module Inventory’

Supports Software ‘Module Inventory’

The ITxPT framework focuses on interoperability between different systems and vendors. A module inventory supports this by ensuring that all modules are correctly identified and can communicate with each other across different platforms.

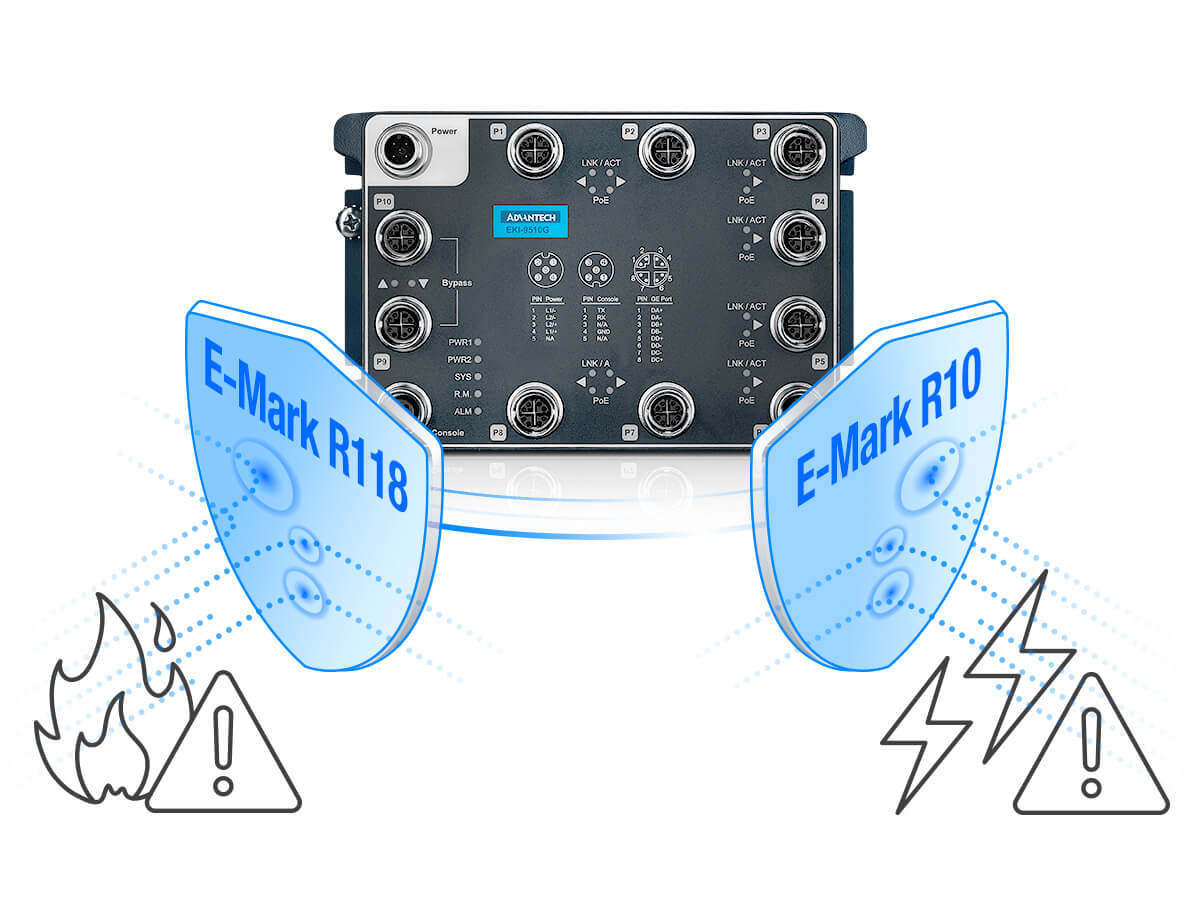

E-Mark R10 & R118 Certification

E-Mark R10 & R118 Certification

  • E-Mark R10 primarily concerns Electromagnetic Compatibility (EMC).
  • E-Mark R118 concerns the burning behavior of materials and tests their resistance to flame propagation.

With R10 and R118 certifications, the EKI-9508/9510-ST series is approved for EMC and fire protection in in-vehicle applications.

Compact Size

Compact Size

Easily fits into original space for refurbishment or upgrade demands.

IP67 Rating

IP67 Rating

Suitable for outdoor and industrial environments exposed to harsh elements.

M12 Connectors

M12 Connectors

Provides strong, vibration-resistant connections that reduce the risk of disconnection or failure.

Wide Operating Temperatures

Wide Operating Temperatures

 Ensures reliable performance in extreme conditions.

Our Versatile Applications Across In-Vehicle Communications

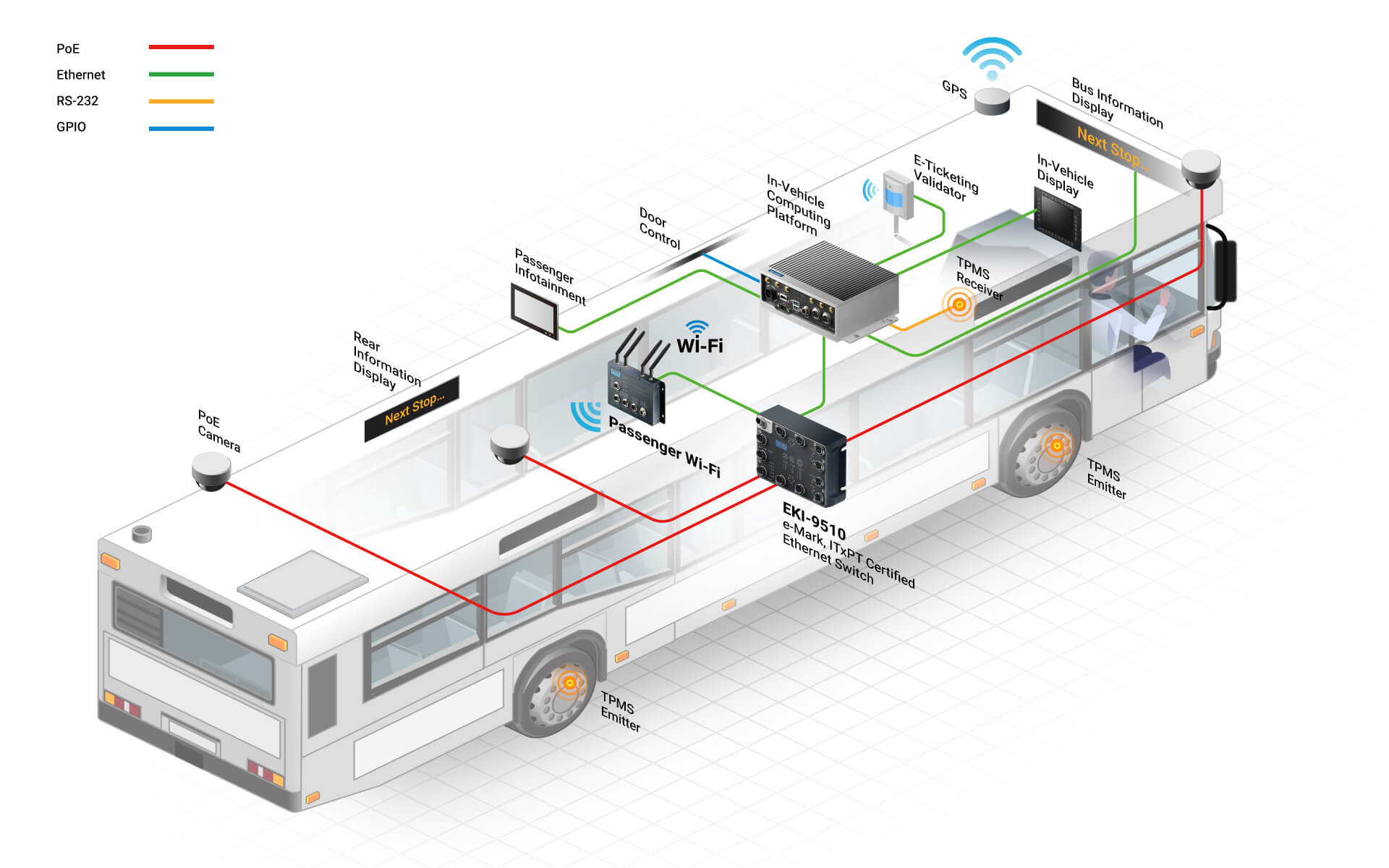

Intelligent Bus

Intelligent Bus

ITxPT certification guarantees that the EKI-9508/9510-ST series seamlessly connects with other certified systems, fostering compatibility and expanding partnership opportunities in the global transportation sector.

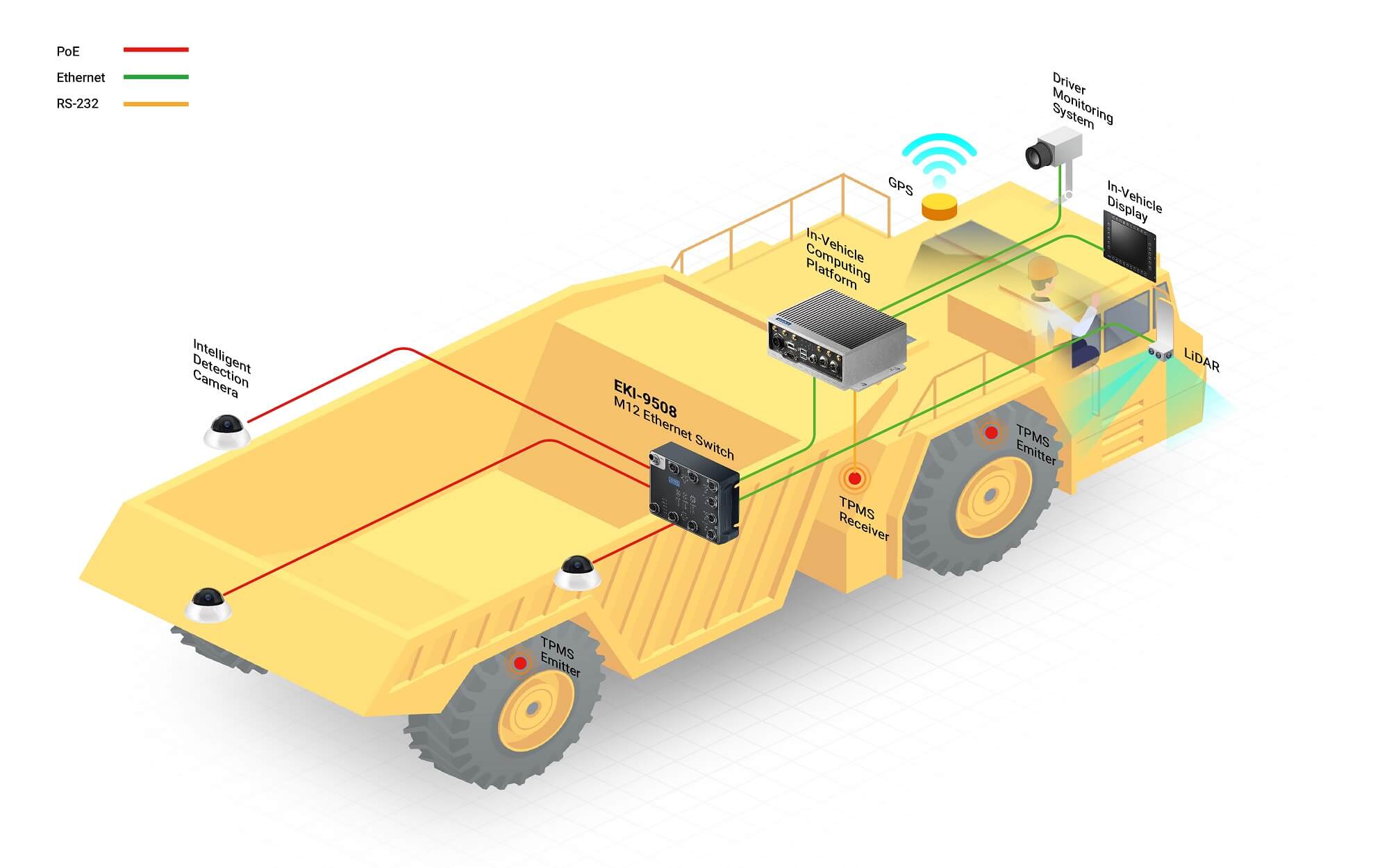

Heavy Duty Vehicle

Heavy Duty Vehicle

The EKI-9508/9510 series is engineered with M12 lockable connectors, providing rugged, vibration-resistant connectivity to maintain reliable performance in demanding conditions.
