4" EPIC嵌入式单板电脑

  • MIO-4370

    基于第12代Intel Core处理器（Alder Lake-S系列，LGA1700 socket CPU）， 4" EPIC 单板电脑

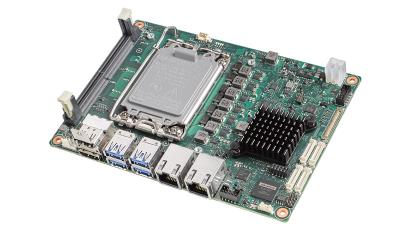

MIO-4370

基于第12代Intel Core处理器（Alder Lake-S系列，LGA1700 socket CPU）， 4" EPIC 单板电脑

  • 第12代Intel Core处理器，高达16核，TDP 35W
  • 灵活socket CPU (LGA1700)并支持标准风扇散热
  • DDR5 4800高达32GB ，3独立显示：双HDMI+eDP
  • 双高速2.5G以太网与TSN，2x COM，CANbus，TPM
  • 双 M.2 M-Key（支持NVMe），M.2 E-Key 扩展
  • 支持Windows 10 LTSC和Ubuntu 20.04 LTS，嵌入式软件API 和 WISE-DeviceOn

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 基于第12代Intel Core处理器（Alder Lake-S系列，LGA1700 socket CPU）， 4" EPIC 单板电脑

规格

Processor
CPU
  • Intel® 12th & 13th Generation Core™ I processor
  • Intel® 12th & 13th Generation Core™ I processor
CPU TDP
  • 35W
  • 35W
Max Turbo Frequency
  • Up to 5.0 GHz
  • Up to 5.0 GHz
Core Number
  • Up to 24C
  • Up to 24C
Thread
  • Up to 32T
  • Up to 32T
Chipset
  • R680E
  • H610E
LLC
  • Up to 36MB
  • Up to 36MB
BIOS
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
Memory
Technology
  • DDR5 4800 MHz
  • DDR5 4800 MHz
Max. Capacity
  • SODIMM up to 32GB
  • SODIMM up to 32GB
Channel/ Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
ECC Support
  • Yes
  • No
Graphics
Controller
  • Intel® UHD Graphics 770/730
  • Intel® UHD Graphics 770/730
Max. Frequency
  • Up to 1.65 GHz
  • Up to 1.65 GHz
Base Frequency
  • 300 MHz
  • 300 MHz
Execution Unit
  • Up to 32
  • Up to 32
3D/HW Acceleration
  • DX12, OGL4.5, OCL2.1, HW Encode: AVC/H264, JPEG, HEVC/H265, VP9, HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
  • DX12, OGL4.5, OCL2.1, HW Encode: AVC/H264, JPEG, HEVC/H265, VP9, HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
Display
LCD (TTL/LVDS/eDP)
  • 1 x eDP 1.4b, up to 5120 x 3200 @60Hz, 24bpp
  • 1 x eDP 1.4b, up to 5120 x 3200 @60Hz, 24bpp
HDMI
  • 2 x HDMI 1.2, up to 1920 x 1200 @60Hz, 24bpp
  • 2 x HDMI 1.2, up to 1920 x 1200 @60Hz, 24bpp
Multi-Display
  • 3 simultaneous displays via eDP + HDMI + HDMI
  • 3 simultaneous displays via eDP + HDMI + HDMI
Ethernet
Speed
  • Up to 2.5GbE
  • Up to 2.5GbE
Controller
  • LAN1/LAN2: Intel I225
  • LAN1/LAN2: Intel I225
TSN support
  • Yes
  • Yes
Connector
  • 2 RJ45 on Rear I/O
  • 2 RJ45 on Rear I/O
Rear I/O
Ethernet
  • 2
  • 2
HDMI
  • 2
  • 2
USB
  • 4 x USB 3.2 Gen 2x1 (10Gbps)
  • 2 x USB 3.2 Gen 2x1 (10Gbps)+ 2 x USB 3.2 Gen 1x1 (5Gbps)
M.2 M Key
  • 2 x M-Key 2280 (PCIe Gen. 4 x4)
  • 1 x M-Key 2280 (PCIe Gen. 4 x4)
M.2 B Key
  • 0
  • 1 x B-Key 3042 (only USB 2.0 interface) with SIM slot
M.2 E Key
  • 1 x E-Key 2230 (PCIex1, USB2.0)
  • 1 x E-Key 2230 (PCIex1, USB2.0)
Internal I/O
Serial
  • 2 x RS-232/422/485 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
  • 2 x RS-232/422/485 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
CAN bus
  • 1
  • 1
USB2.0
  • 2
  • 2
GPIO
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
I2C
  • 1 (Share with SMBus)
  • 1 (Share with SMBus)
FAN
  • 1 x 4-Wire Smart Fan, 12V@2A
  • 1 x 4-Wire Smart Fan, 12V@2A
Front Panel Control
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
Security
TPM
  • Discrete TPM 2.0
  • fTPM support by Intel® Platform Trust Technology
Audio
CODEC
  • High Definition Audio (HD), Line-in, Line out, Mic-in
  • High Definition Audio (HD), Line-in, Line out, Mic-in
Watchdog Timer
  • 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer
  • 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer
Power
Connector
  • ATX 2x2p
  • ATX 2x2p
Power Type
  • AT / ATX
  • AT / ATX
Power Supply Voltage
  • Supports single 12V input, ± 10%
  • Supports single 12V input, ± 10%
Battery
  • Lithium 3 V / 210 mAH
  • Lithium 3 V / 210 mAH
Environment
Non-Operational Temperature
  • -40 ~ 85° C and 60° C @ 95% RH Non-Condensing
  • -40 ~ 85° C and 60° C @ 95% RH Non-Condensing
Operational Temperature
  • 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
  • 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Humidity
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Vibration Resistance
  • 3.5 Grms
  • 3.5 Grms
Certification
EMC
  • CE, FCC
  • CE, FCC
Physical Characteristics
Dimensions (L x W)
  • 165 x 114 mm (6.5" x 4.5")
  • 165 x 114 mm (6.5" x 4.5")
Weight
  • 320g (w/o CPU & Cooler)
  • 320g (w/o CPU & Cooler)
Embedded OS
OS Support
  • Win10/Ubuntu
  • Win10/Ubuntu
