GPU 服务器

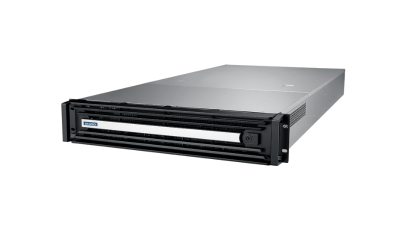

SKY-620V3

Intel® 4th/5th Gen Xeon® Scalable 2U 机架式高密度服务器

  • 处理器: 双路第4/5代 Intel Xeon Scalable 处理器
  • 内存: 16 x DDR5 4800MHz ECC RDIMM/ Intel Optane DC 持久内存, 最高2TB
  • 远程管理：IPMI功能支持
  • 扩展: 支持 4 x PCIe x16 双倍宽卡 + 2 x PCIe x16 double width cards or 4 x PCIe x8 single width FH/10.5" + 2 x PCIe x8 single width FH/HL cards
  • PSU:2700W 1+1冗余电源，具有80PLUS钛级认证

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • Intel® 4th/5th Gen Xeon® Scalable 2U 机架式高密度服务器

规格

Processor System
CPU
  • 5th/4th Gen Intel® Xeon® Scalable processors
Chipset
  • Intel® C741
TDP
  • Up to 225 W
Core Number
  • 2
Memory
Type and Speed
  • DDR4 3200 MHz RDIMM
Channel
  • 16
System Max Capacity
  • 2 TB
Expansion
PCIe/PCI Module
  • 4 x PCIe 5.0 x16 double-deck cards, 2 x PCIe 5.0 x16 double width cards or 4 x PCIe 5.0 x8 single width FH/10.5", 2 x FHHL PCIe 5.0 x8 single width cards
Front Storage
2.5" HDD/SSD
  • 8 x 8 SAS/SATA port, maximum up to 6 NVMe drives support)
Front Panel & I/O
USB
  • 2 x USB 2.0
Rear I/O
Display
  • 1 x VGA port
USB
  • 2 x USB 3.2 Gen1
Cooling
System Fan
  • 2 (80 x 38 High-speed fans), 4 (60 x 38 High-speed fans)
Power Supplies
Watts
  • 2700 W
System Management
Controller
  • Aspeed AST2500
IPMI
  • IPMI2.0 compliant Advantech iManager
iKVM
  • Support (Advantech IPMI Core)
Watchdog Timer
Output
  • System Reset
Interval
  • Programmable 1 ~ 255 sec/min
Environment
Operating Temperature
  • 0 ~ 35 °C (32 ~ 95 °F)
Non-Operating Temperature
  • -20 ~ 60 °C (-4 ~ 140 °F)
Operating Humidity
  • 95% @ 40 °C
Non-Operating Humidity
  • 95% @ 60° C
Operating Vibration
  • 0.75 Grms
Non-Operating Vibration
  • 2 Grms
Operating Shock
  • 10 G (with 11 ms duration, half sine wave)
Physical Characteristics
Form Factor
  • 2U
Dimensions (W x H x D)
  • 438 x 88 x 760 mm (17.24" x 3.46" x 29.92")
Weight
  • 24 kg
Installation (Mounting)
  • Rackmount
