手术显示器

PAX-327

27” FHD/4K 医疗显示器

  • 27吋全平面设计搭配AR镀层
  • 高亮度、高对比度
  • 全⾼清分辨率(1920 x 1080) 或 4K 分辨率 (3840 x 2160)
  • HDMI 2.0, DP 1.2, DVI, RGB 支持高达 1920 x 1080或 3840 x 2160 @ 60 Hz
  • SDI 支持高达 1920 x 1080 或 3840 x 2160 @ 60Hz
  • 支持多种视频系统: NTSC, PAL, SECAM
  • 提升影像品质: 14-bit显⽰查找表(LUT) 、符合DICOM Part 14 GSDF 规范、 ⽀持DICOM清晰、蓝⾊模式
  • 搭配AVAS，可选配升级至基于IP的视频串流显示器
  • 可选触摸面板

认证：

技术资源链接：

产品型录 技术文件下载
  • 27” FHD/4K 医疗显示器

规格

LCD
Screen Size
  • 27" (597.89 x 336.31 mm)
  • 27" (596.16 x 335.34 mm)
  • 27" (596.16 x 335.34 mm)
  • 27" (596.16 x 335.34 mm)
Resolution
  • 1920 x 1080
  • 1920 x 1080
  • 3840 x 2160
  • 3840 x 2160
Aspect Ratio
  • 16:9
  • 16:9
  • 16:9
  • 16:9
Pixel Pitch
  • 0.3114 x 0.3114 mm
  • 0.3114 x 0.3114 mm
  • 0.15525 x 0.15525 mm
  • 0.15525 x 0.15525 mm
Viewing Angle
  • 178°/ 178°
  • 178°/ 178°
  • 178°/ 178°
  • 178°/ 178°
Contrast Ratio (Typ.)
  • 1000 : 1
  • 1000 : 1
  • 1000 : 1
  • 1000 : 1
Native Luminance (Typ.)
  • 900 cd/m2, 300 cd/m2
  • 900 cd/m2, 300 cd/m2
  • 800 cd/m2
  • 800 cd/m2
Color Depth
  • 10-bit 1.07B Colors
  • 8-bit 16.7M Colors / 10-bit 1.07B Colors
  • 10-bit 1.07B Colors
  • 10-bit 1.07B Colors
Display Mode
  • AHVA
  • AHVA
  • AHVA
  • AHVA
Response Time
  • 14ms (Tr + Tf)
  • 14ms (Tr + Tf)
  • 16ms (Tr + Tf)
  • 16ms (Tr + Tf)
LCD Specification
Glass
  • Anti-Reflection
  • Anti-Reflection
  • Anti-Reflection
  • Anti-Reflection
Optional Touchscreen
Type
  • Projected Capacitive 10-point (AG)
  • Projected Capacitive 10-point (AG)
  • Projected Capacitive 10-point (AG)
  • Projected Capacitive 10-point (AG)
Input
DC Power Input DC Jack x 1
  • DC 24V, 6.25 A
  • DC 24V, 6.25 A
  • DC 24V, 6.25 A
  • DC 24V, 6.25 A
HDMI 2.0 Input HDMI Jack x 1 (Type A)
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
DVI Input DVI Jack x 1 (Type D)
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
RS-232C D-Sub Jack x 1
  • Service Port
  • Service Port
  • Service Port
  • Service Port
SDI1 Input BNC Jack x 1
  • Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1
  • Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1
  • Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max.
  • Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1
Output
HDMI 2.0 Output/HDMI Jack x 1 (Type A)
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
DVI Output/DVI Jack x 1 (Type D)
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
  • Digital RGB: TMDS, 3840 x 2160 @ 30 Hz max.
DC Power Output DC Jack x 1
  • DC 5 V or DC 12 V
  • DC 5 V or DC 12 V
  • DC 5 V or DC 12 V
  • DC 5 V or DC 12 V
DP 1.2 Output/DP Jack x 1
  • DisplayPort 1.2 MST or Daisy chain
  • DisplayPort 1.2 MST or Daisy chain
  • DisplayPort 1.2 MST or Daisy chain
  • DisplayPort 1.2 MST or Daisy chain
Optional Output
SDI2 Output / BNC Jack x 1
  • by request only
  • by request only
  • by request only
  • by request only
Optional Input
SDI2 Input / BNC Jack x 1
  • -
  • -
  • -
  • -
Environment
Temperature
  • Operational: 0~40° C / Storage: -20~60° C
  • Operational: 0~40° C / Storage: -20~60° C
  • Operational: 0~40° C / Storage: -20~60° C
  • Operational: 0~40° C / Storage: -20~60° C
Humidity
  • Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
  • Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
  • Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
  • Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
Pressure
  • Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
  • Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
  • Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
  • Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
Power
Rating
  • DC 24 V, 6.25 A max.
  • DC 24 V, 6.25 A max.
  • DC 24 V, 6.25 A max.
  • DC 24 V, 6.25 A max.
Consumption
  • 80W max.
  • 66.8 W
  • 108.3 W
  • 96.5 W max.
Physical Characteristics
IP Ratings
  • Front IP65 / Top IPX1
  • Front IP65 / Top IPX1
  • Front IP65 / Top IPX1
  • Front IP65 / Top IPX1
VESA Mount
  • 100 x 100; 75 x 75 mm
  • 100 x 100; 75 x 75 mm
  • 100 x 100; 75 x 75 mm
  • 100 x 100; 75 x 75 mm
Dimensions (W x D x H)
  • 663.83 x 73.55 x 418.11 mm
  • 663.83 x 73.55 x 418.11 mm
  • 663.83 x 73.55 x 418.11 mm
  • 663.83 x 73.55 x 418.11 mm
Weight
  • 9.72 kg
  • 9.72 kg
  • 9.72 kg
  • 9.72 kg
Certifications
-
  • CE, MDD
  • CE, MDD
  • CE, MDD
  • CE, MDD
Warranty
-
  • 3 years
  • 3 years
  • 3 years
  • 3 years
Accessories
-
  • Power Adapter
  • Power Adapter
  • Power Adapter
  • Power Adapter

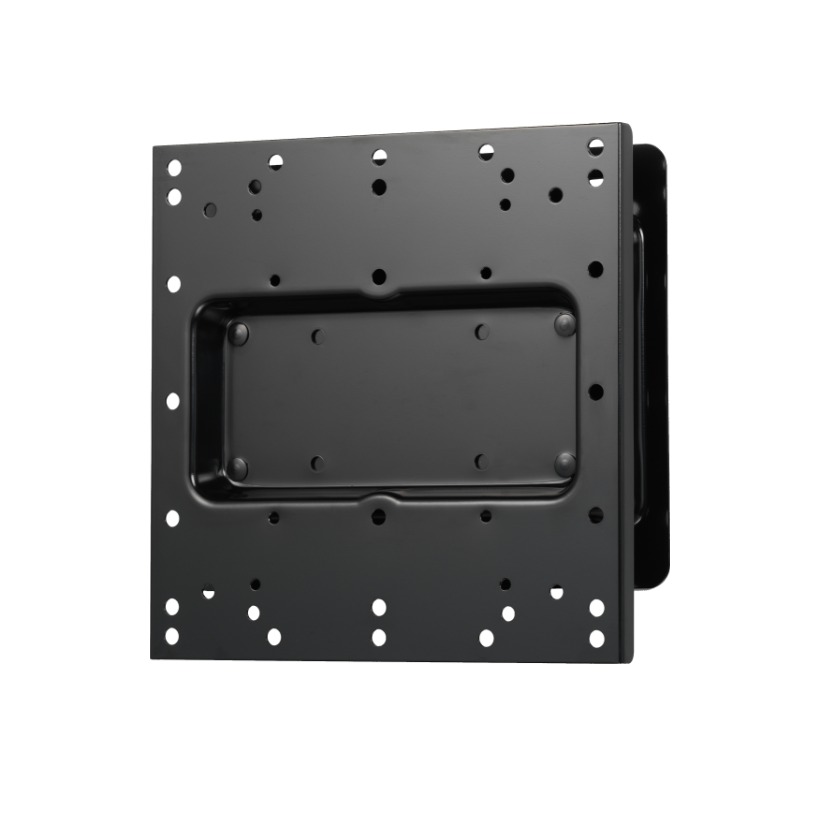

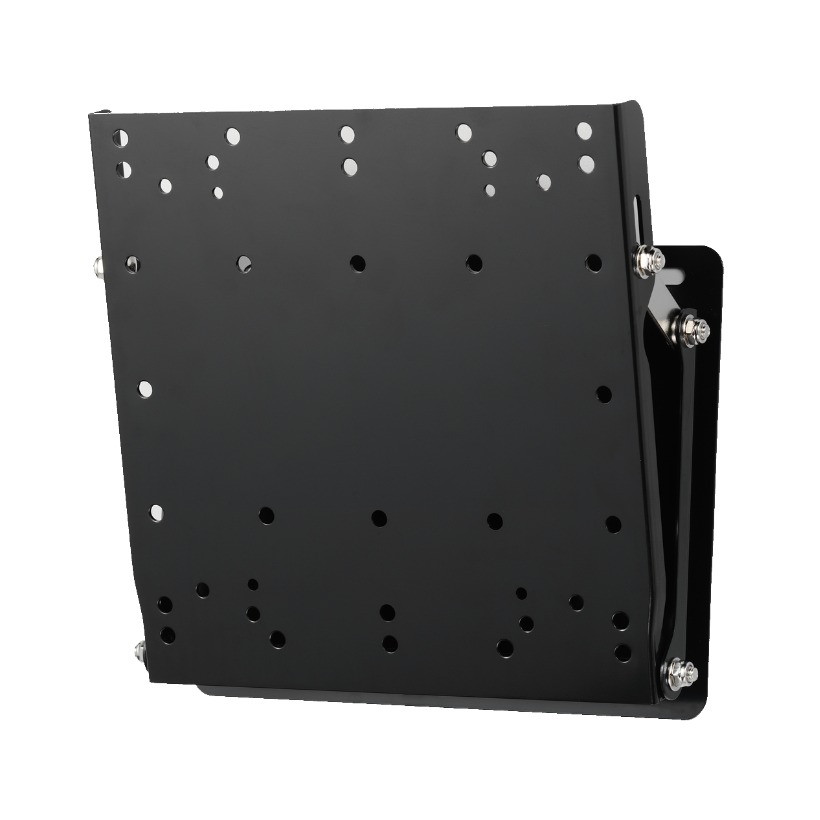

配件
