UBX-300系列

  • UBX-310

    无风扇多功能服务器
  • UBX-330M

    采用英特尔®酷睿™ Ultra 7/5处理器并支持I/O扩展的NUC尺寸边缘计算机，特定型号可选英特尔锐炫显卡和vPro企业级功能。

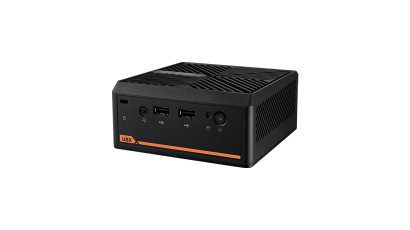

UBX-330M

采用英特尔®酷睿™ Ultra 7/5处理器并支持I/O扩展的NUC尺寸边缘计算机，特定型号可选英特尔锐炫显卡和vPro企业级功能。

  • 配备三个AI引擎,实现低延迟、快速响应
  • 紧凑的NUC尺寸立方体形态，提供灵活多样的I/O扩展支持
  • 搭载Hailo-8 M.2 AI模块，最高提供26 TOPS算力
  • 特定型号可选英特尔®锐炫™显卡及vPro®企业版或基础版平台
  • 支持先进的备份和故障恢复技术
  • 通过M.2扩展支持AI模块，实现高效边缘AI推理
  • 高效散热解决方案，静音设计

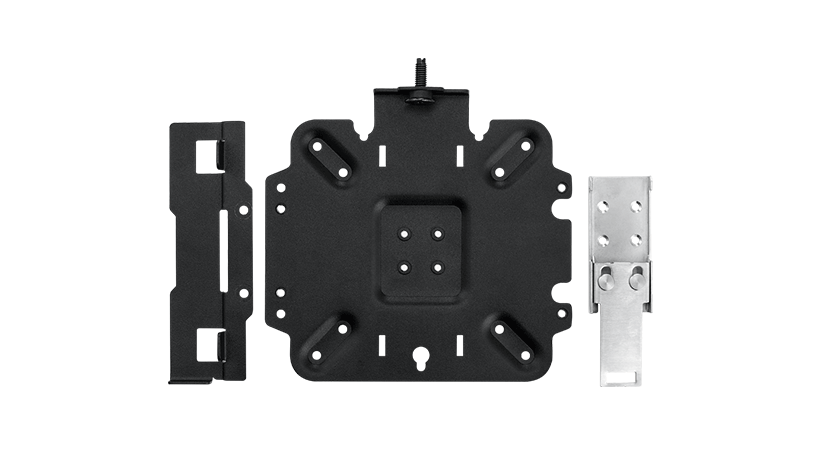

  • 配备多用途安装套件，兼容VESA壁挂、墙面安装、立柱安装、DIN导轨及ARM支架
  • 可选专用电源适配器托架，优化走线布局

认证：

技术资源链接：

产品型录 技术文件下载
  • 采用英特尔®酷睿™ Ultra 7/5处理器并支持I/O扩展的NUC尺寸边缘计算机，特定型号可选英特尔锐炫显卡和vPro企业级功能。

规格

Processor System
CPU
  • Intel® Core™ Ultra 5 Processor 125H
  • Intel® Core™ Ultra 5 Processor 135U
  • Intel® Core™ Ultra 7 Processor 155U
  • Intel® Core™ Ultra 5 Processor 125H
  • Intel® Core™ Ultra 5 Processor 135U
  • Intel® Core™ Ultra 7 Processor 155U
OS
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
Intel vPro®
  • Intel vPro® Essentials Platform
  • Intel vPro® Enterprise Platform
  • Intel vPro® Essentials Platform
  • Intel vPro® Essentials Platform
  • Intel vPro® Enterprise Platform
  • Intel vPro® Essentials Platform
Memory
Technology
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
Max. Capacity
  • 48 GB
  • 48 GB
  • 48 GB
  • 48 GB
  • 48 GB
  • 48 GB
Storage
M.2
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
Graphics
Controller
  • Intel® Arc™ Graphics 2.2GHz
  • Intel® Graphics 1.9GHz
  • Intel® Graphics 1.95GHz
  • Intel® Arc™ Graphics 2.2GHz
  • Intel® Graphics 1.9GHz
  • Intel® Graphics 1.95GHz
Expansion
WiFi, Bluetooth
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
I/O Interface
Audio
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
USB Port
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
LAN
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
Output
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
Power Jack
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
Extendable Slot
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
Environment
Operating Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
Mounting
Mounting
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
Country of Origin
Manufacturing Plant
  • China
  • China
  • China
  • Taiwan
  • Taiwan
  • Taiwan
