-25/96PSA-A60W12R1-320200701155212.jpg)

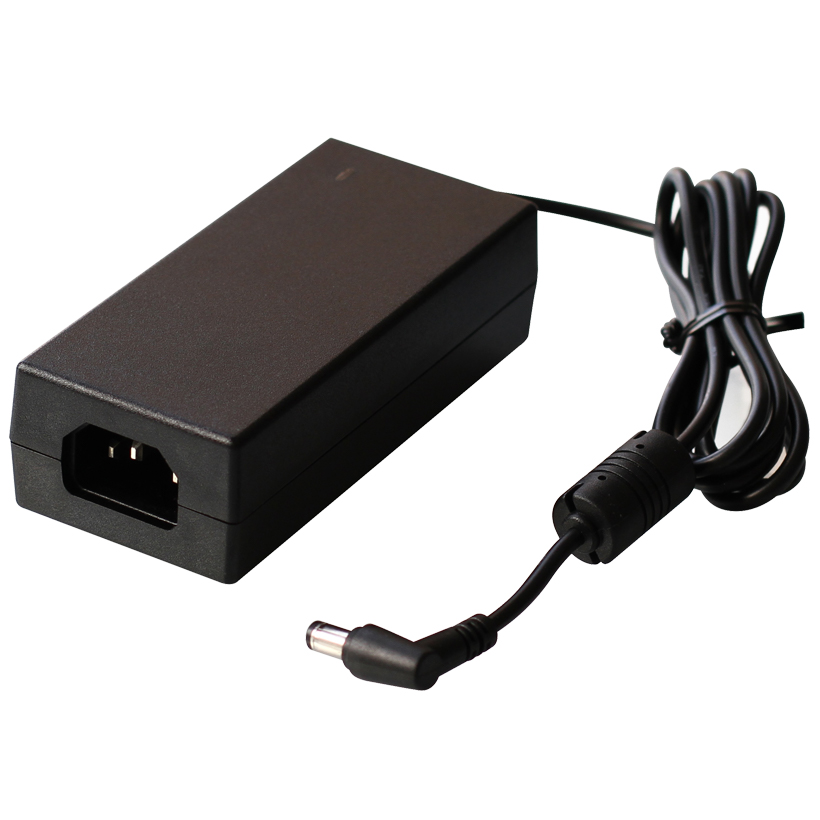

/96PSA-A60W12R1-320200701155217.jpg)
- Full range AC input 100-240V
- Meet Energy Star EPS 2.0 /ErP Lot 7
- No load Power Consumption ≦0.15W
- High Reliability
- Available for high altitude(5,000M) and DOE level VI
规格
- Part Number
- 相关讯息
-
96PSA-A60W12R1-3
- Form Factor
- Output Power
- Output Connector
- Input Power
- Input Current (maximum)
- Input Voltage
- Input Frequency
- Efficiency
- Socket Type
- Max Temperature
- Operating Temperature
- Storage Temperature
- Storage Humidity
- Output Rating
- MTBF (hours @ 25°C)
- Cable Length (mm)
- Dimensions (D x W x H)
- Safety
- DOE Level
- Manufacturer
- Adapter
- 60W
- DC PLUG 90º
- AC to DC
- 90V @1.7A
- 100 ~ 240V
- 47 ~ 63 Hz
- 84%
- C14
- 60°C @ 90%
- 0 ~ +40°C
- -20 ~ 85 °C
- 5 ~ 95% RH
- 12V @ 5A
- 100K
- 1200
- 120 x 52.5 x 32.5 mm
- CB / UL / FCC / CE / TUV / RCM / CCC / PSE / KC / PSB / BSMI / BIS / IRAM
- VI
- Delta
Power Supply
-
Form Factor
96PSA-A60W12R1-3 Adapter -
Output Power
96PSA-A60W12R1-3 60W -
Output Connector
96PSA-A60W12R1-3 DC PLUG 90º -
Input Power
96PSA-A60W12R1-3 AC to DC -
Input Current (maximum)
96PSA-A60W12R1-3 90V @1.7A -
Input Voltage
96PSA-A60W12R1-3 100 ~ 240V -
Input Frequency
96PSA-A60W12R1-3 47 ~ 63 Hz -
Efficiency
96PSA-A60W12R1-3 84% -
Socket Type
96PSA-A60W12R1-3 C14 -
Max Temperature
96PSA-A60W12R1-3 60°C @ 90% -
Operating Temperature
96PSA-A60W12R1-3 0 ~ +40°C -
Storage Temperature
96PSA-A60W12R1-3 -20 ~ 85 °C -
Storage Humidity
96PSA-A60W12R1-3 5 ~ 95% RH -
Output Rating
96PSA-A60W12R1-3 12V @ 5A -
MTBF (hours @ 25°C)
96PSA-A60W12R1-3 100K -
Cable Length (mm)
96PSA-A60W12R1-3 1200 -
Dimensions (D x W x H)
96PSA-A60W12R1-3 120 x 52.5 x 32.5 mm -
Safety
96PSA-A60W12R1-3 CB / UL / FCC / CE / TUV / RCM / CCC / PSE / KC / PSB / BSMI / BIS / IRAM -
DOE Level
96PSA-A60W12R1-3 VI -
Manufacturer
96PSA-A60W12R1-3 Delta
