临床显示器

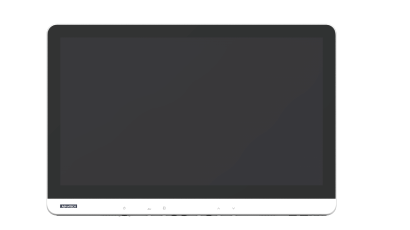

PAX-124 (F Model)

23.8吋医用显示屏

  • 23.8吋宽屏显示，全高清分辨率（1920x1080 ）
  • 无风扇设计，防护等级IP54，有利于卫生与感染控制
  • 十点触控电容屏
  • 符合医疗安规的 UL60601-1、IEC/EN 60601-1、IEC/EN 60601-1-2(EMC) 标准

认证：

技术资源链接：

产品型录 技术文件下载
  • 23.8吋医用显示屏

规格

LCD
Screen Size
  • 23.8"
  • 23.8"
  • 23.8"
Resolution
  • 1920 x 1080
  • 1920 x 1080
  • 1920 x 1080
Aspect Ratio
  • 16:9
  • 16:9
  • 16:9
Pixel Pitch
  • 0.270 x 0.270 mm
  • 0.270 x 0.270 mm
  • 0.270 x 0.270 mm
Viewing Angle
  • 178°/ 178°
  • 178°/ 178°
  • 178°/ 178°
Contrast Ratio (Typ.)
  • 3000:1
  • 3000:1
  • 3000:1
Native Luminance (Typ.)
  • 250 cd/m2
  • 250 cd/m2
  • 250 cd/m2
Color Depth
  • 8-bit 16.7M Colors
  • 8-bit 16.7M Colors
  • 8-bit 16.7M Colors
Display Mode
  • VA Mode, Normally Black
  • VA Mode, Normally Black
  • VA Mode, Normally Black
Response Time
  • 16ms (G to G) / 16ms (Tr + Tf)
  • 16ms (G to G) / 16ms (Tr + Tf)
  • 16ms (G to G) / 16ms (Tr + Tf)
Touchscreen
  • 10-point multi touch P-CAP
  • Clear Glass
  • 10-point multi touch P-CAP
Input
DP 1.2 Input DP Jack x 1
  • DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
  • DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
  • DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
HDMI 2.0 Input HDMI Jack x 1 (Type A)
  • Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
  • Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
  • Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
DVI Input DVI Jack x 1 (Type D)
  • Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
  • Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
  • Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
USB Up
  • USB-B Jack x 1
  • USB-B Jack x 1
  • USB-B Jack x 1
Audio Input
  • Audio Jack x 1
  • Audio Jack x 1
  • Audio Jack x 1
Output
HDMI 2.0 Output/HDMI Jack x 1 (Type A)
  • Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
  • Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
  • Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Audio
  • Audio Jack x 1
  • Audio Jack x 1
  • Audio Jack x 1
Environment
Temperature
  • Operational: 0~40° C / Storage: -20~60° C
  • Operational: 0~40° C / Storage: -20~60° C
  • Operational: 0~40° C / Storage: -20~60° C
Power
Rating
  • DC 12V, 5.42A max.
  • DC 12V, 5.42A max.
  • DC 12V, 5.42A max.
Consumption
  • 65 W max.
  • 65 W max.
  • 65 W max.
Enclosure Color
-
  • White
  • Blue
  • White
Physical Characteristics
IP Ratings
  • Front IP65 / System IP54
  • Front IP65 / System IP54
  • Front IP65 / System IP54
VESA Mount
  • 100 x 100; 75 x 75 mm
  • 100 x 100; 75 x 75 mm
  • 100 x 100; 75 x 75 mm
Dimensions (W x D x H)
  • 583 x 387 x 63 mm
  • 583 x 387 x 63 mm
  • 583 x 387 x 63 mm
Weight
  • 6.98 kg
  • 6.98 kg
  • 6.98 kg
Certifications
-
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
Warranty
-
  • 2 years
  • 3 years
  • 3 years

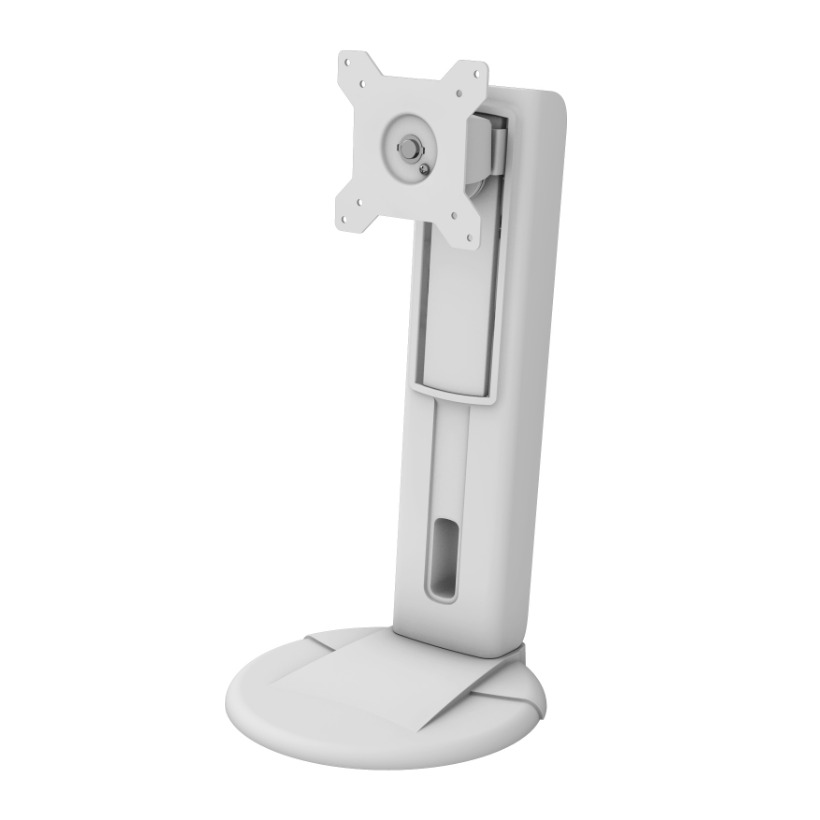

配件
