JAMMA (J-Series)

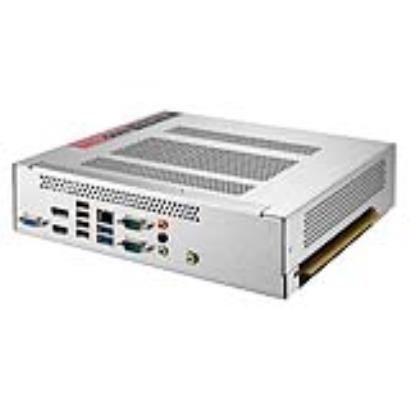

DPX-J100S1

AMD Ryzen™ Embedded V & R Series Gaming Platforms

  • High performance AMD Embedded V1000 & R1000 series APUs
  • Quad and dual core APUs up to 2.6 (3.5) GHz, 25W
  • Radeon™ VEGA GPU with up to 8 compute units
  • Up to three independent monitors supported
  • 72 + 20 pin JAMMA harness connector
  • Comprehensive gaming features
  • Full featured driver API for IO and security

技术资源链接：

产品型录 技术文件下载
  • AMD Ryzen™ Embedded V & R Series Gaming Platforms

规格

Processor
CPU
  • AMD Ryzen™ Embedded V1605B processor
  • AMD Ryzen™ Embedded R1606G processor
  • AMD Ryzen™ Embedded R1305G processor
Frequency
  • 2.0 GHz
  • 2.6 GHz
  • 1.5 GHz
Memory
Max. Capacity
  • 32GB (16GB per SODIMM)
  • 32GB (16GB per SODIMM)
  • 32GB (16GB per SODIMM)
Display
Output
  • 1 x HDMI , 1 x DP++ , 1 x VGA
  • 1 x HDMI , 1 x DP++ , 1 x VGA
  • 1 x HDMI , 1 x DP++ , 1 x VGA
Controller
  • AMD Integrated Radeon VEGA graphics engine
  • AMD Integrated Radeon VEGA graphics engine
  • AMD Integrated Radeon VEGA graphics engine
Ethernet
LAN
  • 1 x GbE
  • 1 x GbE
  • 1 x GbE
Audio
Interface
  • High Definition Audio (HD)
  • High Definition Audio (HD)
  • High Definition Audio (HD)
I/O
COM Port
  • 6 x RS232
  • 6 x RS232
  • 6 x RS232
USB
  • 6
  • 6
  • 6
Security
Intrusion inputs
  • 8
  • 8
  • 8
TPM
  • 2.0
  • 2.0
  • 2.0
