Analog I/O Modules

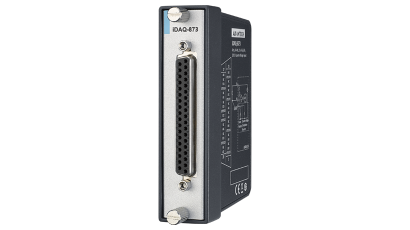

iDAQ-873

8通道, 24位分辨率，25.6kS/s，四分之一桥输入iDAQ模块

  • 高分辨率(24位)
  • 支持四分之一桥
  • 与其他iDAQ模块同步
  • 多种触发模式，灵活配置采集时间
  • 内置数字滤波器提高信噪比

认证：

技术资源链接：

产品型录 技术文件下载
  • 8通道, 24位分辨率，25.6kS/s，四分之一桥输入iDAQ模块

规格

Analog Input
Channels
  • 8
Resolution(Bits)
  • 24-bit
Sampling Rates(S/s)
  • 25.6 KS/s (per channel)
Input Range
  • ±1 V/V, ±500 mV/V, ±250 mV/V, ±125 mV/V, ±62.5 mV/V, ±31.25 mV/V, ±15.63 mV/V, ±7.81 mV/V
Environment
Operating Temperature
  • -40~70 °C (-40~158 °F)
Vibration Protection
  • 5 Grms, random
Shock Protection
  • 30 G, half sine

特点和优势

Modular High Speed DAQ Platform for Test & Measurement

Driven by the rise of edge computing, the industry is shifting toward modular DAQ systems for their flexibility, scalability, and edge-ready design—addressing key challenges such as long-range data transmission, complex multi-parameter component testing, and limited space within test setups.

Advantech’s iDAQ Series meets this demand with a rugged, modular platform that simplifies complex measurements through customizable I/O, seamless synchronization, and USB/Ethernet connectivity—delivering efficient, reliable mixed-signal acquisition in harsh environments.

Compact, Rugged & Flexible

Compact, Rugged & Flexible

Simplifies measurement setups with durable and flexible connectivity

Easy to Scale & Sync

Easy to Scale & Sync

Scalable I/O and synchronization support mixed signals and multi-sensor

Simplify DAQ Deployment

Simplify DAQ Deployment

Streamlined SDK empowering fast and flexible DAQ deployment


Feature Highlights

Hassle-free Expandability & Scalability

Plug-and-Play solution for  Versatile Measurement

  • Unified Modules: Various iDAQ modules integrated into a single virtual device with simplified control.
  • High Resolution: Up to 24-bit.
  • High Speed: Up to 1 MS/s per channel.
  • Sensor-Specific Modules: Designed for sound, vibration, strain, and load measurements.
One Platform for Versatile Measurement Scenarios

Easy Scalability and Expandability for Future Growth

  • Hot-Swappable I/O Modules: Flexibly insert into the chassis to quickly build custom systems.
  • Variety of Base Units: USB, Ethernet, and standalone options with multiple slot configurations for easy expansion.
  • Configuration Files: Simplify duplication of acquisition parameters.
  • Clock and Trigger Sync: Achieved through backplane.
Rugged Design for any Outdoor Environments

Rugged, Compact Design  for Harsh Environments

  • Compact Size: 100 mm (H) × 178 mm (W)；278 mm (W) with AMAX-5580 Edge Controller
  • Wide Temperature Range: -40 to 70°C (USB series: -20 to 60°C)
  • Aluminum Alloy Enclosure: Enhances noise shielding and EMI protection
  • DB15 Connector: Vibration-resistant; tested to 5 Grms random vibration and 30 G shock
Free and Easy-to-Use SDK

Free and Easy-to-Use SDK for All Tasks and Devices

  • Intuitive Setup: Easy device configuration with graphical interfaces and predefined profiles.
  • Language & Language Support: Compatible with C#, Python, .NET, C and LabVIEW..
  • Real-Time Tools: Utilities for fast data acquisition and analysis.
  • Device Flexibility: Works with a wide range of Advantech DAQ devices.

Key Industries & Applications

The iDAQ solution provides real-time data feedback for immediate adjustments—enhancing product quality, improving operational efficiency, and reducing costs across diverse sectors. It is widely adopted in semiconductor, EV automotive, electronic manufacturing, and renewable energy industries to ensure accurate measurement and reliable performance.

Semiconductor

Semiconductor

  • Wafer Testing Equipment
  • Early Earthquake Detection

EV Autopart

  • Component Testing Equipment
  • NVH Test & Analysis

Electronic Manufacturing

  • PHM for Manufacture Equipment
  • Production Traceability Application
Electric Power & Renewable Energy

Electric Power & Renewable Energy

  • Partial Discharge Monitoring
  • Vibration Monitoring for Wind Turbines
Get the Full iDAQ Guidebook

Get the Full iDAQ Guidebook

Discover when and why to choose modular DAQ systems over embedded cards—explore scalable deployment, versatile I/O, and simplified integration tools.

Download the guide to streamline your next test and measurement setup.
