导轨安装自动化控制器：UNO-1000 系列

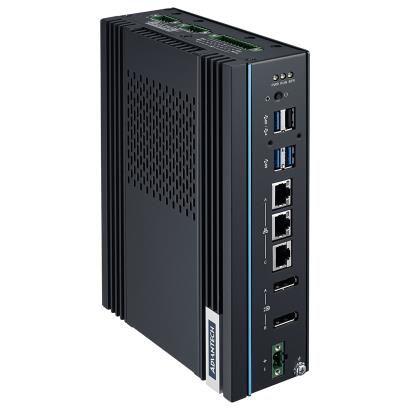

UNO-148 V2

搭载 Intel® 13th Core™ i CPU 的可扩展型边缘计算平台

  • Intel® 13th Core™ i 处理器，配备 8GB DDR5 内存
  • 8 x DI、8 x DO、4 x COM 端口隔离
  • 支持 2 x M.2 M key 2280 NVMe SSD 和 1 x M.2 B key 2242 存储
  • 支持 1 x M.2 E Key 2230 wi-fi 模块、 1 x miniPCIe，带 Nano SIM 卡插槽（适用于 LTE）
  • 双 2500BASE-T 以太网支持时间敏感网络 (TSN) 技术
  • 模块化设计，可选 iDoor 扩展

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 搭载 Intel® 13th Core™ i CPU 的可扩展型边缘计算平台

规格

Mechanical
Weight (Net)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
Enclosure
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
Mounting
  • DIN-rail
  • DIN-rail
  • DIN-rail
Hardware
Certification
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
Power Input
  • 10~36 VDC
  • 10~36 VDC
  • 10~36 VDC
OS Support
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Security
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
Graphics Engine
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® Iris® X
CPU
  • Intel® Core™ i3-1315UE 1.2GHz 6-Core
  • Intel® Core™ i5-1335UE 1.3GHz 10-Core
  • Intel® Core™ i7-1365UE 1.7GHz 10-Core
Memory
  • 1 x SO-DIMM with 8 GB DDR5 4800 MHz
  • 1 x SO-DIMM with 8 GB DDR5 4800 MHz
  • 1 x SO-DIMM with 8 GB DDR5 4800 MHz
Storage
  • 2 x NVME M.2 SSD (2280 M-key)
  • 2 x NVME M.2 SSD (2280 M-key)
  • 2 x NVME M.2 SSD (2280 M-key)
I/O Interface
Serial Ports
  • 4 x isolated RS-232/422/485
  • 4 x isolated RS-232/422/485
  • 4 x isolated RS-232/422/485
USB Ports
  • 3 x USB 3.2, 1 x USB 2.0
  • 3 x USB 3.2, 1 x USB 2.0
  • 3 x USB 3.2, 1 x USB 2.0
Power Connector
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
Displays
  • 2 x DP
  • 2 x DP
  • 2 x DP
Expansion
  • 1 x Full-size mPCIe Slot,
    1 x M.2 E key 2230,
    1 x Micro SIM Card Slot
  • 1 x Full-size mPCIe Slot,
    1 x M.2 E key 2230,
    1 x Micro SIM Card Slot
  • 1 x Full-size mPCIe Slot,
    1 x M.2 E key 2230,
    1 x Micro SIM Card Slot
LAN Ports
  • 1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps
Environment
Relative Humidity
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Ingress Protection
  • IP20
  • IP20
  • IP20
Shock Protection
  • 50 G, half sine
  • 50 G, half sine
  • 50 G, half sine
Vibration Protection
  • 2 Grms, random
  • 2 Grms, random
  • 2 Grms, random
Operating Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Local I/O
General Digital I/O
  • 8-ch DI, 8-ch DO
  • 8-ch DI, 8-ch DO
  • 8-ch DI, 8-ch DO

特点和优势

Unlock AI Power in Compact DIN-Rail IPC

Unlock AI Power in Compact DIN-Rail IPC

UNO-148 V2, a DIN-rail automation controller, is equipped with the latest 13th Gen Intel® Core™ processors and an innovative design that integrates with its second-stack extension kit to support embedded MXM GPUs based on NVIDIA Ada Lovelace and Ampere architecture, this product is set to revolutionize real-time control and automation applications across various AI-driven industries, unlocking edge AI capabilities.

Quick Overview

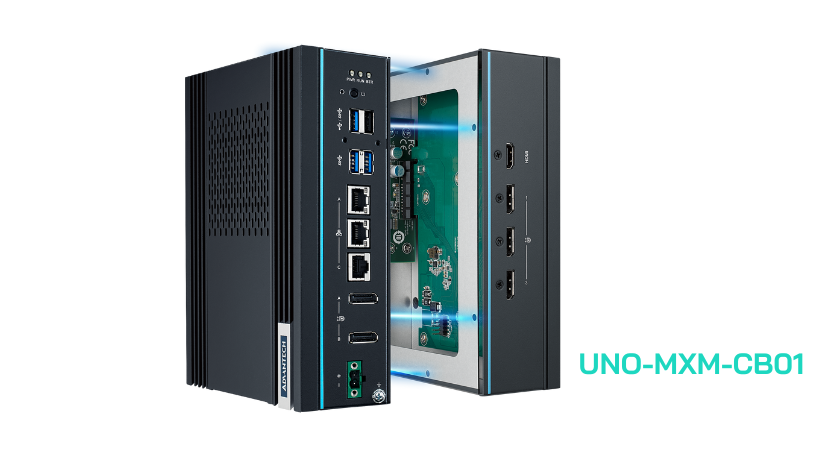

MXM GPU Carrier Stack

How to Unleash AI Potential with Expansion Kit

MXM GPU Carrier Stack

View Product Page

Looking for an AI-powered edge solution >


Looking for an AI-powered edge solution


View Video Now
