Server Boards

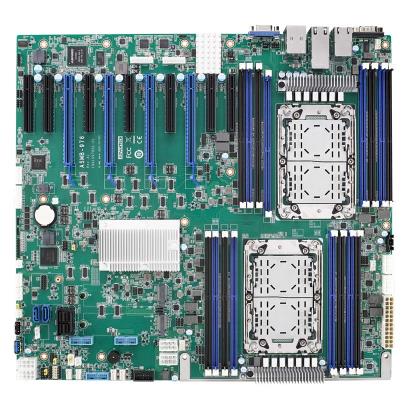

ASMB-976

LGA 4189 Intel®Xeon®可扩展专有服务器板，带16x DDR4、4 x PCIe x16、10 x SATA3、8 x USB 3.2（第1代）、双10GbE和IPMI

  • LGA4189专有服务器板，配备第三代Intel®Xeon®可扩展处理器
  • 高达2TB的DDR4 3200 MHz RDIMM支持Intel®Optane™持久内存
  • 4 x PCIe x16和7 x PCIe x8
  • Intel®X550双10GbE端口
  • 10个SATA3和2个M.2连接器（兼容SATA/PCIe）
  • 0~40°C（32~104°F）环境工作温度范围

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • LGA 4189 Intel®Xeon®可扩展专有服务器板，带16x DDR4、4 x PCIe x16、10 x SATA3、8 x USB 3.2（第1代）、双10GbE和IPMI

规格

Processor System
CPU
  • 3rd Gen Intel® Xeon Scalable processors
  • 3rd Gen Intel® Xeon Scalable processors
  • 3rd Gen Intel® Xeon Scalable processors
Socket Q'ty
  • 2 x LGA4189
  • 2 x LGA4189
  • 2 x LGA4189
TDP
  • Up to 270 W
  • Up to 270 W
  • Up to 205 W
Chipset
  • Intel® C621A
  • Intel® C621A
  • Intel® C621A
Memory
Type and Speed
  • DDR4 3200 MHz RDIMM
  • DDR4 3200 MHz RDIMM
  • DDR4 3200 MHz RDIMM
Channel
  • 16
  • 16
  • 16
Per Slot Max Capacity
  • 128 GB
  • 128 GB
  • 128 GB
System Max Capacity
  • 2 TB
  • 2 TB
  • 2 TB
Expansion
PCIe/PCI Module
  • 7 x PCIe 4.0 x8, 4 x PCIe 4.0 x16
  • 7 x PCIe 4.0 x8, 4 x PCIe 4.0 x16
  • 7 x PCIe 4.0 x8, 4 x PCIe 4.0 x16
Internal Storage
M.2
  • 1 (PCIe 4.0 x4, SATA) + 1 (PCIe 4.0 x4)
  • 1 (PCIe 4.0 x4, SATA) + 1 (PCIe 4.0 x4)
  • 1 (PCIe 4.0 x4, SATA) + 1 (PCIe 4.0 x4)
Front Panel & I/O
USB
  • 6 x USB 3.2 Gen1, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen1, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen1, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen1 Type-A
Rear I/O
Display
  • 1 x VGA port
  • 1 x VGA port
  • 1 x VGA port
USB
  • 2 x USB 3.2 Gen1
  • 2 x USB 3.2 Gen1
  • 2 x USB 3.2 Gen1
LAN
Controller
  • Intel® I210, Intel® X557
  • Intel® I210, Intel® X557
  • Intel® I210
1GbE
  • -
  • 2
  • 2
10GbE
  • 2
  • 2
  • 2
Security
TPM
  • TPM 2.0 optional module card
  • TPM 2.0 optional module card
  • TPM 2.0 optional module card
Storage
SATA Port
  • 8 x (via Mini-SAS HD SFF-8643), 1 x SATA3
  • 8 x (via Mini-SAS HD SFF-8643), 1 x SATA3
  • 8 x (via Mini-SAS HD SFF-8643), 1 x SATA3
Cooling
System Fan
  • 7 x system, 2 x CPU
  • 7 x system, 2 x CPU
  • 7 x system, 2 x CPU
System Management
Controller
  • Aspeed AST2500
  • Aspeed AST2500
  • Aspeed AST2510
IPMI
  • Advantech remote monitoring utility
  • Advantech remote monitoring utility
  • Advantech remote monitoring utility
Watchdog Timer
Output
  • System Reset
  • System Reset
  • System Reset
Environment
Operating-Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity
  • 10 ~ 95%
  • 10 ~ 95%
  • 10 ~ 95%
Non-Operating Humidity
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
Physical Characteristics
Form Factor
  • EATX
  • EATX
  • EATX
Dimensions (L x H)
  • 380 x 346 mm (15" x 13.6")
  • 380 x 346 mm (15" x 13.6")
  • 380 x 346 mm (15" x 13.6")
Certification
EMC
  • CE/FCC
  • CE/FCC
  • CE/FCC
