车载电脑

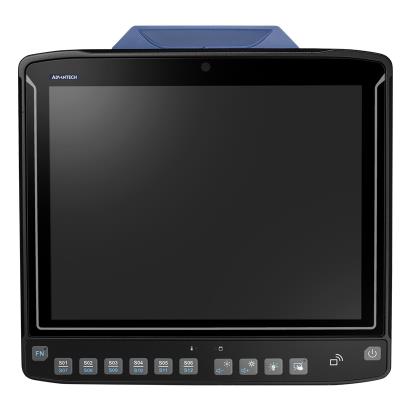

DLT-V73

10.4"/12.1" 强固型 X86 架构车载电脑

  • Intel® Core™ i5-1145GRE 四核 / Celeron® 6305E 双核处理器
  • 10.4"/12.1" 彩色 TFT XGA 显示器，带有 3/12 控制按钮
  • 支持Windows和Linux操作系统
  • 电阻式/ 电容式触摸屏与光学贴合技术
  • 全IP66级设计，IK08认证触摸屏，具有抗冲击和耐磨损性能
  • 冲击和振动抗性能达到5M3和MIL-STD-810F标准
  • 宽广的操作温度范围（-30 ~ 50 °C/-22 ~ 122 °F）以承受极端环境
  • 扩展I/O端口的附加模块
  • 支持 Wi-Fi 6、4G/LTE、GPS 和蓝牙 5.3

认证：

技术资源链接：

产品型录 技术文件下载
  • 10.4"/12.1" 强固型 X86 架构车载电脑

规格

System
CPU
  • Intel® Celeron® 6305E dual-core, 1.8 GHz
  • Intel® Celeron® 6305E dual-core, 1.8 GHz
  • Intel® Celeron® 6305E dual-core, 1.8 GHz
  • Intel® Celeron® 6305E dual-core, 1.8 GHz
  • Intel® Celeron® 6305E dual-core, 1.8 GHz
  • Intel® Celeron® 6305E dual-core, 1.8 GHz
RAM
  • 8 GB RAM LPDDR4X
  • 8 GB RAM LPDDR4X
  • 8 GB RAM LPDDR4X
  • 8 GB RAM LPDDR4X
  • 8 GB RAM LPDDR4X
  • 8 GB RAM LPDDR4X
Storage
  • 128 GB CFast
  • 128 GB CFast
  • 128 GB CFast
  • 128 GB CFast
  • 128 GB CFast
  • 128 GB CFast
TPM
  • TPM 2.0 (X86 only)
  • TPM 2.0 (X86 only)
  • TPM 2.0 (X86 only)
  • TPM 2.0 (X86 only)
  • TPM 2.0 (X86 only)
  • TPM 2.0 (X86 only)
Display
Type
  • 10.4" XGA color TFT
  • 12.1" XGA color TFT
  • 12.1" XGA color TFT
  • 10.4" XGA color TFT
  • 12.1" XGA color TFT
  • 12.1" XGA color TFT
Resolution
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
Brightness (cd/m2)
  • 500 cd/m²
  • 600 cd/m²
  • 600 cd/m²
  • 500 cd/m²
  • 600 cd/m²
  • 600 cd/m²
Touch Screen
Type
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
Front keys
Front keys
  • 12
  • 12
  • 3 front keys (1 x Power, 1 x brightness up, 1 x brightness down)
  • 12
  • 12
  • 3 front keys (1 x Power, 1 x brightness up, 1 x brightness down)
OS
Operating System
  • Windows 10 IoT Enterprise LTSC
  • Windows 10 IoT Enterprise LTSC
  • Windows 10 IoT Enterprise LTSC
  • Windows 10 IoT Enterprise LTSC
  • Windows 10 IoT Enterprise LTSC
  • Windows 10 IoT Enterprise LTSC
Communications
WLAN
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
WWAN, GPS
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
LAN
  • 1 x LAN (10/100/1000/2500 Mbit/s),
    1 x LAN (10/100/1000 Mbit/s)
  • 1 x LAN (10/100/1000/2500 Mbit/s),
    1 x LAN (10/100/1000 Mbit/s)
  • 1 x LAN (10/100/1000/2500 Mbit/s),
    1 x LAN (10/100/1000 Mbit/s)
  • 1 x LAN (10/100/1000/2500 Mbit/s),
    1 x LAN (10/100/1000 Mbit/s)
  • 1 x LAN (10/100/1000/2500 Mbit/s),
    1 x LAN (10/100/1000 Mbit/s)
  • 1 x LAN (10/100/1000/2500 Mbit/s),
    1 x LAN (10/100/1000 Mbit/s)
WPAN
  • Bluetooth 5.3
  • Bluetooth 5.3
  • Bluetooth 5.3
  • Bluetooth 5.3
  • Bluetooth 5.3
  • Bluetooth 5.3
NFC
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
Interface
Serial
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
USB
  • 2 x USB-A 3.2 Gen1,
    1 x USB-C 3.2 Gen2,
    1 x Service USB-C 3.2 Gen2
  • 2 x USB-A 3.2 Gen1,
    1 x USB-C 3.2 Gen2,
    1 x Service USB-C 3.2 Gen2
  • 2 x USB-A 3.2 Gen1,
    1 x USB-C 3.2 Gen2,
    1 x Service USB-C 3.2 Gen2
  • 2 x USB-A 3.2 Gen1,
    1 x USB-C 3.2 Gen2,
    1 x Service USB-C 3.2 Gen2
  • 2 x USB-A 3.2 Gen1,
    1 x USB-C 3.2 Gen2,
    1 x Service USB-C 3.2 Gen2
  • 2 x USB-A 3.2 Gen1,
    1 x USB-C 3.2 Gen2,
    1 x Service USB-C 3.2 Gen2
External Antenna
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
CAN
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
Environmental
IP Rating
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
Operating Temperature
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
Shock / Vibration
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
Touchscreen Durability
  • IK08
  • IK08
  • IK08
  • IK08
  • IK08
  • IK08
Power Supply
Input Voltage
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
Uninterruptible Power Supply (UPS)
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
