车载电脑

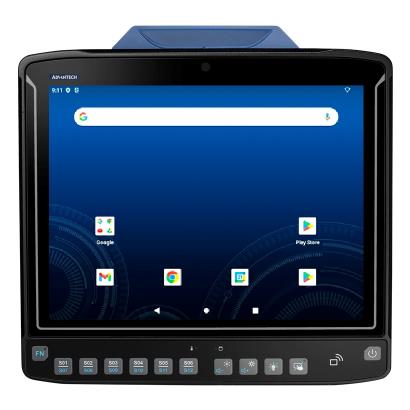

DLT-V73A

10.4"/12.1" 强固型ARM架构车载电脑

  • 支持Android 12，通过Google GMS & AER认证
  • 10.4"/12.1" 彩色 TFT XGA 显示器，带有 3/12 控制按钮
  • 高通® 骁龙™ 660 八核 2.2GHz CPU SC66
  • 电容式触摸屏与光学贴合技术
  • 全IP66级防水防尘设计，IK08认证触摸屏，具有抗冲击和耐磨损性能
  • 冲击和振动抗性能达到5M3和MIL-STD-810F标准
  • 支持 Wi-Fi 5、4G/LTE、GPS 和 蓝牙 5.0

认证：

技术资源链接：

产品型录 技术文件下载
  • 10.4"/12.1" 强固型ARM架构车载电脑

规格

OS
Operating System
  • Android12 with Google GMS & AER
  • Android12 with Google GMS & AER
  • Android12 with Google GMS & AER
  • Android12 with Google GMS & AER
  • Android12 with Google GMS & AER
  • Android12 with Google GMS & AER
System
CPU
  • Qualcomm® Snapdragon™ 660 octa-core 2.2GHz CPU SC66
  • Qualcomm® Snapdragon™ 660 octa-core 2.2GHz CPU SC66
  • Qualcomm® Snapdragon™ 660 octa-core 2.2GHz CPU SC66
  • Qualcomm® Snapdragon™ 660 octa-core 2.2GHz CPU SC66
  • Qualcomm® Snapdragon™ 660 octa-core 2.2GHz CPU SC66
  • Qualcomm® Snapdragon™ 660 octa-core 2.2GHz CPU SC66
RAM
  • 4 GB RAM LPDDR4X
  • 4 GB RAM LPDDR4X
  • 4 GB RAM LPDDR4X
  • 4 GB RAM LPDDR4X
  • 4 GB RAM LPDDR4X
  • 4 GB RAM LPDDR4X
Storage
  • 64 GB eMMC
  • 64 GB eMMC
  • 64 GB eMMC
  • 64 GB eMMC
  • 64 GB eMMC
  • 64 GB eMMC
Display
Type
  • 10.4" XGA color TFT
  • 12.1" XGA color TFT
  • 12.1" XGA color TFT
  • 12.1" XGA color TFT
  • 10.4" XGA color TFT
  • 12.1" XGA color TFT
Resolution
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
  • 1024 x 768
Brightness (cd/m2)
  • 500 cd/m²
  • 600 cd/m²
  • 600 cd/m²
  • 600 cd/m²
  • 500 cd/m²
  • 600 cd/m²
Communications
WLAN
  • IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
  • IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
  • IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
  • IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
  • IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
  • IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
WWAN, GPS
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
  • LTE, UMTS, HSPA+, GPS (Optional )
LAN
  • 2 x LAN (10/100/1000 Mbit/s)
  • 2 x LAN (10/100/1000 Mbit/s)
  • 2 x LAN (10/100/1000 Mbit/s)
  • 2 x LAN (10/100/1000 Mbit/s)
  • 2 x LAN (10/100/1000 Mbit/s)
  • 2 x LAN (10/100/1000 Mbit/s)
WPAN
  • Bluetooth 5.0
  • Bluetooth 5.0
  • Bluetooth 5.0
  • Bluetooth 5.0
  • Bluetooth 5.0
  • Bluetooth 5.0
NFC
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
  • NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
Touchscreen
PCT Projective capacitive touchscreen
  • DLT-V7310/10AP with 10" XGA display, 12 keys
  • DLT-V7312/12AP with 12" XGA display, 12 keys
  • DLT-V7312P+/12AP+ with 12" XGA display, 3 keys
  • DLT-V7312P+/12AP+ with 12" XGA display, 3 keys
  • DLT-V7310/10AP with 10" XGA display, 12 keys
  • DLT-V7312/12AP with 12" XGA display, 12 keys
Interface
Serial
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
  • 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
USB
  • 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, 1 x Service USB-C 3.2 Gen 1
  • 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, 1 x Service USB-C 3.2 Gen 1
  • 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, 1 x Service USB-C 3.2 Gen 1
  • 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, 1 x Service USB-C 3.2 Gen 1
  • 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, 1 x Service USB-C 3.2 Gen 1
  • 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, 1 x Service USB-C 3.2 Gen 1
External Antenna
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
  • 1 x RSMA for WLAN,
    1 x SMA for WWAN*,
    1 x SMA for GPS*
CAN
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
  • 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
Environmental
IP Rating
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
  • IP66 rating for the entire system
Operating Temperature
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
  • -30 ~ 50 °C (-22 ~ 122 °F)
Shock / Vibration
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
  • 5M3, MIL-STD 810F
Touchscreen Durability
  • IK08
  • IK08
  • IK08
  • IK08
  • IK08
  • IK08
Power Supply
Input Voltage
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
  • 12/24/48V certified vehicle power; Automatic power on/off via ignition
Uninterruptible Power Supply (UPS)
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
  • via battery pack (support up to 20 minutes)*
Update Support
Security update support
  • Android Security Updates support end date:March 2025
    Frequency of security updates: Every 90 Days
  • Android Security Updates support end date:March 2025
    Frequency of security updates: Every 90 Days
  • Android Security Updates support end date:March 2025
    Frequency of security updates: Every 90 Days
  • Android Security Updates support end date:March 2025
    Frequency of security updates: Every 90 Days
  • Android Security Updates support end date:March 2025
    Frequency of security updates: Every 90 Days
  • Android Security Updates support end date:March 2025
    Frequency of security updates: Every 90 Days
