Workstation Boards

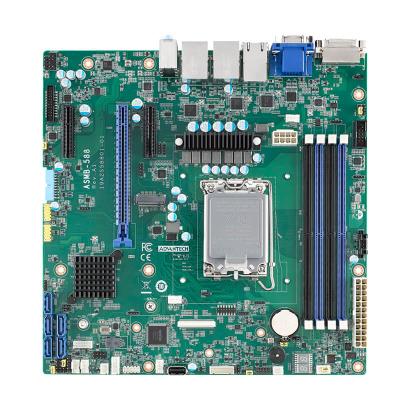

ASMB-588

LGA 1700 Intel® 12th Gen. Core™ MicroATX 服务器主板， 4 x DDR5, 3 x PCIe (1 x Gen 5, 2 x Gen 4), 6 x USB 3.2, 5 x SATA3, Quad/Dual LANs, and IPMI

  • LGA 1700 Intel® 12th Gen. Core™ i9/i7/i5/i3 processors with W680 chipset
  • DDR5 ECC/Non-ECC 4400/4000/3600 MHz UDIMM 高达 128 GB
  • 1个PCIe x16 (Gen 5) 和2个 PCIe x4 (Gen 4)
  • 支持三显 - DVI-D, VGA, 和HDMI 2.0
  • 5个 SATA 3 和6个 USB 3.2
  • 1个M.2 2280 (PCIe x4)
  • 机架式布局，优化气流设计
  • 宽温设计：0 ~ 60 °C (32 ~ 140 °F)

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • LGA 1700 Intel® 12th Gen. Core™ MicroATX 服务器主板， 4 x DDR5, 3 x PCIe (1 x Gen 5, 2 x Gen 4), 6 x USB 3.2, 5 x SATA3, Quad/Dual LANs, and IPMI

规格

Processor System
CPU
  • Intel® Core™ processors (14th/13th/12th)
  • Intel® Core™ processors (14th/13th/12th)
Socket Q'ty
  • 1 x LGA1700
  • 1 x LGA1700
TDP
  • Up to 125 W
  • Up to 125 W
Chipset
  • Intel® W680
  • Intel® W680
Memory
Type and Speed
  • DDR5 5600 MHz ECC/Non ECC
  • DDR5 5600 MHz ECC/Non ECC
Channel
  • 2
  • 2
Slots
  • 4 x 288-pin UDIMM
  • 4 x 288-pin UDIMM
Per Slot Max Capacity
  • 48 GB
  • 48 GB
System Max Capacity
  • 192 GB
  • 192 GB
Expansion
PCIe/PCI Module
  • 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
Internal Storage
M.2
  • 1 x NVMe 2280 (PCIe 4.0 x4)
  • 1 x NVMe 2280 (PCIe 4.0 x4)
Front Panel & I/O
USB
  • 2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 2.0 Type-A
  • 2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 2.0 Type-A
LAN
Controller
  • Intel® I210
  • Intel® I210, Intel® I219
1GbE
  • 2
  • 4
Rear I/O
Display
  • 1 x VGA port, 1 x DVI port, 1 x HDMI port
  • 1 x VGA port, 1 x DVI port, 1 x HDMI port
USB
  • 4 x USB 3.2 Gen1
  • 4 x USB 3.2 Gen1
Security
TPM
  • TPM 2.0 optional module card
  • TPM 2.0 optional module card
Storage
SATA Port
  • 5
  • 5
Cooling
System Fan
  • 4 x system, 1 x CPU
  • 4 x system, 1 x CPU
System Management
IPMI
  • IPMI2.0 compliant Advantech iManager
  • IPMI2.0 compliant Advantech iManager
Watchdog Timer
Output
  • System Reset
  • System Reset
Environment
Operating Temperature
  • 0 ~ 60 °C (32 ~ 140 °F)
  • 0 ~ 60 °C (32 ~ 140 °F)
Non-Operating Temperature
  • -40 ~ 85 °C (-40 ~ 185 °F)
  • -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
  • 10 ~ 95%
  • 10 ~ 95%
Non-Operating Humidity
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
Physical Characteristics
Form Factor
  • MicroATX
  • MicroATX
Dimensions (L x H)
  • 244 x 244 mm (9.6" x 9.6")
  • 244 x 244 mm (9.6" x 9.6")
Certification
EMC
  • CE/FCC
  • CE/FCC
