iBMC 边缘管理解决方案

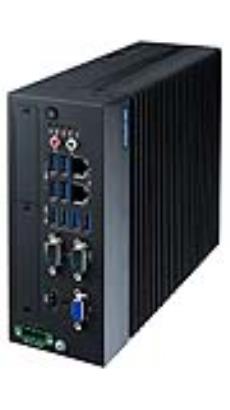

MIC-770 V3

英特尔 12/13/14代 Core™ i CPU/Core 处理器(第二代）Bartlett Lake-S 接口(LGA 1700)紧凑型无风扇系统

  • 英特尔12/13/14代 Core™ i CPU插槽类型/英特尔Core第二代 (LGA1700) 英特尔R680E/ H610E 芯片组；
  • 支持宽温运行 (-20 ~ 60 °C); VGA和HDMI输出；
  • 2 x GigaLAN, 2 x USB 3.2 (Gen2) 和 6 x USB 3.2 (Gen1); 2 x RS-232/422/485 和 4 x RS232 串口 (可选)
  • 1 x 2.5" HDD/SSD, 1 x mSATA, 和 1 x NVMe M.2; 9 ~ 36 VDC 输入电压
  • IP40 防水防尘等级，满足恶劣环境下的使用
  • 支持FlexIO和iDoor技术，灵活配置附加HDMI, DP, DVI, COM port, DIO, 远程 IO
  • 支持研华i-Modules;支持研华 SUSIAPI和嵌入式软件APIs
  • 支持英特尔 vPro™/AMT和 TPM 技术
  • 支持研华 iBMC 1.2 DeviceOn 远程带外电源管理解决方案

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 英特尔 12/13/14代 Core™ i CPU/Core 处理器(第二代）Bartlett Lake-S 接口(LGA 1700)紧凑型无风扇系统

规格

Processor System
CPU
  • Intel® Core™ processors (14th/13th/12th Gen)
  • Intel® Core™ processors (14th/13th/12th Gen)
  • Intel® Core™ processors (14th/13th/12th Gen)
  • Intel® Core™ processors (14th/13th/12th Gen)
  • Intel® Core™ processors (14th/13th/12th Gen)
Socket Q'ty
  • 1 x LGA1700
  • 1 x LGA1700
  • 1 x LGA1700
  • 1 x LGA1700
  • 1 x LGA1700
TDP
  • Up to 65 W
  • Up to 65 W
  • Up to 65 W
  • Up to 65 W
  • Up to 65 W
Core Number
  • Up to 24
  • Up to 24
  • Up to 24
  • Up to 24
  • Up to 24
L3 Cache
  • Up to 30 MB
  • Up to 30 MB
  • Up to 30 MB
  • Up to 30 MB
  • Up to 30 MB
Chipset
  • Intel® R680E
  • Intel® H610E
  • Intel® R680E
  • Intel® H610E
  • Intel® R680E
BIOS
  • AMI 256 / 128 Mbit SPI Flash
  • AMI 256 / 128 Mbit SPI Flash
  • AMI 256 / 128 Mbit SPI Flash
  • AMI 256 / 128 Mbit SPI Flash
  • AMI 256 / 128 Mbit SPI Flash
Memory
Type and Speed
  • Dual-channel DDR5 4800 MHz
  • Dual-channel DDR5 4800 MHz
  • Dual-channel DDR5 4800 MHz
  • Dual-channel DDR5 4800 MHz
  • Dual-channel DDR5 4800 MHz
System Max Capacity
  • 128 GB
  • 128 GB
  • 128 GB
  • 128 GB
  • 128 GB
Per Slot Max Capacity
  • 64 GB
  • 64 GB
  • 64 GB
  • 64 GB
  • 64 GB
Slots
  • 2 x 262-pin DDR5 SO-DIMM
  • 2 x 262-pin DDR5 SO-DIMM
  • 2 x 262-pin DDR5 SO-DIMM
  • 2 x 262-pin DDR5 SO-DIMM
  • 2 x 262-pin DDR5 SO-DIMM
Graphics
Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
Storage
HDD
  • 1 x 2.5" internal HDD/SSD bay
  • 1 x 2.5" internal HDD/SSD bay
  • 1 x 2.5" internal HDD/SSD bay
  • 1 x 2.5" internal HDD/SSD bay
  • 1 x 2.5" internal HDD/SSD bay
M.2
  • 1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key
  • -
  • 1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key
  • -
  • 1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key
mSATA
  • 1
  • 1
  • 1
  • 1
  • 1
RAID
  • 0/1/5/10
  • -
  • 0/1/5/10
  • -
  • 0/1/5/10
Expansion
PCIe/PCI Module
  • Supported via i-Module
  • Supported via i-Module
  • Supported via i-Module
  • Supported via i-Module
  • Supported via i-Module
Mini PCIe/mSATA
  • 2
  • 1
  • 2
  • 1
  • 2
LAN
Connector
  • 2 x RJ45
  • 2 x RJ45
  • 2 x RJ45
  • 2 x RJ45
  • 2 x RJ45
Speed
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
Controller
  • LAN1: Intel® I219-LM, LAN2: Intel® I210-IT
  • LAN1: Intel® I219-V, LAN2: Intel® I210-IT
  • LAN1: Intel® I219-LM, LAN2: Intel® I210-IT
  • LAN1: Intel® I219-V, LAN2: Intel® I210-IT
  • LAN1: Intel® I219-LM, LAN2: Intel® I210-IT
Front Panel & I/O
Display
  • 1 x VGA, 1 x HDMI
  • 1 x VGA, 1 x HDMI
  • 1 x VGA, 1 x HDMI
  • 1 x VGA, 1 x HDMI
  • 1 x VGA, 1 x HDMI
LAN
  • 2
  • 2
  • 2
  • 2
  • 2
USB
  • 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)
  • 4 x USB 3.2 (Gen1), 4 x USB 2.0
  • 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)
  • 4 x USB 3.2 (Gen1), 4 x USB 2.0
  • 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)
COM
  • 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
  • 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
  • 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
  • 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
  • 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
Audio
  • 2 (1 x Line-out, 1 x Mic-in)
  • 2 (1 x Line-out, 1 x Mic-in)
  • 2 (1 x Line-out, 1 x Mic-in)
  • 2 (1 x Line-out, 1 x Mic-in)
  • 2 (1 x Line-out, 1 x Mic-in)
WatchDog Timer
Output
  • System Reset
  • System Reset
  • System Reset
  • System Reset
  • System Reset
Interval
  • Programmable 1 ~ 255 sec/min
  • Programmable 1 ~ 255 sec/min
  • Programmable 1 ~ 255 sec/min
  • Programmable 1 ~ 255 sec/min
  • Programmable 1 ~ 255 sec/min
Power Supplies
Type
  • ATX, AT
  • ATX, AT
  • ATX, AT
  • ATX, AT
  • ATX, AT
Input Voltage
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
Environment
Operating Temperature
  • -20~50 °C with 0.7 m/s air flow
  • -20~50 °C with 0.7 m/s air flow
  • -20~35 °C without air flow
  • -20~35 °C without air flow
  • -20~50 °C with 0.7 m/s air flow
Non-Operational Temperature
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
Operating Shock
  • With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
  • With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
  • With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
  • With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
  • With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
Operating Humidity
  • 95% @ 40 °C (Non-condensing)
  • 95% @ 40 °C (Non-condensing)
  • 95% @ 40 °C (Non-condensing)
  • 95% @ 40 °C (Non-condensing)
  • 95% @ 40 °C (Non-condensing)
Physical Characteristics
Dimension (W x H x D)
  • 77 x 192 x 230 mm
  • 77 x 192 x 230 mm
  • 107.3 x 192 x 230 mm
  • 107.3 x 192 x 230 mm
  • 77 x 192 x 230 mm
Weight (Net)
  • 2.8 kg (6.17 lb)
  • 2.8 kg (6.17 lb)
  • 4.65 kg (10.25 lb)
  • 4.65 kg (10.25 lb)
  • 2.8 kg (6.17 lb)
Mounting
  • Desktop, Wall mount
  • Desktop, Wall mount
  • Desktop, Wall mount
  • Desktop, Wall mount
  • Desktop, Wall mount
Certification
EMC, Safety
  • CE/FCC Class A, CCC, BSMI, UL/CB
  • CE/FCC Class A, CCC, BSMI, UL/CB
  • CE/FCC Class A, CCC, BSMI, UL/CB
  • CE/FCC Class A, CCC, BSMI, UL/CB
  • CE/FCC Class A, CCC, BSMI, UL/CB
