基于RISC架构的站立式工业通讯网关(ECU-1000系列)

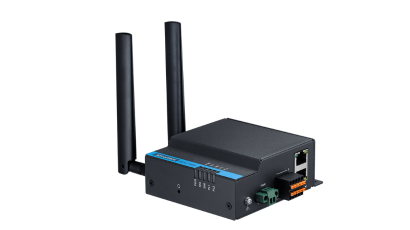

ECU-1052

Industrial Cellular Gateway for Secure IoT Connectivity

  • LTE Cat.4 with 3G/2G fallback and dual SIM for redundancy
  • Dual Gigabit Ethernet (10/100/1000 Mbps)
  • Preloaded EdgeLink IoT software for data acquisition & cloud connectivity
  • EdgeHub cloud service integration for enabling remote operation and maintenance
  • Wide operating temperature range
  • Wall-mount design, optional DIN-rail kits

技术资源链接：

产品型录 技术文件下载
  • Industrial Cellular Gateway for Secure IoT Connectivity

规格

General
Humidity (Storage)
  • 5~95% RH (non-condensing)
Hardware
LAN
  • 2 x 10/100/1000 Mbps
I/O
  • 1 x RS-232, 1 x RS-485
OS Support
  • Linux
CPU
  • Qualcomm® ARM® Cortex™ A7 MDM9X07
Certification
  • SRRC
LED Indicators
  • PWR, SIG, SIM, 2 x Programmable LED
I/O Interface
Serial Ports
  • 1 x RS-232, 1 x RS-485
Environment
Ingress Protection
  • IP30
Operating Temperature
  • -40~75 °C (-40~167 °F)
Storage Temperature
  • -40~85 °C (-40~185 °F)
Mechanical
Mounting
  • Wall, DIN-rail
Enclosure
  • SECC
Weight (Net)
  • 0.33 kg
Dimension (W x H x D)
  • 94 x 39 x 90 mm
Expansion Function
SIM card slot
  • Micro SIM
Antenna
  • 2 x SMA Female
Ethernet
No. of Ports
  • 2
Speed
  • 10/100/1,000 Mbps
Power Supply
Input Voltage
  • 9~48 VDC
Digital Input and Digital Output
No. of Channels
  • 1-ch DI and 1-ch DO
Wireless Communication
Standard (Technology)
  • LTE
