边缘智能网关——快速联网 轻松运维

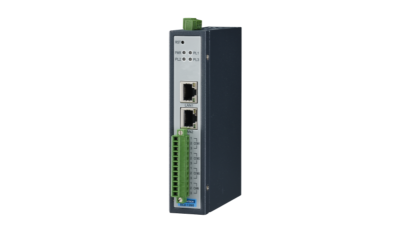

ECU-1260

Cortex-A35 工业通讯网关

  • Cortex-A35 四核处理器,1GHz CPU支持
  • Web 服务远程在线监控
  • 支持SD卡 & 在线固件更新支持
  • Modbus,IEC-60870-101/104 协议支持
  • SD 卡数据存储
  • 工作温度:-40~70°C

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • Cortex-A35 工业通讯网关

规格

Environment
Operating Temperature
  • -40~70 °C (-40~158 °F)
Relative Humidity
  • 5~95% RH (non-condensing)
Storage Temperature
  • -40~85 °C (-40~185 °F)
Vibration Protection
  • 1 Grms, random
Expansion Function
Interface
  • 1 x Full-size mini PCIe
SIM card slot
  • Nano SIM card
General
Grounding Protection
  • Chassis grounding
Programming Language
  • Linux C
Protocol
  • OPC-UA Client & Server, DNP3.0 Client & Server,
    IEC-60870-5-104 Master & Slave, IEC-60870-5-101
    Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
    Server
Humidity (Storage)
  • 5~95% RH (non-condensing)
Hardware
Certification
  • CE, FCC
CPU
  • ARM® RK3358 QuadA35+G31 64bit 1GHz
Expansion
  • 1 x Full-size mPCIe
LED Indicators
  • Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
Memory
  • 1 x DDR3L with 2GB
OS Support
  • Linux 4.9
Power Input
  • 10~30 VDC
Storage
  • 16 GB eMMC
Watchdog Timer
  • Programmable
I/O
  • 1 x CAN Bus
Hardware Security
  • Optional
Power Consumption
  • 2.5 W @ 24 VDC
I/O Interface
Expansion
  • 1 x Full-size mPCIe Slot
LAN Ports
  • 2 x 10/100 Mbps
Power Connector
  • 1 x 3-Pin Terminal Block
Serial Ports
  • 3 x RS-232/485
Mechanical
Dimension (W x H x D)
  • 140 x 30 x 96.5 mm
Enclosure
  • SECC
Form Factor
  • Passive Cooling and Front Accessible
Mounting
  • Wall, DIN-rail
Power Requirements
Input Voltage
  • 10~30 VDC
Serial Communication
Baud Rate (bps)
  • 50 bps~115.2 kbps
Data Signals
  • RS-232: TxD, RxD, GND
    RS-485: Data+, Data-
Wireless Communication
Standard (Technology)
  • WIFI, LTE
Power Supply
Input Voltage
  • 12~30 VDC
