IDS-3300系列 IP65工业显示器

IDS-3319

19英寸，1280 x 1024，VGA/DVI/HDMI接口，前置IP65显示器

  • 前面板IP65防水防尘
  • LED背光，19英寸SXGA LCD面板
  • -20〜+60℃宽范围工作温度
  • 5线电阻、投射电容触摸屏或强化防污保护玻璃解决方案
  • 带有HDMI、VGA和DVI的多个信号接口
  • 标准集成框架
  • 后部安装和VESA安装的通用安装方法
  • 防反射处理（可选）
  • 1200 cd/㎡的超高亮度解决方案，用于室外应用（可选）

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 19英寸，1280 x 1024，VGA/DVI/HDMI接口，前置IP65显示器

规格

LCD Display
Size
  • 19"
  • 19"
  • 19"
Resolution
  • 1280 x 1024
  • 1280 x 1024
  • 1280 x 1024
Viewing Angle (H/V°)
  • 170/160
  • 170/160
  • 170/160
Brightness
  • 350nits
  • 350nits
  • 350nits
Contrast Ratio
  • 1000 : 1
  • 1000 : 1
  • 1000 : 1
Colors
  • 16.7 M
  • 16.7 M
  • 16.7 M
Response Time (ms)
  • 7
  • 7
  • 7
Backlight Life (hrs)
  • 70000
  • 70000
  • 70000
Touch Screen
  • N/A
  • Projected Capacitive
  • 5-Wire Resistive
Signal Interface
  • VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
  • VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
  • VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
Touchscreen
Surface Hardness
  • -
  • -
Durability
  • -
  • -
Transparency
  • -
  • -
Environment
Operational Temperature
  • -20 ~ 60° C
  • -20 ~ 60° C
  • -20 ~ 60° C
Storage Temperature
  • -30 ~ 70° C
  • -30 ~ 70° C
  • -30 ~ 70° C
Humidity
  • 10 ~ 90% @ 40° C, non-condensing
  • 10 ~ 90% @ 40° C, non-condensing
  • 10 ~ 90% @ 40° C, non-condensing

特点和优势

Your Reliable Industrial Display Solution Provider

Advantech, a global leader in industrial solutions with over 15 years of expertise, specializes in reliable, high-quality edge industrial displays. Our offerings include rugged display solutions, immersive curved touch displays, and outdoor display kits, all designed to withstand harsh environments. With extensive in-house design and manufacturing capabilities, we provide highly customizable embedded solutions that cater to diverse customer needs. Our commitment to innovation ensures that our display systems not only enhance the user experience but also integrate seamlessly into various industrial applications, driving efficiency and productivity across multiple sectors.

Embedded Industrial Display Systems Industrial Display Solutions

Technology Highlights

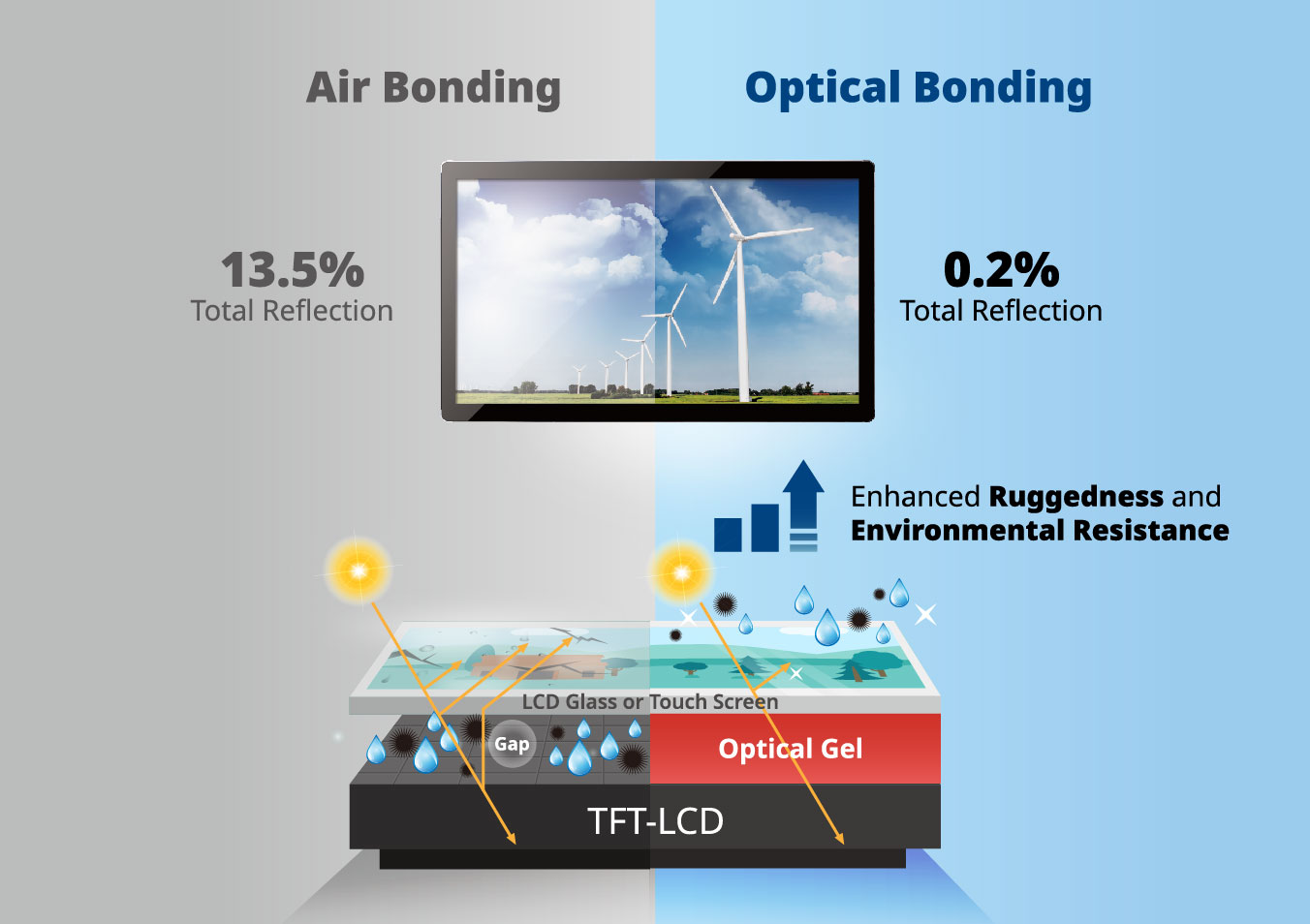

Optical Bonding

Optical Bonding

  • Laminates LCD panels using optical glue without creating air gaps
  • Reduces external light reflection and glare by increasing backlight transmittance
  • Enhances visibility by 400% while delivering superior image quality
  • Sunlight readable, anti-moisture, anti-dust, and vandalism-resistant

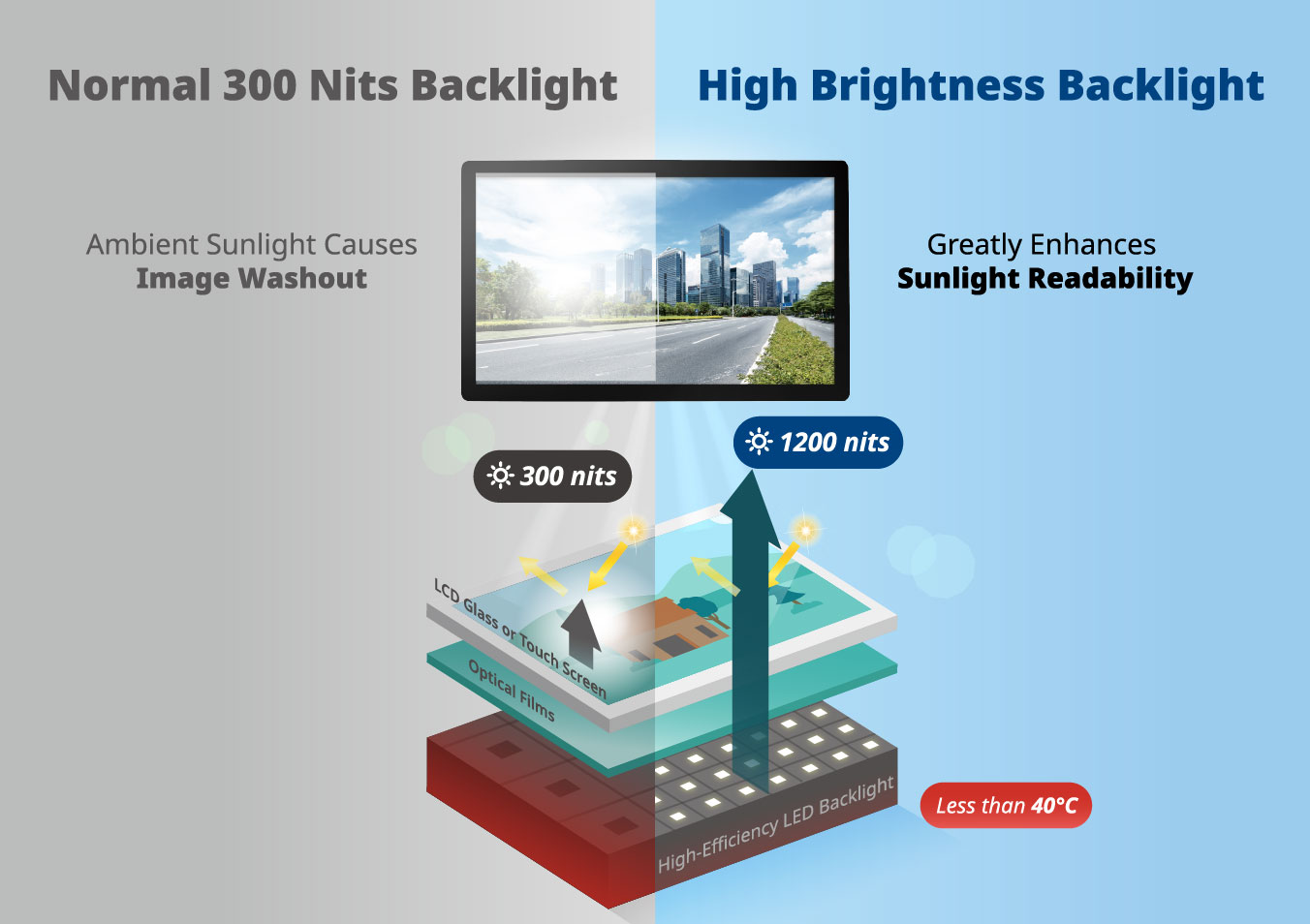

Ultra High Brightness

Ultra High Brightness

  • In-house backlight module enhancement
  • Thermally optimized circuit design for low power consumption
  • Improved color saturation (NTSC) and uniformity
  • Auto-dimming function with light sensor to reduce backlighting in darker areas
  • Optional low dimming solution supporting brightness from 2 nits

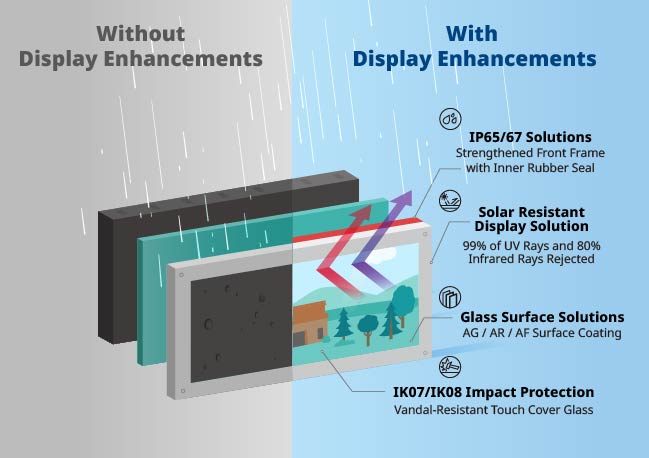

Display Panel Processing

Advanced Display Enhancements

  • IP65/67-rated waterproof and dustproof solution
  • High brightness enhancement with UV-resistant and anti-reflective design
  • Supports vandal-resistant touch cover glass with customized strength
  • Anti-Glare (AG), Anti-Reflective (AR), and Anti-Fingerprint (AF) surface coatings

In-house Manufacturing Capabilities

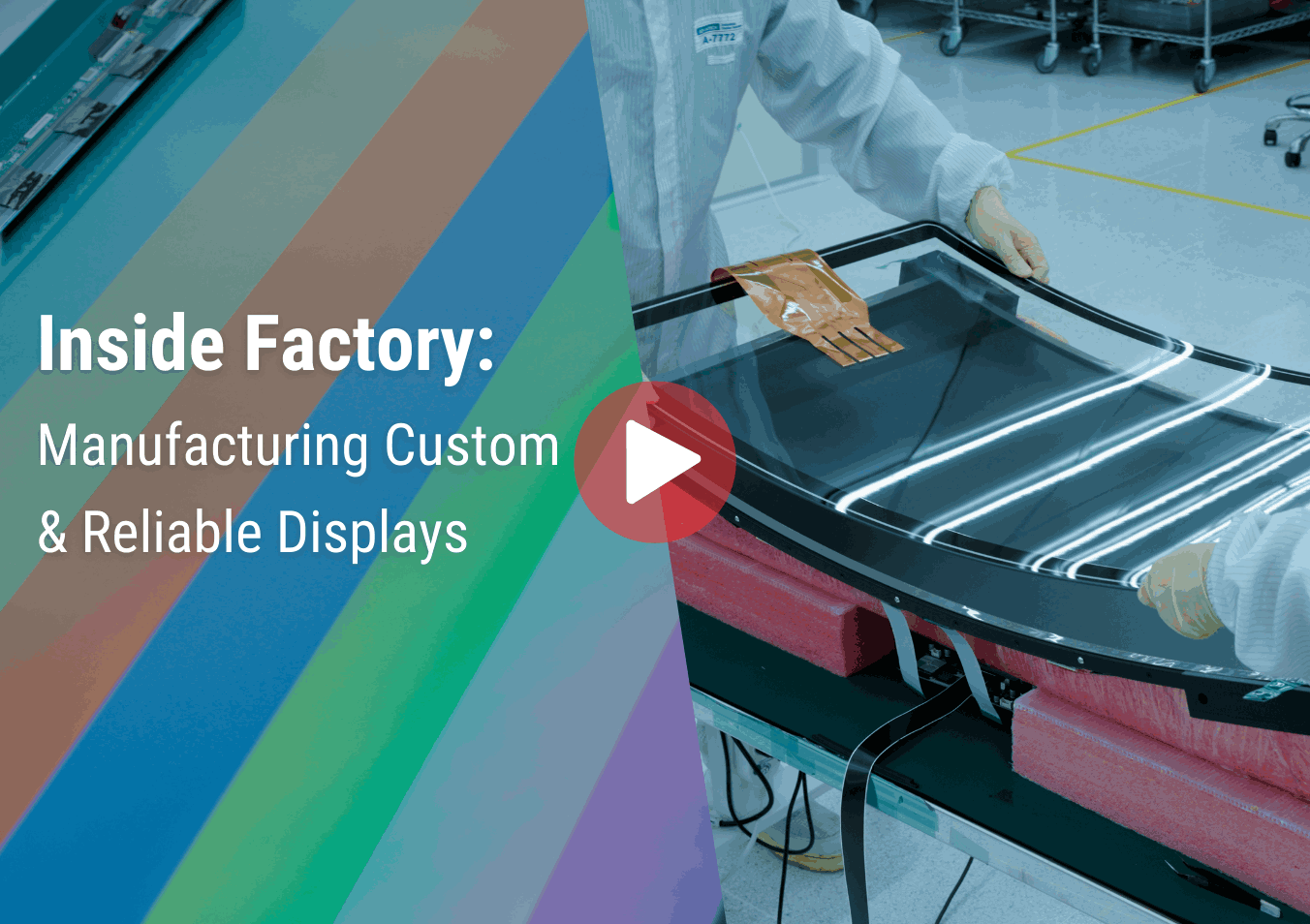

Step Inside Advantech's Factory

Step Inside Advantech's Factory

Manufacturing custom, rugged and reliable industrial display systems

Watch Now

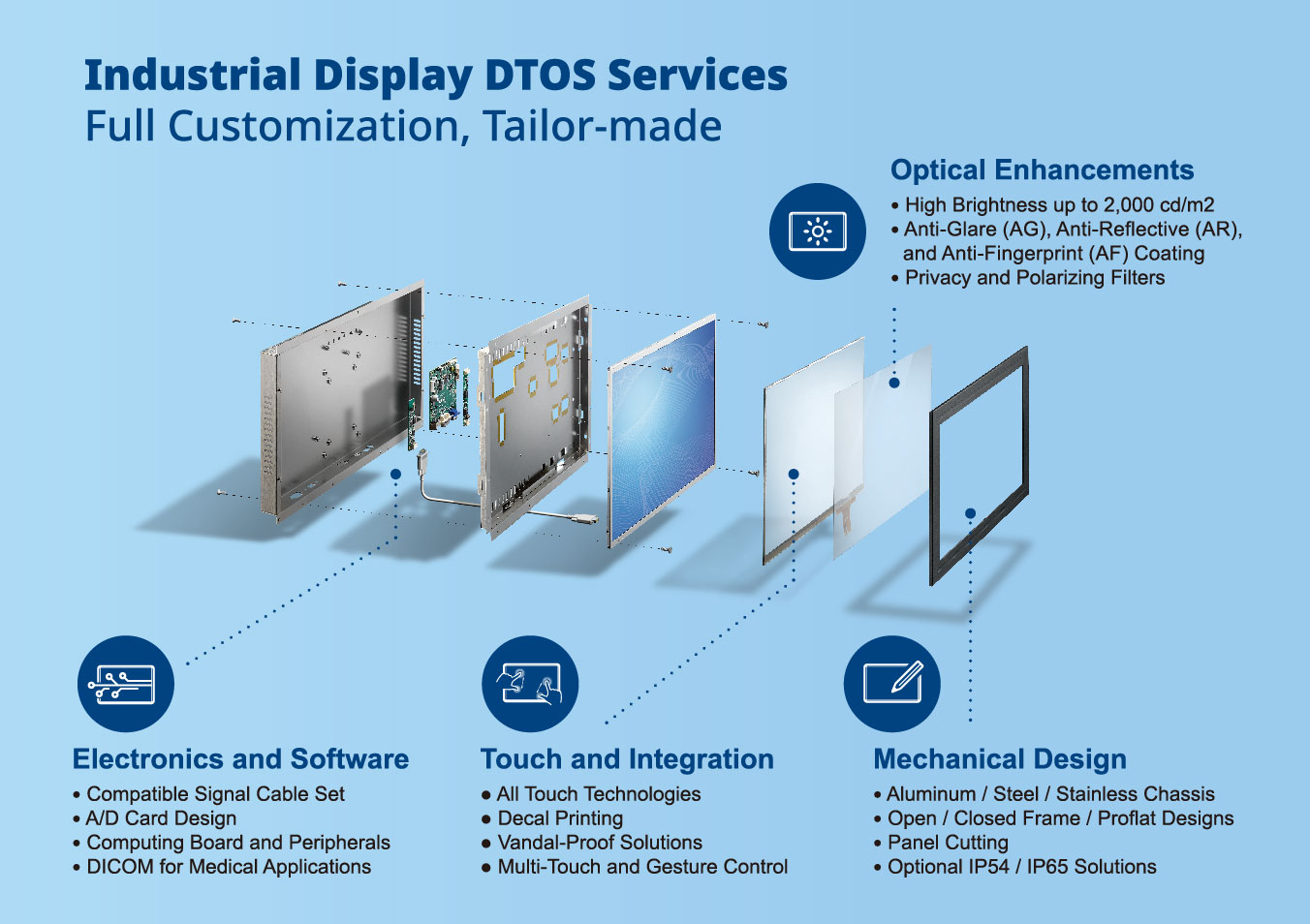

Industrial Display DTOS Services
