边缘 AI 服务器

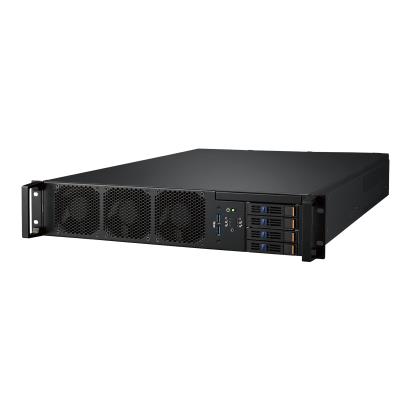

HPC-6240+ASMB-622V3

2U 20" 短深度边缘服务器 单路 Intel® 第4代Xeon® Scalable 处理器, 支持8个扩展槽

  • 单路Intel® 第4代Xeon® scalable处理器
  • DDR5 4400/4000MHz RDIMM高达 4TB, 支持Intel optane 持久存储器
  • 4个PCIe x16 支持 FH/10.5"L卡
  • 4个PCIe x8 Gen 5插槽
  • 4个2.5" 热插拔SASII**/SATAIII 驱动盘位 (2个 NVMe 选项)
  • 2个板载M.2 2280/22110 (兼容SATA/PCIe)
  • 4 x GbE, 2 x USB3.2, 1 x Serial Port, 1 x VGA, 1 x IPMI
  • 1200W 1+0白金非冗余电源

认证：

技术资源链接：

产品型录 技术文件下载
  • 2U 20" 短深度边缘服务器 单路 Intel® 第4代Xeon® Scalable 处理器, 支持8个扩展槽

规格

Processor System
CPU
  • 3rd Gen Intel® Xeon Scalable processors
TDP
  • Up to 165 W
Chipset
  • Intel® C621A
Memory
Type and Speed
  • DDR4 3200 MHz RDIMM
Per Slot Max Capacity
  • 128 GB
System Max Capacity
  • 2 TB
Expansion
PCIe/PCI Module
  • 4 x PCIe 5.0 x8, 2 x PCIe 5.0 x16 (or 4 x PCIe 5.0 x8)
  • 4 x FHHL PCIe x8, 4 x FH/10.5"L PCIe x16
  • 4 x FHHL PCIe x8, 4 x FH/10.5"L PCIe x16
Front Storage
2.5" HDD/SSD
  • -
  • 4 x Hot-swappable
  • 4 x Hot-swappable
Slim ODD
  • -
  • 1
  • 1
Internal Storage
M.2
  • 1 (PCIe 3.0 x4, SATA)
Front Panel & I/O
USB
  • 2 x USB 3.2 Gen1
  • 2 x USB 3.2 Gen1
  • 2 x USB 3.2 Gen1
LED & Switch
  • -
  • Power Status, LAN1-LAN4 Status, System information LED
  • Power Status, LAN1-LAN4 Status, System information LED
Rear I/O
Display
  • 1 x VGA port
USB
  • 2 x USB 3.2 Gen1
LAN
Controller
  • Intel® I350
Power Supplies
Type
  • -
  • 1+1 Redundant PSU
  • Single PSU
Input Voltage
  • -
  • AC 100-240V
  • AC 100-240V
Watts
  • -
  • 1200 W
  • 1200 W
Efficiency Rating
  • -
  • 80+
  • 80+
Security
TPM
  • TPM 2.0 optional module card
Storage
SATA Port
  • 1 x SlimSAS
Cooling
System Fan
  • 3 (80x38 high speed fan), 1( 60x38 high speed fan)
  • 3 (80x38 high speed fan), 1( 60x38 high speed fan)
  • 3 (80x38 high speed fan), 1( 60x38 high speed fan)
System Management
Controller
  • Aspeed AST2500
IPMI
  • Advantech remote monitoring utility
Environment
Operating Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
Non-Operating Temperature
  • -40 ~ 70 °C (-40 ~ 156 °F)
  • -40 ~ 70 °C (-40 ~ 156 °F)
  • -40 ~ 70 °C (-40 ~ 156 °F)
Operating Humidity
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
Operating Vibration
  • -
  • 0.3 Grms
  • 0.3 Grms
Non-Operating Vibration
  • -
  • 2 Grms
  • 2 Grms
Operating Shock
  • -
  • 10 G
  • 10 G
Physical Characteristics
Form Factor
  • Proprietary
Dimensions (W x H x D)
  • -
  • 438 mm x 88 mm x 523 mm(17.24" x 3.46" x 20.6")
  • 438 mm x 88 mm x 523 mm(17.24" x 3.46" x 20.6")
Weight
  • -
  • 8.5 kg
  • 8.5 kg
Certification
EMC
  • CE/FCC
  • CE/FCC
  • CE/FCC
