AFE-新能源光储充解决方案

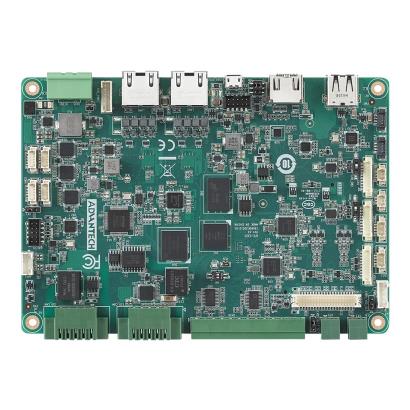

AFE-E420

NXP i.MX93 4" 嵌入式单板电脑

  • NXP i.MX93 带单核/双核 Arm Cortex-A55
  • 板载LPDDR4x-3733高达2GB，eMMC
  • 双独立显示：LVDS + HDMI
  • 双GbE，3 USB，6 COM，4 CANBus，2 PLC，RTD 6-CH
  • 扩展：M.2 E-Key, M.2 B-Key
  • 支持 Yocto BSP

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • NXP i.MX93 4" 嵌入式单板电脑

规格

Processor
CPU
  • NXP i.MX 93 Cortex-A55 Dual-core
Frequency
  • 1.7 GHz
Core Number
  • 2
Memory
Technology
  • LPDDR4X 3733MT/s
Max. Capacity
  • up to 2 GB
Channel/ Socket
  • Single Channel / Memory down
ECC Support
  • Yes(by processor)
Display
LCD (TTL/LVDS/eDP)
  • LVDS 18/24-bit
Ethernet
Controller
  • GbE x2
Rear I/O
Ethernet
  • 2
HDMI
  • 1 (support by request)
USB 2.0
  • 1
Internal I/O
USB
  • 2 x USB 2.0
GPIO
  • 16-bit GPIO
Expansion
M.2 E-Key
  • 1 x E-Key 2230
SD Socket
  • 1 SD card slot
Power
Power Supply Voltage
  • 12~24Vdc
Connector
  • 2-pin terminal block
Power Management
  • AT, ATX
Environment
Storage Temperature
  • - 40 ~ 85° C (-40 ~185° F)
Humidity
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Vibration Resistance
  • 3.5 Grms
Certification
EMC
  • CE, FCC Class B
Mechanical
Dimensions
  • 115 x 165 mm (4.5" x 6.5")
Weight
  • 145g
