NVIDIA Jetson 解决方案

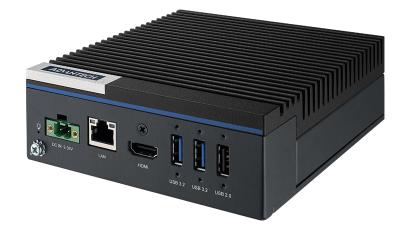

MIC-711-OX

基于 NVIDIA Jetson Orin NX 平台AI推理系统

  • 无风扇紧凑型设计
  • NVIDIA® Jetson Orin™ NX，最高算力100 TOPS
  • 支持 1 x GbE, 2 x USB3.2 Gen1 (5Gbit/s)
  • 支持 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
  • 支持 Allxon 24/7 远程管理，OTA 部署

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 基于 NVIDIA Jetson Orin NX 平台AI推理系统

规格

Processor System
CPU
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
    8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
    8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
    8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
    8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
GPU
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory
  • 16GB: 16GB LPDDR5
    8GB: 8GB LPDDR5
  • 16GB: 16GB LPDDR5
    8GB: 8GB LPDDR5
  • 16GB: 16GB LPDDR5
    8GB: 8GB LPDDR5
  • 16GB: 16GB LPDDR5
    8GB: 8GB LPDDR5
I/O
Ethernet
  • 1 x 10/100/1000 Mbps
  • 1 x 10/100/1000 Mbps
  • 1 x 10/100/1000 Mbps
  • 1 x 10/100/1000 Mbps
Display
  • HDMI (Max. resolution 3840x2160 @ 60Hz)
  • HDMI (Max. resolution 3840x2160 @ 60Hz)
  • HDMI (Max. resolution 3840x2160 @ 60Hz)
  • HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
  • External: 2 x USB 3.2 Gen 2, 1 x USB 2.0
    Internal: 1 x USB 2.0 (by pin header)
  • External: 2 x USB 3.2 Gen 2, 1 x USB 2.0
    Internal: 1 x USB 2.0 (by pin header)
  • External: 2 x USB 3.2 Gen 2, 1 x USB 2.0
    Internal: 1 x USB 2.0 (by pin header)
  • External: 2 x USB 3.2 Gen 2, 1 x USB 2.0
    Internal: 1 x USB 2.0 (by pin header)
OTG USB
  • 1 x Micro USB
  • 1 x Micro USB
  • 1 x Micro USB
  • 1 x Micro USB
Expansion
Mini PCIe
  • 1 x mPCIe (Signal: PCIe + USB 2.0)
  • 1 x mPCIe (Signal: PCIe + USB 2.0)
  • 1 x mPCIe (Signal: PCIe + USB 2.0)
  • 1 x mPCIe (Signal: PCIe + USB 2.0)
M.2
  • 1 x M.2 3052 (B-Key, Signal: USB)
  • 1 x M.2 3052 (B-Key, Signal: USB)
  • 1 x M.2 3052 (B-Key, Signal: USB)
  • 1 x M.2 3052 (B-Key, Signal: USB)
SIM
  • 2 x Nano SIM slots
  • 2 x Nano SIM slots
  • 2 x Nano SIM slots
  • 2 x Nano SIM slots
Storage
M.2
  • 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
  • 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
  • 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
  • 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card
  • 1 x Micro SD
  • 1 x Micro SD
  • 1 x Micro SD
  • 1 x Micro SD
Power
Mode
  • Terminal block, 2-pin, AT
  • Terminal block, 2-pin, AT
  • Terminal block, 2-pin, AT
  • Terminal block, 2-pin, AT
Input
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
Environment
Operating Temperature
  • -10 ~ 60 °C with 0.7 m/s air flow
  • -10 ~ 60 °C with 0.7 m/s air flow
  • -10 ~ 60 °C with 0.7 m/s air flow
  • -10 ~ 60 °C with 0.7 m/s air flow
Operating Humidity
  • 95% @ 40 °C (non-condensing)
  • 95% @ 40 °C (non-condensing)
  • 95% @ 40 °C (non-condensing)
  • 95% @ 40 °C (non-condensing)
Vibration
  • 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
  • 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
  • 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
  • 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
  • 10G / 11ms
  • 10G / 11ms
  • 10G / 11ms
  • 10G / 11ms
Mechanical
Dimension (W x H x D)
  • 130 x 130 x 46 mm (5.1" x 5.1" x 1.8")
  • 130 x 130 x 46 mm (5.1" x 5.1" x 1.8")
  • 130 x 130 x 46 mm (5.1" x 5.1" x 1.8")
  • 130 x 130 x 46 mm (5.1" x 5.1" x 1.8")
Weight
  • 1.2 kg (2.65 lb)
  • 1.2 kg (2.65 lb)
  • 1.2 kg (2.65 lb)
  • 1.2 kg (2.65 lb)
Installation
  • Desktop / Wall mount
  • Desktop / Wall mount
  • Desktop / Wall mount
  • Desktop / Wall mount
BSP
Jetpack
  • Above 5.1 (Above Linux Ubuntu 20.04)
  • Above 5.1 (Above Linux Ubuntu 20.04)
  • Above 5.1 (Above Linux Ubuntu 20.04)
  • Above 5.1 (Above Linux Ubuntu 20.04)
Certification
EMC, Safety
  • CB/UL/CE/FCC/BSMI/CCC (No RED certification)
  • CB/UL/CE/FCC/BSMI/CCC (No RED certification)
  • CB/UL/CE/FCC/BSMI/CCC (No RED certification)
  • CB/UL/CE/FCC/BSMI/CCC (No RED certification)
