工业物联网边缘网关

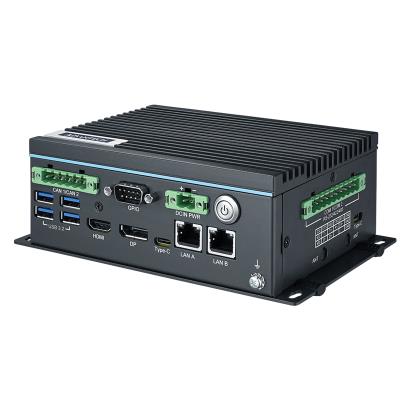

UNO-238 V2

模组化边缘计算平台，搭载第十二代Intel® Core™ i CPU

  • 搭载第12代Intel®Core™i处理器
  • 双通道DDR5-4800高达64GB
  • M.2 E-Key、B-Key、M-Key（支持NVMe）扩展用于存储/无线
  • 配备CANBus，实现可靠通信
  • 直流输入接线端子，接线灵活
  • 支持ThinManager解决方案
  • 支持软件API、WISE DeviceOn、WISE Edge365

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 模组化边缘计算平台，搭载第十二代Intel® Core™ i CPU

规格

Environment
Ingress Protection
  • IP20
  • IP20
  • IP20
Operating Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Relative Humidity
  • 5~95% RH (non-condensing)
  • 5~95% RH (non-condensing)
  • 5~95% RH (non-condensing)
Shock Protection
  • 50 G, half sine
  • 50 G, half sine
  • 50 G, half sine
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Vibration Protection
  • 2 Grms, random
  • 2 Grms, random
  • 2 Grms, random
Hardware
Certification
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
CPU
  • Intel® Core™ i3-1215UE 1.2GHz Alder Lake 6-Core
  • Intel® Core™ i5-1245UE 1.5GHz Alder Lake 10-Core
  • Intel® Core™ i7-1265UE 1.7GHz Alder Lake 10-Core
Graphics Engine
  • Intel® Iris Xe® Graphics
  • Intel® Iris Xe® Graphics
  • Intel® Iris Xe® Graphics
Hardware Security
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
Memory
  • 2 x SO-DIMM Slot with DDR5 4800MHz
  • 2 x SO-DIMM Slot with DDR5 4800MHz
  • 2 x SO-DIMM Slot with DDR5 4800MHz
OS Support
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
  • 12~24 VDC
  • 12~24 VDC
  • 12~24 VDC
Storage
  • 1 x SATA M.2 SSD slot (2280 M-Key)
  • 1 x SATA M.2 SSD slot (2280 M-Key)
  • 1 x SATA M.2 SSD slot (2280 M-Key)
LED Indicators
  • PWR
  • PWR
  • PWR
Watchdog Timer
  • 1~255 s
  • 1~255 s
  • 1~255 s
I/O
  • 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO
  • 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO
  • 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO
I/O Interface
Displays
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
Expansion
  • 1 x M.2 B key, 1 x M.2 E key
  • 1 x M.2 B key, 1 x M.2 E key
  • 1 x M.2 B key, 1 x M.2 E key
LAN Ports
  • 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps
  • 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps
  • 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps
Power Connector
  • 1 x 10-Pin Terminal Block
  • 1 x 10-Pin Terminal Block
  • 1 x 10-Pin Terminal Block
Serial Ports
  • 2 x RS 232/422/485
  • 2 x RS 232/422/485
  • 2 x RS 232/422/485
Mechanical
Dimension (W x H x D)
  • 150 x 107 x 60 mm
  • 150 x 107 x 60 mm
  • 150 x 107 x 60 mm
Enclosure
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
Weight (Net)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
Mounting
  • Stand, Din-rail
  • Stand, Din-rail
  • Stand, Din-rail
