工业物联网边缘网关

UNO-238

搭载Intel® Core™ i CPU 的紧凑型物联网边缘计算平台

  • 第八代英特尔® 酷睿™ i 处理器
  • 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)
  • 紧凑、无风扇设计

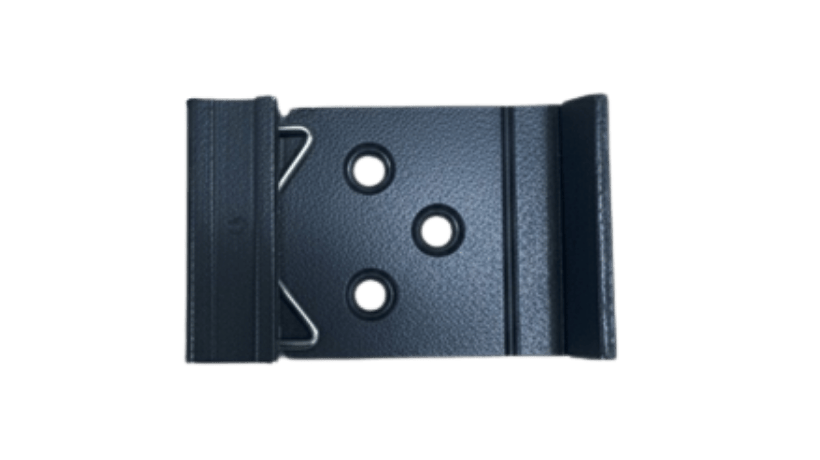

  • 用于支架安装的橡胶塞和用于 DIN 导轨安装的可选套件
  • 螺纹直流插孔可提供可靠的电源
  • 优化的机械设计，方便更换RAM

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 搭载Intel® Core™ i CPU 的紧凑型物联网边缘计算平台

规格

Environment
Ingress Protection
  • IP20
  • IP20
  • IP20
Operating Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Relative Humidity
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
Shock Protection
  • 50 G, half sine
  • 50 G, half sine
  • 50 G, half sine
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Vibration Protection
  • 3 Grms, random
  • 3 Grms, random
  • 3 Grms, random
Hardware
Certification
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
CPU
  • 8th Gen. Intel® Core™ i7-8665UE 1.70GHz Quad-Core
  • 8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core
  • 8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core
Graphics Engine
  • Intel® UHD Graphic 620
  • Intel® UHD Graphic 620
  • Intel® UHD Graphic 620
Hardware Security
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
Memory
  • 2 x DDR4 SO-DIMM Slot
  • 1 x DDR4 SO-DIMM Slot
  • 1 x DDR4 SO-DIMM Slot
OS Support
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
  • 12 VDC
  • 12 VDC
  • 12 VDC
Storage
  • 32 G eMMC
  • 32 G eMMC
  • 32 G eMMC
LED Indicators
  • PWR
  • PWR
  • PWR
Watchdog Timer
  • 1~255 s
  • 1~255 s
  • 1~255 s
I/O Interface
Audio
  • Line-Out
  • Line-Out
  • Line-Out
Displays
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
  • 1 x HDMI, 1 x DP
Expansion
  • 1 x M.2 B key, 1 x M.2 E key
  • 1 x M.2 B key, 1 x M.2 E key
  • 1 x M.2 B key, 1 x M.2 E key
LAN Ports
  • 2 x 10/100/1000 Mbps
  • 2 x 10/100/1000 Mbps
  • 2 x 10/100/1000 Mbps
Power Connector
  • 1 x DC Jack
  • 1 x DC Jack
  • 1 x DC Jack
Serial Ports
  • 2 x RS-232/422/485
  • 2 x RS-232/422/485
  • 2 x RS-232/422/485
USB Ports
  • 4 x USB 3.2
  • 4 x USB 3.2
  • 4 x USB 3.2
Mechanical
Dimension (W x H x D)
  • 150 x 107 x 60 mm
  • 150 x 107 x 60 mm
  • 150 x 107 x 60 mm
Enclosure
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
Weight (Net)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
Mounting
  • Stand, Din-rail
  • Stand, Din-rail
  • Stand, Din-rail
