丰富I/O ARK-2000系列

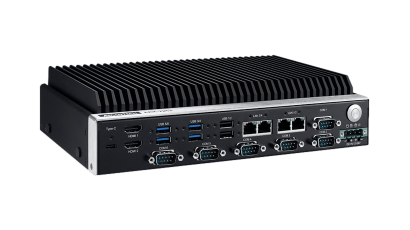

ARK-2252

搭载 Intel Core Ultra 第三代处理器嵌入式无风扇工控机

  • IntelCoreUltra 第三代处理器
  • DDR5-6400/7200 CSODIMM 内存，最高支持 128GB
  • M.2 E Key、B Key 及 M Key，用于存储和无线模块安装
  • 最高 4×Intel GbE、6×串口、8-bit DIO、2×CANBus
  • 板载 TPM，用于系统安全
  • 独立三显，含 2×4K HDMI、1×4K Type-C
  • 4×USB 3.2 和 2×USB 2.0
  • 12V~24V 宽压电源输入
  • 支持研华 iDoor、PoE 模块、Edge AI SDK、WEDA

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 搭载 Intel Core Ultra 第三代处理器嵌入式无风扇工控机

规格

Processor
CPU
  • Intel® Core™ Ultra 7 - 358H (12Xe)
  • Intel® Core™ Ultra 5 - 325 (4Xe)
  • Intel® Core™ Ultra 7 - 358H (12Xe)
  • Intel® Core™ Ultra 5 - 325 (4Xe)
Frequency
  • 1.9GHz up to 4.8GHz
  • 2.1GHz up to 4.5GHz
  • 1.9GHz up to 4.8GHz
  • 2.1GHz up to 4.5GHz
Core Number
  • 16
  • 8
  • 16
  • 8
BIOS
  • AMI 512 Mbit SPI
  • AMI 512 Mbit SPI
  • AMI 512 Mbit SPI
  • AMI 512 Mbit SPI
AI Performance Reference
  • Up to 180 TOPS
  • Up to 95 TOPS
  • Up to 180 TOPS
  • Up to 95 TOPS
Memory
Technology
  • DDR5 6400/7200 MT/s CSODIMM
  • DDR5 6400 MT/s CSODIMM
  • DDR5 6400/7200 MT/s CSODIMM
  • DDR5 6400 MT/s CSODIMM
Max. Capacity
  • up to 128GB
  • up to 128GB
  • up to 128GB
  • up to 128GB
Socket
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
ECC Support
  • No
  • No
  • No
  • No
Graphics
Controller
  • Intel® Xe 3 LPG up to 192EU (12Xe)
  • Intel® Xe 3 LPG (4Xe)
  • Intel® Xe 3 LPG up to 192EU (12Xe)
  • Intel® Xe 3 LPG (4Xe)
HDMI
  • 2 x HDMI 2.1 TMDS: 3840x2160@ 60Hz
  • 2 x HDMI 2.1 TMDS: 3840x2160@ 60Hz
  • 2 x HDMI 2.1 TMDS: 3840x2160@ 60Hz
  • 2 x HDMI 2.1 TMDS: 3840x2160@ 60Hz
Triple Display
  • 2 x HDMI + 1 x Type C DP
  • 2 x HDMI + 1 x Type C DP
  • 2 x HDMI + 1 x Type C DP
  • 2 x HDMI + 1 x Type C DP
USB Type C
  • DP Alt mode (Up to 3840x2160@ 60Hz)
  • DP Alt mode (Up to 3840x2160@ 60Hz)
  • DP Alt mode (Up to 3840x2160@ 60Hz)
  • DP Alt mode (Up to 3840x2160@ 60Hz)
Ethernet
LAN1
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
LAN2
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN
LAN3
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
LAN4
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
  • 10/100/1000/2500 Mbps Intel i226V GbE, support Wake On LAN, support PoE module
Audio
Main System
  • 1 x Mic-in or Line-out, by Realtek ALC888S, modified by OS
  • 1 x Mic-in or Line-out, by Realtek ALC888S, modified by OS
  • 1 x Mic-in or Line-out, by Realtek ALC888S, modified by OS
  • 1 x Mic-in or Line-out, by Realtek ALC888S, modified by OS
I/O Interface
Serial Port
  • 2 x RS232/422/485 + 4 x RS232/485
  • 2 x RS232/422/485 + 4 x RS232/485
  • 2 x RS232/422/485 + 4 x RS232/485
  • 2 x RS232/422/485 + 4 x RS232/485
USB Interface
  • 4 x USB3.2 Gen2 + 2 x USB2.0 + 1 x internal USB 2.0 Type A for security dongle (cannot co-exist w/ iDoor or PoE)
  • 4 x USB3.2 Gen2 + 2 x USB2.0 + 1 x internal USB 2.0 Type A for security dongle (cannot co-exist w/ iDoor or PoE)
  • 4 x USB3.2 Gen2 + 2 x USB2.0 + 1 x internal USB 2.0 Type A for security dongle (cannot co-exist w/ iDoor or PoE)
  • 4 x USB3.2 Gen2 + 2 x USB2.0 + 1 x internal USB 2.0 Type A for security dongle (cannot co-exist w/ iDoor or PoE)
USB Type C
  • 1x 20Gbps, DP ALT mode, 15W
  • 1x 20Gbps, DP ALT mode, 15W
  • 1x 20Gbps, DP ALT mode, 15W
  • 1x 20Gbps, DP ALT mode, 15W
GPIO
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
CAN
  • 2 x CANBus 2.0
  • 2 x CANBus 2.0
  • 2 x CANBus 2.0
  • 2 x CANBus 2.0
Expansion
iDoor Module
  • Yes
  • Yes
  • Yes
  • Yes
M.2
  • 1 x Key-B 3042/ 3052 (PCIe Gen4 x2, USB3.2) w/ 1 x with nano SIM holder + 1 x Key-E 2230 (PCIe Gen4 x1, USB2.0) + 1 x Key-M 2280 (PCIe Gen5 x4)
  • 1 x Key-B 3042/ 3052 (PCIe Gen4 x2, USB3.2) w/ 1 x with nano SIM holder + 1 x Key-E 2230 (PCIe Gen4 x1, USB2.0) + 1 x Key-M 2280 (PCIe Gen5 x4)
  • 1 x Key-B 3042/ 3052 (PCIe Gen4 x2, USB3.2) w/ 1 x with nano SIM holder + 1 x Key-E 2230 (PCIe Gen4 x1, USB2.0) + 1 x Key-M 2280 (PCIe Gen5 x4)
  • 1 x Key-B 3042/ 3052 (PCIe Gen4 x2, USB3.2) w/ 1 x with nano SIM holder + 1 x Key-E 2230 (PCIe Gen4 x1, USB2.0) + 1 x Key-M 2280 (PCIe Gen5 x4)
Software Support
Microsoft Windows
  • Windows Win11 LTSC
  • Windows Win11 LTSC
  • Windows Win11 LTSC
  • Windows Win11 LTSC
Linux
  • Ubuntu 26.04
  • Ubuntu 26.04
  • Ubuntu 26.04
  • Ubuntu 26.04
Storage
NVMe
  • 1 x PCIex 4 with M.2 2280 M Key
  • 1 x PCIex 4 with M.2 2280 M Key
  • 1 x PCIex 4 with M.2 2280 M Key
  • 1 x PCIex 4 with M.2 2280 M Key
Others
TPM
  • TPM 2.0 built in
  • TPM 2.0 built in
  • TPM 2.0 built in
  • TPM 2.0 built in
Watchdog timer
  • 255 levels timer interval, setup by software
  • 255 levels timer interval, setup by software
  • 255 levels timer interval, setup by software
  • 255 levels timer interval, setup by software
Power
Power Type
  • AT / ATX
  • AT / ATX
  • AT / ATX
  • AT / ATX
Input Voltage
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 12 ~ 24 VDC
Consumption
  • Typical: 16.8W, Max: 36.7W
  • Typical: 18.3W, Max: 34.1W
  • Typical: 16.8W, Max: 36.7W
  • Typical: 18.3W, Max: 34.1W
Power Requirement
Power Adapter
  • AC to DC, 230W (Optional)
  • AC to DC, 230W (Optional)
  • AC to DC, 230W (Optional)
  • AC to DC, 230W (Optional)
Mechanical
Construction
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
Dimensions
  • 260 x 60 x 145 mm
  • 260 x 60 x 145 mm
  • 260 x 60 x 145 mm
  • 260 x 60 x 145 mm
Mounting
  • Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional)
  • Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional)
  • Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional)
  • Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional)
Weight
  • 2.7 kg (6 lb)
  • 2.7 kg (6 lb)
  • 2.7 kg (6 lb)
  • 2.7 kg (6 lb)
Environment
Operational Temperature
  • -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
  • -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
  • -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
  • -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
Storage Temperature
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
Vibration During Operation
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
  • 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
Shock During Operation
  • 30G, IEC60068-2-27, half sine, 11m duration
  • 30G, IEC60068-2-27, half sine, 11m duration
  • 30G, IEC60068-2-27, half sine, 11m duration
  • 30G, IEC60068-2-27, half sine, 11m duration
Certification
Safety Certifications
  • UL, CB, CCC
  • UL, CB, CCC
  • UL, CB, CCC
  • UL, CB, CCC
EMC
  • CE/FCC Class B, CCC, BSMI, UKCA
  • CE/FCC Class B, CCC, BSMI, UKCA
  • CE/FCC Class B, CCC, BSMI, UKCA
  • CE/FCC Class B, CCC, BSMI, UKCA
