MIOe扩展卡

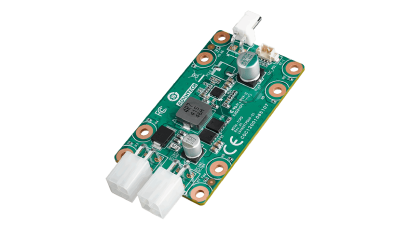

MIOe-TCPD

External module to enable SBC’s USB-C port with PD max.100W

  • External module to enable SBC’s USB-C port with PD max.100W
  • USB-C PD 3.0 specification
  • Support output voltages 20V/15V/12V/9V @5A
  • Supports wide temperature -40~85° C
  • Compatible SBC: MIO-5379

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • External module to enable SBC’s USB-C port with PD max.100W

规格

Power
Output Power Voltage
  • 20V/15V/12V/9V 5A
USB Power Delivery Standard
  • PD 3.0
Max. Power
  • 100watt
Input Voltage
  • 12 ~ 24 VDC
Compatibility
Compatible SBC
  • MIO-5379
Environment
Temperature (Operating)
  • -40 ~ 85 °C (-40 ~ 185 °F) with 0.7m/s airflow
Temperature (Storage)
  • - 40 ~ 85° C (-40 ~185° F)
Relative Humidity
  • 40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating
Vibration Resistance
  • 3.5 Grms
Certifications
EMC
  • CE, FCC class B
Mechanical
Dimensions
  • 70 x 40 mm

特点和优势

Meeting Diverse Needs with Minimal Deployment Effort

Meeting Diverse Needs with Minimal Deployment Effort

When integrated with Advantech single board computers, these extension modules provide extensive functionality, streamline system development, and ensure consistent future-ready designs — all without taking up extra space!

  • Maximize Design Flexibility
  • Standard Interface Technology
  • Accelerate Time-to-Market
