MIOe扩展卡

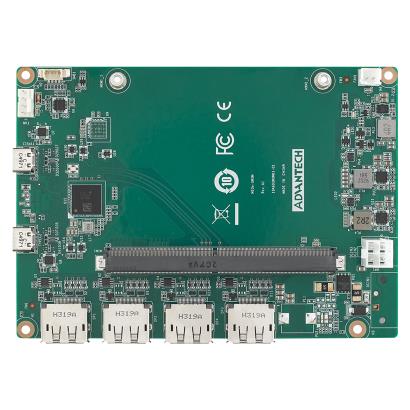

MIOe-UMXM

USB-4转MXM GPU载板卡

  • MXM 3.1 Type A、Type B兼容（PCIE Gen3 x4）
  • 支持NVIDIA Quadro 和Intel Arc嵌入式GPU
  • 4 x DP1.4支持多达4个显示输出
  • 2个USB4接口，支持DP交替模式
  • 4 x DP1.4支持多达4个显示输出
  • 支持MXM GPU冷却器智能风扇控制

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • USB-4转MXM GPU载板卡

规格

Expansion
MXM Modules
  • Type A
  • Type A, B, B+
Power
Power Supply Voltage
  • 12 VDC ~ 24 VDC
  • 12 VDC
Connector
  • 2-pin phoenix head
  • ATX 2x2p
MXM Power Requirement
  • Supply up to 60W TGP MXM
  • Supply up to 115W TGP MXM
Internal I/O
SMBus
  • 1
  • 1
FAN
  • 1 x 4-Wire Smart Fan, 12V@1A
  • 1 x 4-Wire Smart Fan, 12V@1A
I/O
DisplayPort
  • 4
  • 4
Environment
Operational Temperature
  • 0 ~ 55° C (32 ~ 131° F)
  • 0 ~ 50° C (32 ~ 122° F) w/ 0.7m/s airflow
Humidity
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Vibration Resistance
  • 3.5 Grm (Non-Operation Mode)
  • 3.5 Grm (Non-Operation Mode)
Certification
EMC
  • CE, FCC Class B
  • CE, FCC Class B
Mechanical
Dimensions
  • 140 x 100 mm
  • 140 x 100 mm
Compatibility
Compatible SBC (USB4 Host)
  • MIO-5377, MIO-5377R, MIO-5379, AFE-R360, ASR-A502
  • MIO-5377, MIO-5377R, MIO-5379, AFE-R360, ASR-A502
Compatible MXM Modules
  • SKY-MXM-A1000-4SDA
  • SKY-MXM-A1000-4SDA ; SKY-MXM-A4500-6SDA

特点和优势

Meeting Diverse Needs with Minimal Deployment Effort

Meeting Diverse Needs with Minimal Deployment Effort

When integrated with Advantech single board computers, these extension modules provide extensive functionality, streamline system development, and ensure consistent future-ready designs — all without taking up extra space!

  • Maximize Design Flexibility
  • Standard Interface Technology
  • Accelerate Time-to-Market
