英特尔ATOM凌动系列主板

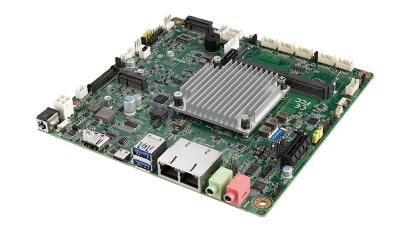

AIMB-219

板载Intel® ATOM Alder Lake N系列处理器。支持独立三显，超薄紧凑，无风扇设计，性能强劲，并且支持宽温。

  • 板载Intel® ATOM Alder Lake N系列 双核/四核/八核处理器
  • 1 x 260pin SO-DIMM，最高可达16GB DDR4 3200MHz SDRAM
  • 独立三显：DP/HDMI/LVDS/eDP(可选)
  • 支持1 x PCIe ×1，2 x M.2(B+E Key)，6 x COM，3 x USB 3.2 Gen2，5 x USB 2.0，2 x 千兆网口，1 x SIM卡槽
  • 12V DC-in电源输入
  • 支持-20℃~70℃宽温

技术资源链接：

产品型录 技术文件下载
  • 板载Intel® ATOM Alder Lake N系列处理器。支持独立三显，超薄紧凑，无风扇设计，性能强劲，并且支持宽温。

规格

Processor
CPU
  • i3-N305
  • N97
  • N200
  • N50
  • N97
Core Number
  • 8
  • 4
  • 4
  • 2
  • 8
  • 2
  • 4
  • 4
  • 2
  • 4
Base Frequency
  • 1.8GHz
  • 2.0 GHz
  • 1 GHz
  • 1 GHz
  • 1.3GHz
  • 2.0 GHz
  • 1.5 GHz
  • 1.5 GHz
  • 1 GHz
  • 2.0 GHz
TDP
  • 15W
  • 12W
  • 6W
  • 6W
  • 12W
  • 6W
  • 12W
BIOS
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
Expansion
PCle x1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
Slots
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
  • 1 x M.2 B key + 1 x M.2 E key
Memory
Technology
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
  • Single channel DDR4 3200 MT/s
Max. Capacity
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
  • 16 GB
Socket
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
  • 1 x 260-Pin SO-DIMM
Graphics
Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
HDMI
  • 1 x HDMI 2.1 TMDS
  • 1 x HDMI FHD
  • 1 x HDMI FHD
  • 1 x HDMI FHD
  • 1 x HDMI 2.1 TMDS
  • 1 x HDMI FHD
  • 1 x HDMI FHD
  • 1 x HDMI FHD
  • 1 x HDMI FHD
  • 1 x HDMI FHD
DP
  • 1 x DP 1.4a (via USB Type-C)
  • 1 x DP 1.4a (via USB Type-C)
  • 1 x DP 1.4a (via USB Type-C)
  • N/A
  • 1 x DP 1.4a (via USB Type-C)
  • 1 x DP 1.4a (via USB Type-C)
  • 1 x DP 1.4a (via USB Type-C)
  • 1 x DP 1.4a (via USB Type-C)
  • N/A
  • 1 x DP 1.4a (via USB Type-C)
LVDS
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • N/A
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
  • N/A
  • 1 (default, up to 1920 x 1200 @ 60 Hz)
eDP
  • By Option, up to 4096 x 2304 @ 60 Hz
  • By Option, up to 4096 x 2304 @ 60 Hz
  • By Option, up to 4096 x 2304 @ 60 Hz
  • N/A
  • By Option, up to 4096 x 2304 @ 60 Hz
  • By Option, up to 4096 x 2304 @ 60 Hz
  • By Option, up to 4096 x 2304 @ 60 Hz
  • By Option, up to 4096 x 2304 @ 60 Hz
  • N/A
  • By Option, up to 4096 x 2304 @ 60 Hz
Multi Displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
  • Triple displays
Ethernet
LAN
  • 10/100/1000/2500 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000/2500 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
Controller
  • 2
  • 2
  • 2
  • 1
  • 2
  • 2
  • 2
  • 2
  • 1
  • 2
Connector
  • RJ45 x 2
  • RJ45 x 2
  • RJ45 x 2
  • RJ45 x 1
  • RJ45 x 2
  • RJ45 x 2
  • RJ45 x 2
  • RJ45 x 2
  • RJ45 x 1
  • RJ45 x 2
Audio
CODEC
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
Amplifier
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
  • Yes, 6W
SATA
Max. Transfer Rate
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
Channel
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
Rear I/O
DP
  • 1
  • 1
  • 1
  • N/A
  • 1
  • 1
  • 1
  • 1
  • N/A
  • 1
HDMI
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
Ethernet
  • 2
  • 2
  • 2
  • 1
  • 2
  • 2
  • 2
  • 2
  • 1
  • 2
USB
  • 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
  • 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
  • 2 x USB3.2 Gen2x1
  • 2 x USB3.2 Gen2x1
  • 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
  • 2 x USB3.2 Gen2x1
  • 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
  • 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
  • 2 x USB3.2 Gen2x1
  • 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
Audio
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
  • 1 (Line-Out, Mic-In)
Internal Connectors
USB
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 2 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 2 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
  • 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
LVDS/eDP
  • 1 (eDP colay with LVDS)
  • 1 (eDP colay with LVDS)
  • 1 (eDP colay with LVDS)
  • N/A
  • 1 (eDP colay with LVDS)
  • 1 (eDP colay with LVDS)
  • 1 (eDP colay with LVDS)
  • 1 (eDP colay with LVDS)
  • N/A
  • 1 (eDP colay with LVDS)
Serial
  • 6 (COM1~COM6 support RS-232. COM2 option RS-232/422/485)
  • 4
  • 4
  • 2
  • 6 (COM1~COM6 support RS-232. COM2 option RS-232/422/485)
  • 4
  • 4
  • 4
  • 2
  • 4
SATA
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
M.2
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
  • 1 x B-key (dimension: 2242/2280/3042), 1 x E-key (dimension: 2230)
GPIO
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
  • 8-bit
Watchdog Timer
Output
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
Interval
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
Power Requirement
Input Voltage
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
  • 12V DC-in
Connector Type
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
  • Internal ATX 20pin
Power Consumption
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
  • Max. 39.7 W
Environment
Temperature (Operating)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • -20 ~ 70° C
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
Temperature (Storage)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
Physical Characteristics
Dimensions (L x W)
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
  • 170 mm x 170 mm (6.69" x 6.69")
Embedded OS
OS Support
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
  • Win10/Ubuntu
