/EKI-7710E-2C_03_S20151118164144.png)

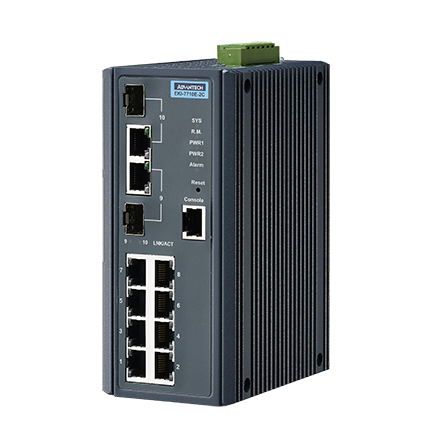

/EKI-7710E-2C_B20151118164158.png)
- 8个快速以太网端口，2个千兆光电组合端口
- SFP插槽可进行简单灵活的光纤扩展
- 冗余：千兆X-Ring（超高速自愈时间时间<20 ms），RSTP/STP(802.1w/1D)
- IXM技术支持快速布建
- 安全：IP/MAC和端口限制，DHCP服务器，IP访问列表，802.1X,SNMPv3
- 管理：网络，Telnet，串口控制，SNMP
- -40 ~75°C宽工作温度（EKI-7710E-2CI）
- 12-48v冗余直流电源输入，1个继电器输出
EKI-7710E-2C/2CI支持8个快速以太网端口和2个千兆端口组合.它可为用户提供丰富的端口以连接设备，且其嵌入的研华IXM技术，利于用户在短时间内完成快速部署并大大节省工程师的时间与成本。EKI-7710E系列同时支持NMS软件帮助IT管理者进行网络维护和故障预防。EKI-7710E系列支持研华冗余环网协议X-Ring，为您搭建可靠地工业网络，帮助用户轻松建立冗余以太网，具有小于 20ms 的超高速自愈时间。
.png)
规格 下载规格表
- Part Number
- 相关讯息
-
EKI-7710E-2C-AE
- Ethernet Standard
- Vibration
- Freefall
- Shock
- EMS
- EMI
- EMC
- Safety
- IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
- IEC 60068-2-6
- IEC 60068-2-32
- IEC 60068-2-27
- -
- CE, FCC Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- LVD IEC/EN 62368-1
- Temperature (Max. Operating)
- Temperature (Min. Operating)
- Relative Humidity
- Temperature (Operating Range)
- Humidity (Operating Range)
- Temperature (Storage Range)
- 60°C (140°F)
- -10°C (14°F)
- 10~95%
- -10 ~ 60°C (14 ~ 140°F)
- -
- -40 ~ 85°C (-40 ~ 185°F)
- RJ-45/SFP Combo Port Speed
- RJ-45/SFP Combo Port Number
- Fiber Port Optical Mode
- Fiber Transmission Speed
- Fiber Port Number
- RJ-45 Port Number
- Fiber Transmission Distance
- Fiber Port Connector Type
- Fiber Port Interface
- RJ-45 Transmission Distance
- Ethernet Standard
- RJ-45 Port Connector Type
- RJ-45 Transmission Speed
- -
- 2
- -
- -
- 2
- 10
- Up to 110 km
- SFP cage
- SFP
- 100 m
- -
- RJ-45
- 10/100/1000 Mbps
- Mounting (Panel)
- Enclosure (Plastic)
- Mounting (Pole Mount)
- Mounting (Stack)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (DIN-rail)
- Weight
- IP Rating
- Dimensions (W x H x D)
- -
- -
- -
- -
- Yes
- -
- Yes
- 1.1 kg
- IP30
- 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
- Method
- Time
- Telcordia(Relax), GB
- 858,835 hours
- Support PoE
- PoE Output
- PoE Budget
- PoE Port Number
- -
- -
- -
- -
- Redundant Dual Inputs
- Power Input (Battery)
- Power Input (PoE)
- Power Input (AC)
- Power Operating Current
- Power Connector Type
- Power Input (DC)
- Power Consumption
- -
- -
- -
- -
- 0.25A @ 48VDC (system)
- 6-pin removable screw terminal (power & relay)
- 12 ~ 48 VDC
- 12.1W (system)
- Reverse Polarity
- Overload Current
- Present
- -
- Jumbo Frame
- Switch Fabric Speed
- Packet Buffer Size
- MAC Table Size
- 9,216 bytes
- 5.6Gbps
- 4.1M bit
- 8K
- Warranty Period
- 5 years
Certification
-
Ethernet Standard
EKI-7710E-2C-AE IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w -
Vibration
EKI-7710E-2C-AE IEC 60068-2-6 -
Freefall
EKI-7710E-2C-AE IEC 60068-2-32 -
Shock
EKI-7710E-2C-AE IEC 60068-2-27 -
EMS
EKI-7710E-2C-AE - -
EMI
EKI-7710E-2C-AE CE, FCC Class A -
EMC
EKI-7710E-2C-AE EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) -
Safety
EKI-7710E-2C-AE LVD IEC/EN 62368-1
Environment
-
Temperature (Max. Operating)
EKI-7710E-2C-AE 60°C (140°F) -
Temperature (Min. Operating)
EKI-7710E-2C-AE -10°C (14°F) -
Relative Humidity
EKI-7710E-2C-AE 10~95% -
Temperature (Operating Range)
EKI-7710E-2C-AE -10 ~ 60°C (14 ~ 140°F) -
Humidity (Operating Range)
EKI-7710E-2C-AE - -
Temperature (Storage Range)
EKI-7710E-2C-AE -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
-
RJ-45/SFP Combo Port Speed
EKI-7710E-2C-AE - -
RJ-45/SFP Combo Port Number
EKI-7710E-2C-AE 2 -
Fiber Port Optical Mode
EKI-7710E-2C-AE - -
Fiber Transmission Speed
EKI-7710E-2C-AE - -
Fiber Port Number
EKI-7710E-2C-AE 2 -
RJ-45 Port Number
EKI-7710E-2C-AE 10 -
Fiber Transmission Distance
EKI-7710E-2C-AE Up to 110 km -
Fiber Port Connector Type
EKI-7710E-2C-AE SFP cage -
Fiber Port Interface
EKI-7710E-2C-AE SFP -
RJ-45 Transmission Distance
EKI-7710E-2C-AE 100 m -
Ethernet Standard
EKI-7710E-2C-AE - -
RJ-45 Port Connector Type
EKI-7710E-2C-AE RJ-45 -
RJ-45 Transmission Speed
EKI-7710E-2C-AE 10/100/1000 Mbps
Mechanism
-
Mounting (Panel)
EKI-7710E-2C-AE - -
Enclosure (Plastic)
EKI-7710E-2C-AE - -
Mounting (Pole Mount)
EKI-7710E-2C-AE - -
Mounting (Stack)
EKI-7710E-2C-AE - -
Mounting (Wall)
EKI-7710E-2C-AE Yes -
Mounting (Rack Mount)
EKI-7710E-2C-AE - -
Mounting (DIN-rail)
EKI-7710E-2C-AE Yes -
Weight
EKI-7710E-2C-AE 1.1 kg -
IP Rating
EKI-7710E-2C-AE IP30 -
Dimensions (W x H x D)
EKI-7710E-2C-AE 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
MTBF
-
Method
EKI-7710E-2C-AE Telcordia(Relax), GB -
Time
EKI-7710E-2C-AE 858,835 hours
PoE Information
-
Support PoE
EKI-7710E-2C-AE - -
PoE Output
EKI-7710E-2C-AE - -
PoE Budget
EKI-7710E-2C-AE - -
PoE Port Number
EKI-7710E-2C-AE -
Power
-
Redundant Dual Inputs
EKI-7710E-2C-AE - -
Power Input (Battery)
EKI-7710E-2C-AE - -
Power Input (PoE)
EKI-7710E-2C-AE - -
Power Input (AC)
EKI-7710E-2C-AE - -
Power Operating Current
EKI-7710E-2C-AE 0.25A @ 48VDC (system) -
Power Connector Type
EKI-7710E-2C-AE 6-pin removable screw terminal (power & relay) -
Power Input (DC)
EKI-7710E-2C-AE 12 ~ 48 VDC -
Power Consumption
EKI-7710E-2C-AE 12.1W (system)
Protection
-
Reverse Polarity
EKI-7710E-2C-AE Present -
Overload Current
EKI-7710E-2C-AE -
Switch Properties
-
Jumbo Frame
EKI-7710E-2C-AE 9,216 bytes -
Switch Fabric Speed
EKI-7710E-2C-AE 5.6Gbps -
Packet Buffer Size
EKI-7710E-2C-AE 4.1M bit -
MAC Table Size
EKI-7710E-2C-AE 8K
Warranty
-
Warranty Period
EKI-7710E-2C-AE 5 years
