网管型工业以太网交换机

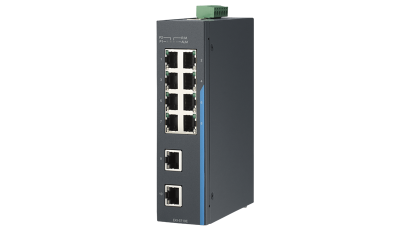

EKI-5710E-I

10百兆端口网管型工业以太网交换机

  • 冗余：X-Ring Pro（超高速恢复时间，<20ms），RSTP/STP（802.1w/1D）
  • IXM功能实现快速部署
  • 包含802.1X、ACL、RADIUS、TACACS+、MAB身份验证、SNMPv3、HTTPS、SSH和SFTP的安全包
  • 管理：SNMP v1/v2c/v3、WEB、Telnet、标准MIB、私有MIB
  • 支持NMS，便于远程监控和管理网络
  • 体积小巧，安装方便

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 10百兆端口网管型工业以太网交换机

规格

Certification
Ethernet Standard
  • IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
Vibration
  • IEC 60068-2-6
Freefall
  • IEC 60068-2-32
Shock
  • IEC 60068-2-27
EMI
  • CE, FCC Class A
EMC
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
Safety
  • EN 62368-1
Security
  • IEC 62443-4-2 SL2
Environment
Temperature (Max. Operating)
  • 75°C (167°F)
Temperature (Min. Operating)
  • -40°C (-40°F)
Relative Humidity
  • 10~95%
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45 Port Number
  • 10
RJ-45 Transmission Distance
  • 100 m
RJ-45 Port Connector Type
  • RJ-45
RJ-45 Transmission Speed
  • 10/100 Mbps
Mechanism
Mounting (Wall)
  • Yes
Mounting (DIN-rail)
  • Yes
IP Rating
  • IP30
Power
Power Input (DC)
  • 12 ~ 48 VDC
Power Consumption
  • 6W
Protection
Reverse Polarity
  • Present
Switch Properties
Switch Fabric Speed
  • 2Gbps
MAC Table Size
  • 8K
Warranty
Warranty Period
  • 5 years

特点和优势

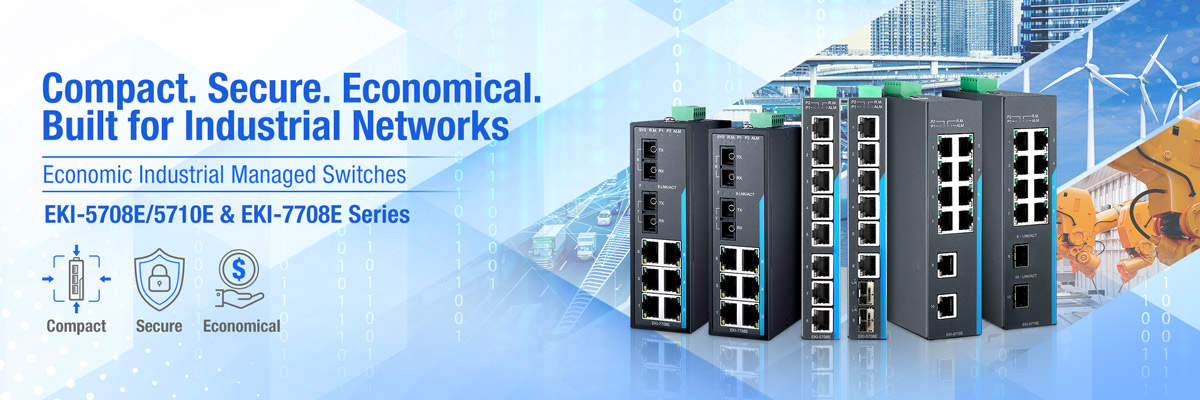

Economic Industrial Managed Switches EKI-5708E/5710E & EKI-7708E Series

The EKI-5708E, 5710E, and EKI-7708E series deliver reliable, high-speed industrial networking with essential Layer 2 management functions within a practical budget. Offering 8- and 10-port configurations with a mix of Gigabit and Fast Ethernet options, these compact switches support both copper and fiber optic connections for flexible, seamless integration. Designed with a rugged industrial-grade build and compact form factor, they’re ideal for harsh, space-limited environments where dependable performance and cost efficiency matter most.

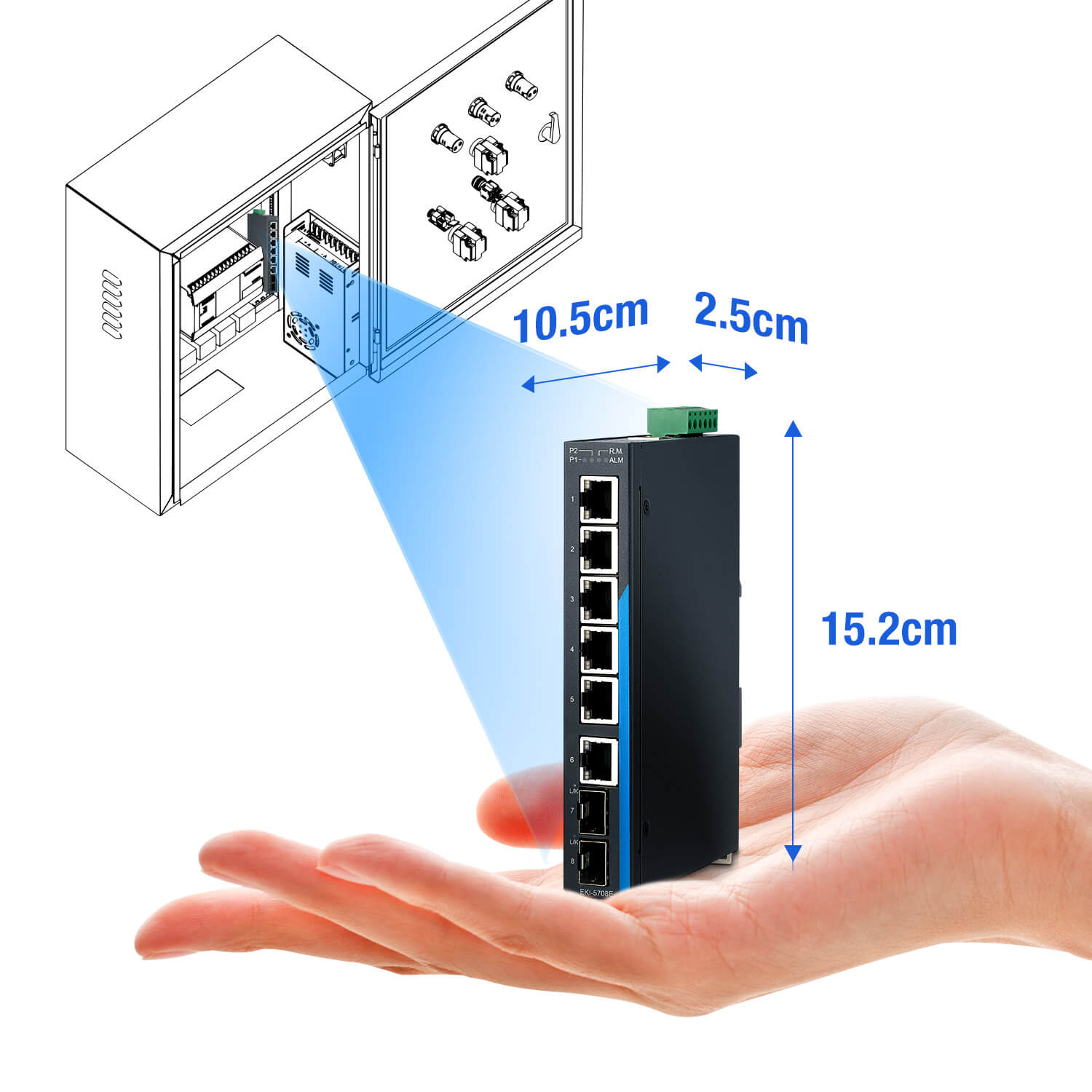

Ultra-Compact Size

The EKI-5708E, 5710E, and EKI-7708 series feature an ultra-compact design that saves valuable cabinet space, allowing IT/OT engineers to install more devices with ease. This space-efficient build eliminates installation constraints and helps reduce expansion costs for growing industrial networks.

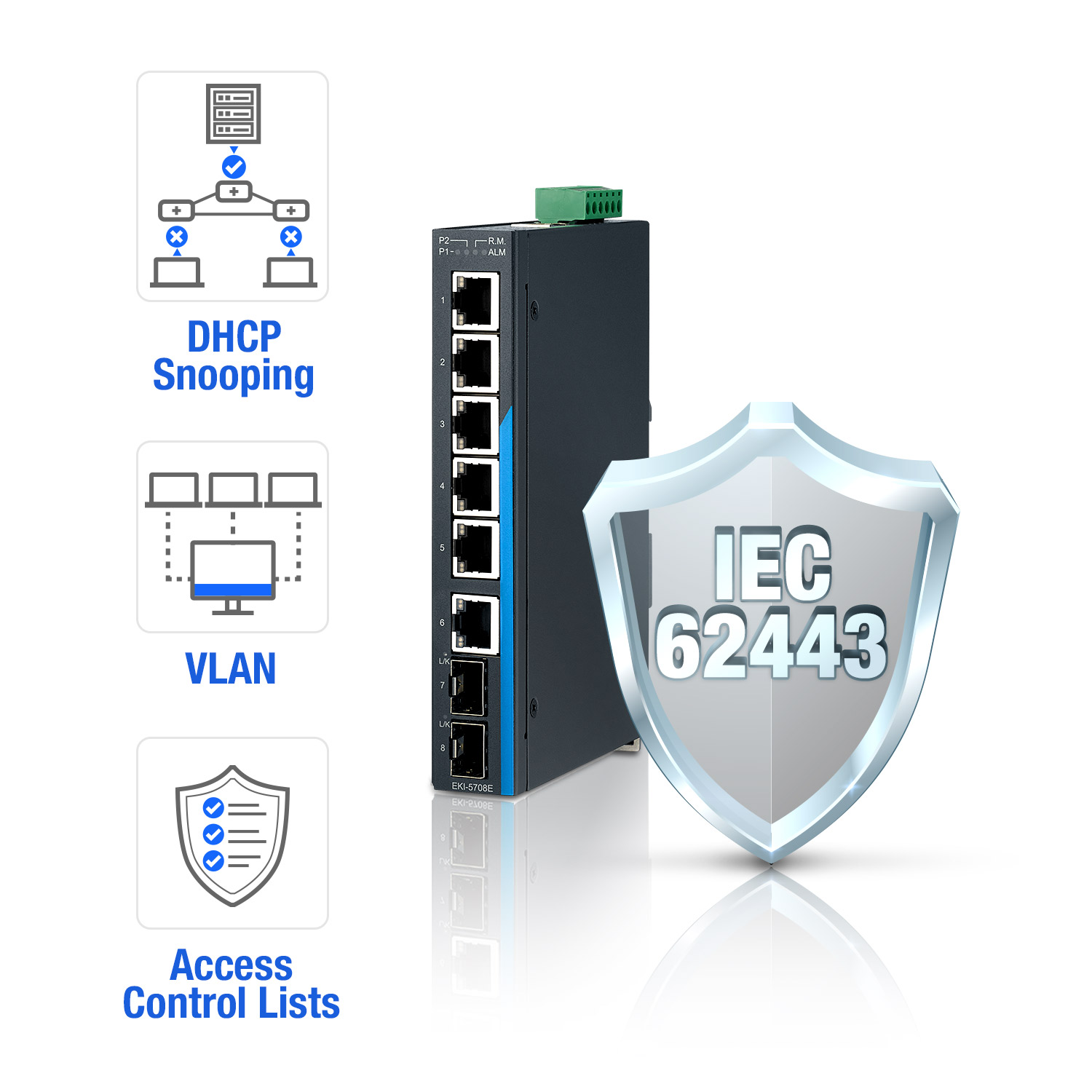

IEC 62443-4-2 Certified

IEC 62443-4-2 certified for advanced device-level protection. Safeguard industrial networks with VLAN, ACL, RADIUS, and 802.1X, defending against unauthorized access and internal threats.

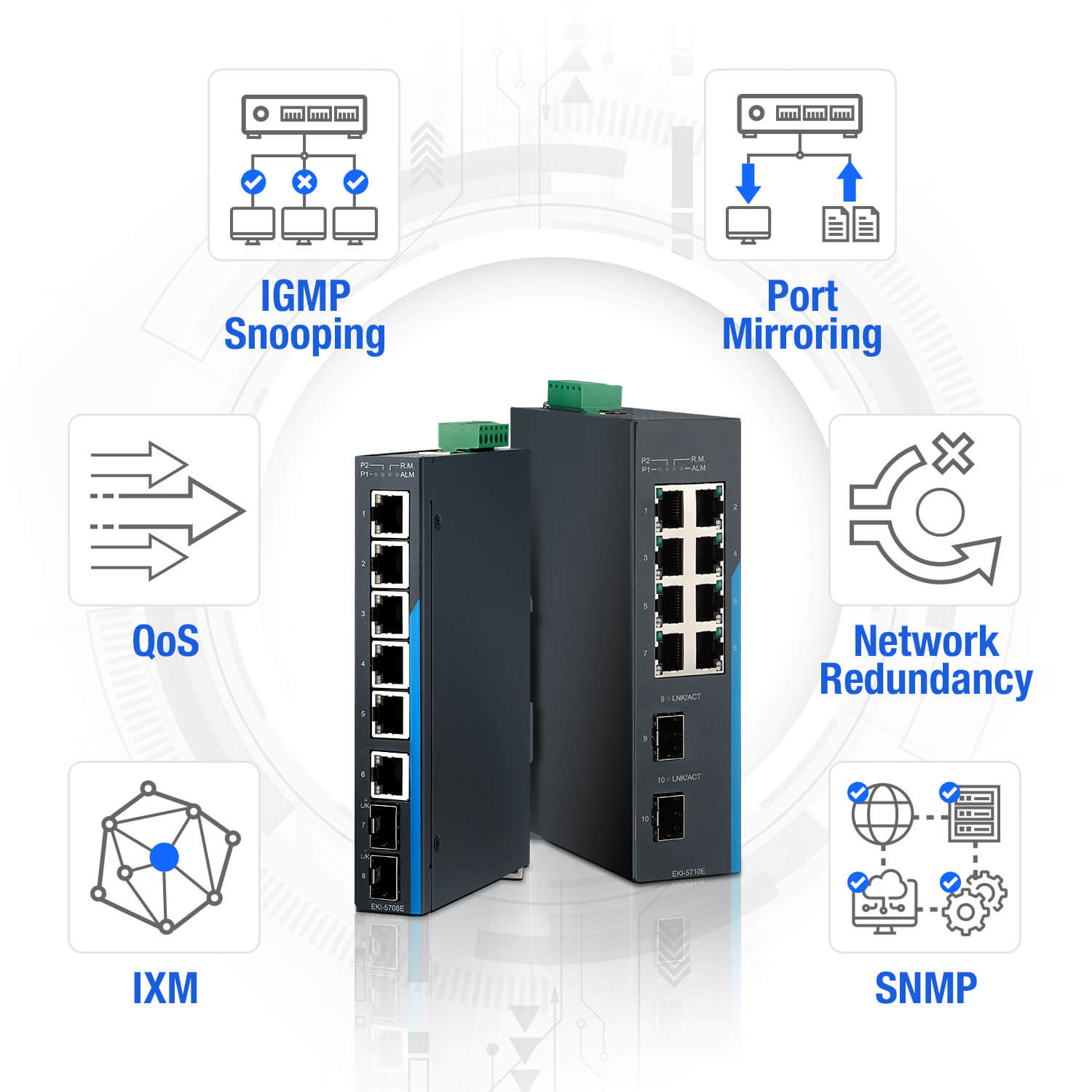

Full Layer 2 Capability

Full Layer 2 Capability

Offers comprehensive Layer 2 features like VLAN, QoS, IGMP Snooping, and Port Security, paired with advanced cybersecurity protections including DHCP Snooping, ACL, 802.1X, RADIUS, and MAB. Supports fast redundancy with X-Ring (under 20ms, up to 250 devices), RSTP, and STP, while enabling remote monitoring via SNMP and rapid mass deployment through IXM.

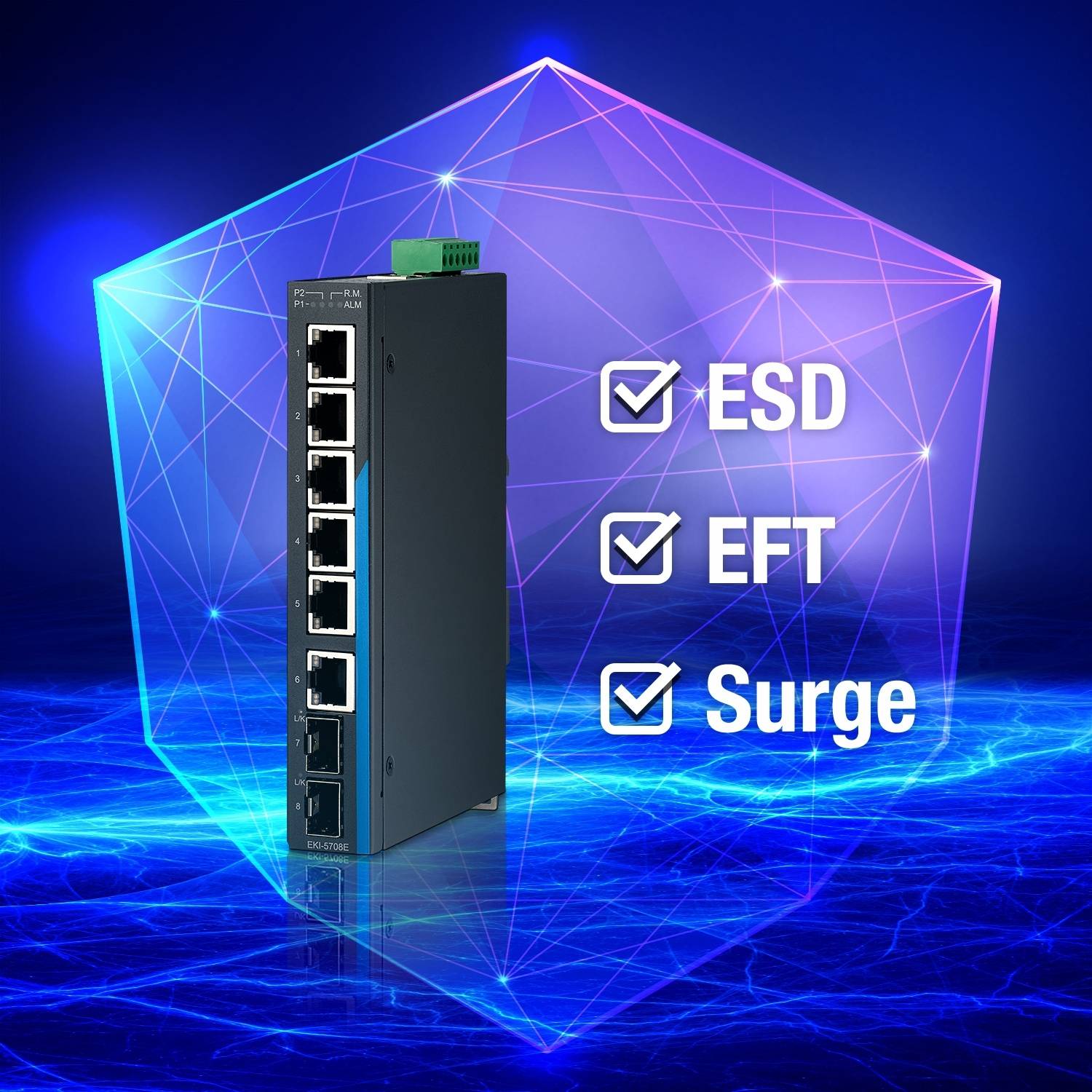

EMC Level 4 – Built for Extreme Environments

EMC Level 4 – Built for Extreme Environments

Engineered with the highest level of electromagnetic immunity, this solution withstands strong interference from industrial equipment or lightning surges. Ideal for intelligent transportation system, wind power market, and factory automation, it ensures reliable operation while minimizing failure rates and maintenance costs.

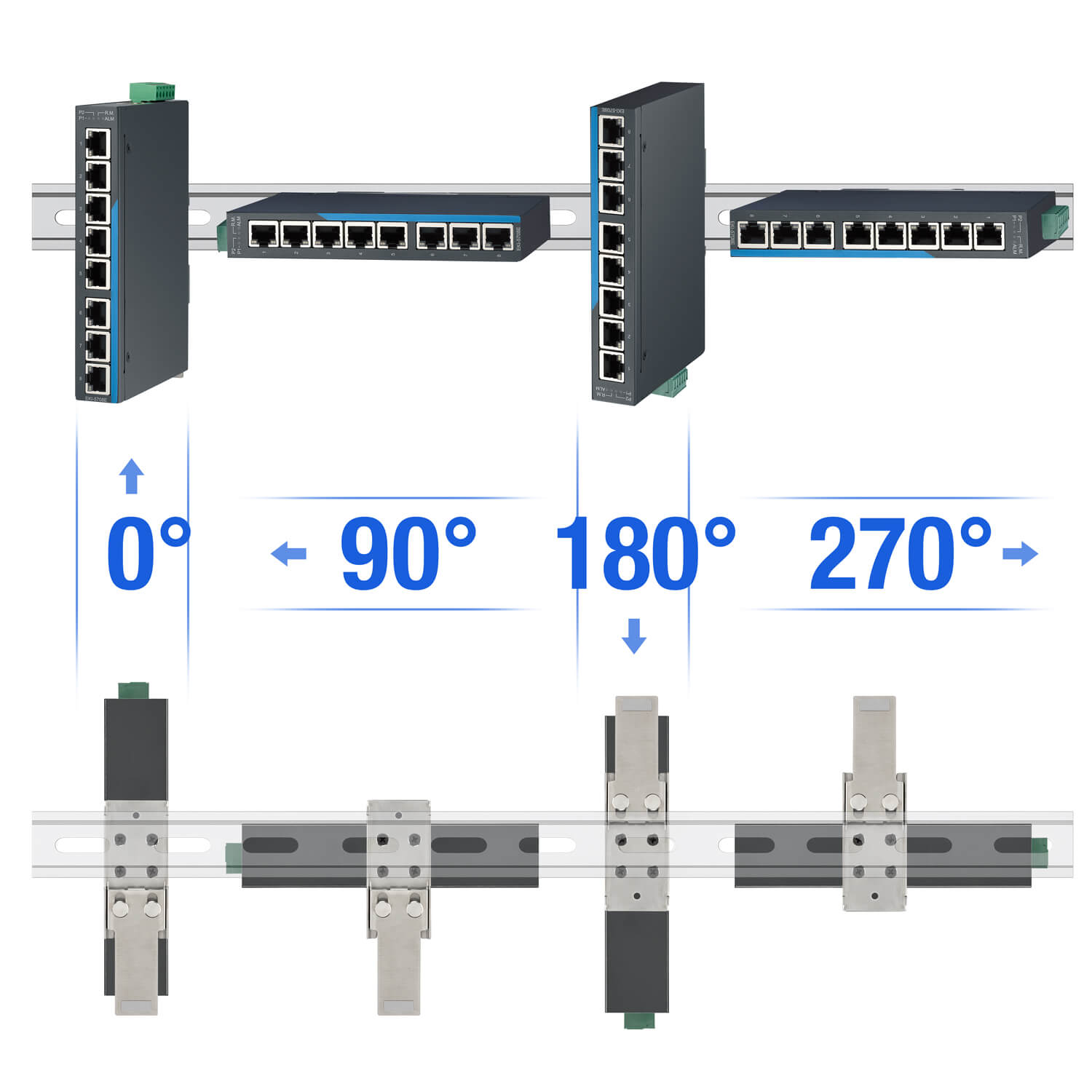

Flexible Installation, Unlimited Possibilities

Flexible Installation, Unlimited Possibilities

The EKI-5708E and EKI-5710E series series supports multi-angle DIN-rail mounting (0°, 90°, 180°, 270°), simplifying setup and removal. This flexible design eliminates installation hassles, saves time, and lets users position the switch to best fit their unique space and workflow needs.
