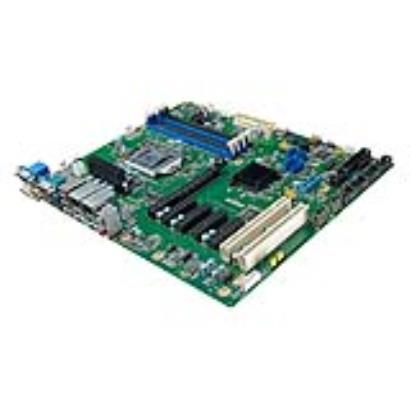

AIMB-787

LGA1200 10代 Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX，支持DP/DVI/VGA, DDR4, USB 3.2, M.2

  • Intel® 10代Core™ i9/i7/i5/i3 & Pentium®/Celeron®处理器 Q470E 芯片组
  • 4个DIMM插槽，最大128 GB DDR4 2933
  • 三显DP/DVI-D/VGA 与双GbE LAN
  • M.2, SATA RAID 0, 1, 5, 10, USB 3.2
  • 支持 Intel vPro, AMT & TPM技术
  • 研华iBMC 1.2 remote out-of-band power management solution on DeviceOn
  • 注1:dTPM 2.0模块是启用Intel vPro和TPM技术所必需的。
  • 注2：不支持传统平台。
  • 注3：英特尔®平台信任技术（英特尔®PTT）已为Windows 11做好准备。

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • LGA1200 10代 Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX，支持DP/DVI/VGA, DDR4, USB 3.2, M.2

规格

Processor System
CPU
  • 10th Gen Intel® Core™ Processors
  • 10th Gen Intel® Core™ Processors
Socket Q'ty
  • 1 x LGA1200
  • 1 x LGA1200
TDP
  • Up to 65 W
  • Up to 65 W
Base Frequency
  • 2.8GHz
  • Up to 3.8 GHz
Core Number
  • Up to 10
  • Up to 10
L3 Cache
  • Up to 20 MB
  • Up to 20 MB
Chipset
  • Intel Q470E/H420E
  • Intel Q470E/H420E
BIOS
  • AMI 256 Mbit SPI Flash
  • AMI 256 Mbit SPI Flash
Integrated Graphics
  • Yes
  • Yes
Expansion Interface
PCI Express x 16
  • 1 (Gen 3)
  • 1 (Gen 3)
PCI Express x 4
  • 4 (Gen 3)
  • 4 (Gen 3)
PCI
  • 2
  • 2
Memory
Type and Speed
  • Dual-Channel DDR4 2666/2933 MHz
  • Dual-Channel DDR4 2666/2933 MHz
ECC Support
  • -
  • -
Slots
  • 4 x 288-pin DIMM
  • 4 x 288-pin DIMM
NVMe M.2
  • M.2 2280, M-Key
  • M.2 2280, M-Key
LAN
Controller
  • LAN1: Intel® I219-LM, LAN2: Intel® I210-AT
  • LAN1: Intel® I219-LM, LAN2: Intel® I210-AT
Interface
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
Rear I/O Interface
VGA
  • 1
  • 1
Display
  • 1
  • 1
Ethernet
  • 2
  • 2
USB
  • 14 (6 USB 3.2 and 8 USB 2.0)
  • 14 (6 USB 3.2 and 8 USB 2.0)
Audio
  • 2 (Mic-in, Line-out)
  • 2 (Mic-in, Line-out)
Serial
  • 6
  • 6
WatchDog Timer
Output
  • System Reset
  • System Reset
Interval
  • Programmable 1~255 sec
  • Programmable 1~255 sec
Environment
Operating Temperature
  • 0 ~ 60 °C (32 ~ 140 °F)
  • 0 ~ 60 °C (32 ~ 140 °F)
Non-Operational Temperature
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
Operating Humidity
  • 95% @ 40 °C (Non-condensing)
  • 95% @ 40 °C (Non-condensing)
Non-Operating Humidity (Non-condensing)
  • 95% RH @ 60 °C
  • 95% RH @ 60 °C
Physical Characteristics
Dimension (L x H)
  • 304.8 x 244 mm (12" x 9.6")
  • 304.8 x 244 mm (12" x 9.6")
